High-powered laser cutting for advanced hobbyists
The 55W CO2 laser delivers powerful, precise cuts—slicing 0.71" basswood and 0.79" acrylic (even transparent) with ease. It’s 500% faster than diode lasers, minimizing edge blackening. With the largest bed size in desktop lasers and up to 118" AutoPassthrough, it's ideal for large-scale projects. It also engraves on wood, acrylic, leather, glass, and metal directly.
Features
-

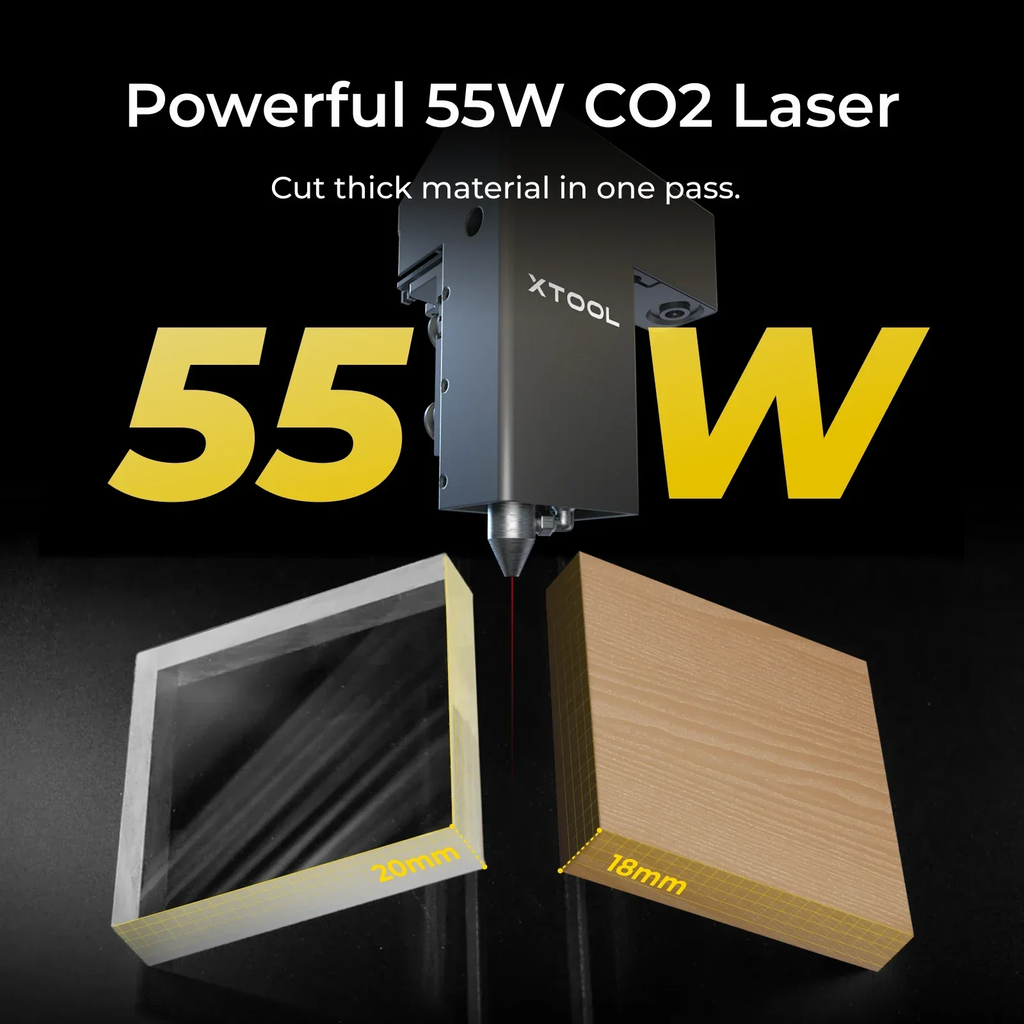

55W Power: 500% faster than 40W diode laser machines when cutting 20mm acrylic & 18mm wood in one pass.
-

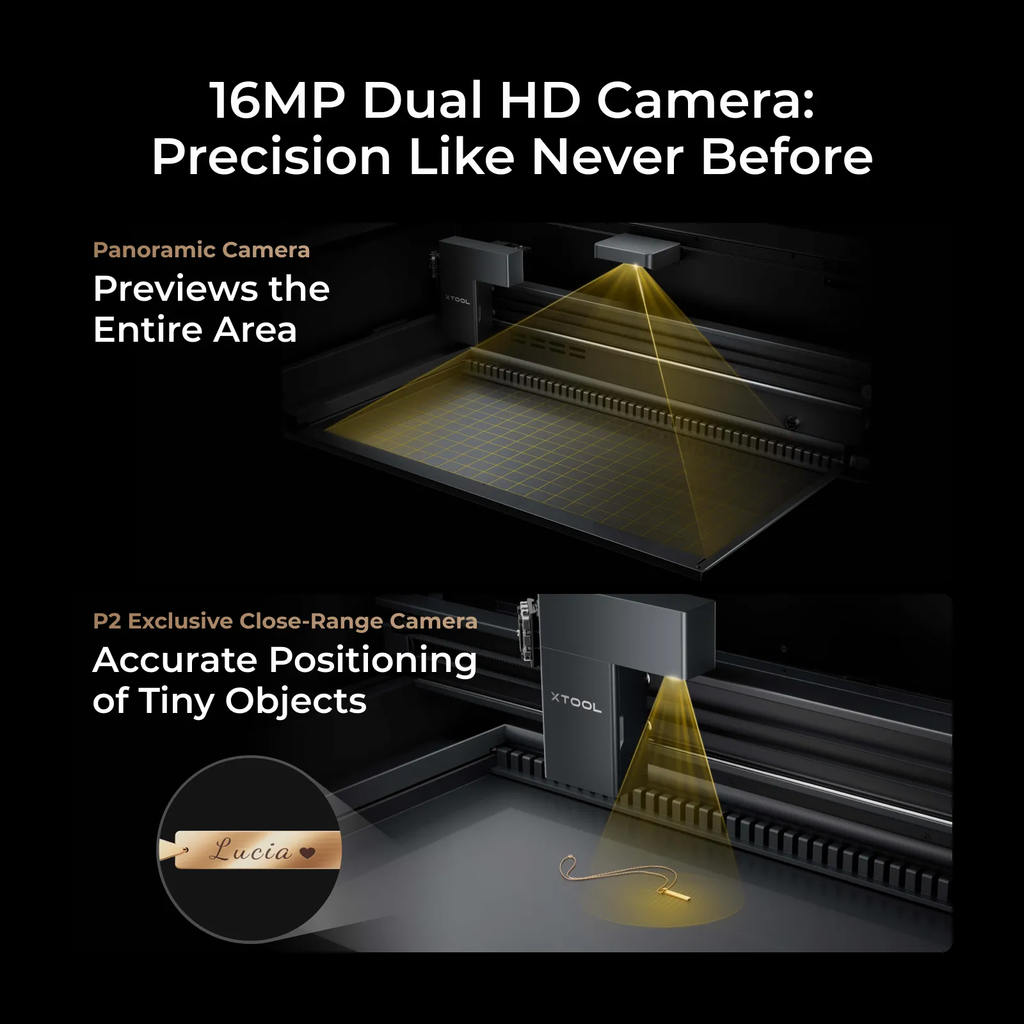

16MP Dual HD Camera: preview your design in real-time and spot tiny details, ensuring error-free results.
-

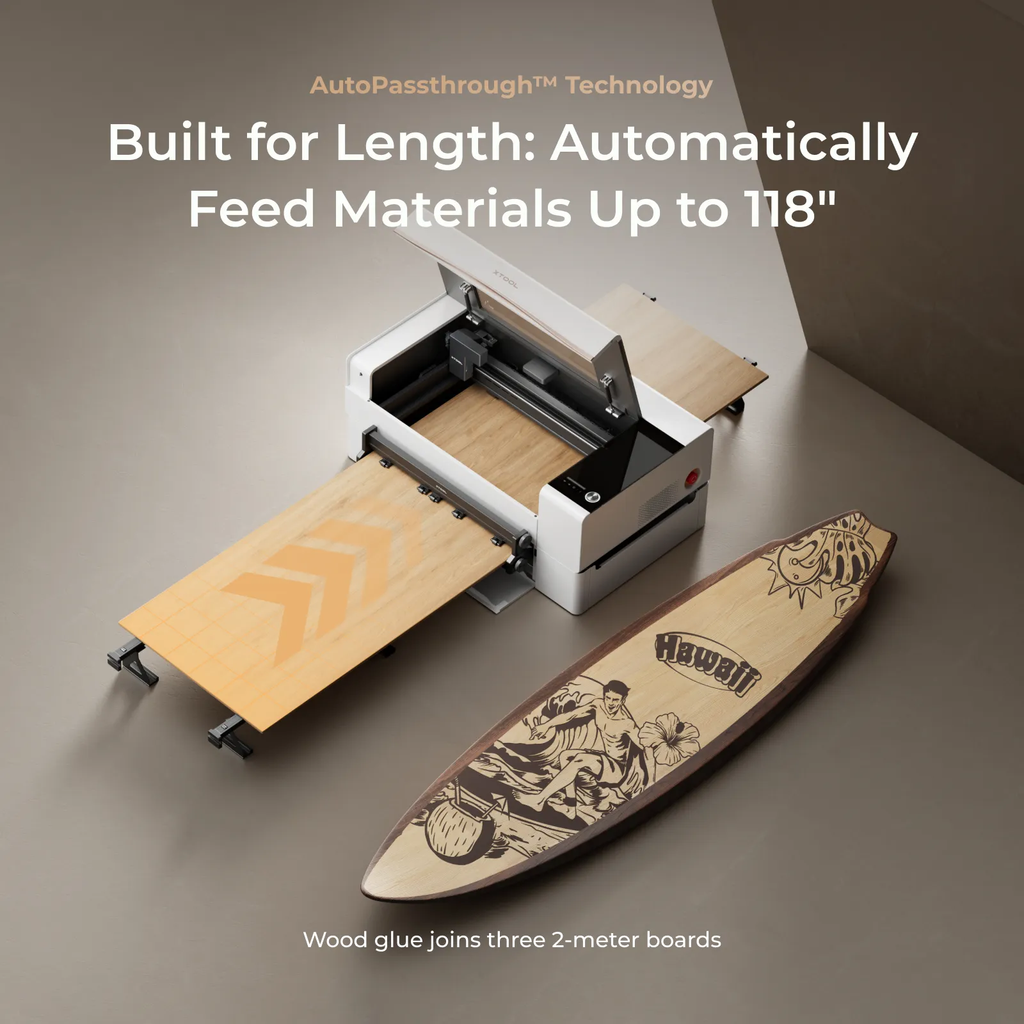

AutoPassthrough™: Automatically processes materials up to 118'' long for larger projects.
-
3D Curve™ Engraving: Seamlessly engrave on curved surfaces.
-
Distimaster™ Ranging System: 100% autofocus and distance measurement precision within 0.001”, ensuring accurate cut-through every time.
Benefits
-
Work on larger projects: with its large bed size (23.6” x 12”), AutoPassthrough™ feature, and high speed this laser is perfect for larger projects and materials
-
Variety of applications: great for wood, jewelry, signmaking, and more. Plus, can cut acrylic in any color!
-
Ease of use: Simply place the material, press the button, and admire your work! Plus, xTool’s software makes it easy to create stunning designs with no design experience.
-
Prioritizing safety: Auto-lock, emergency stop, enclosed design, warning systems, and excellent smoke exhaust system
What's Included

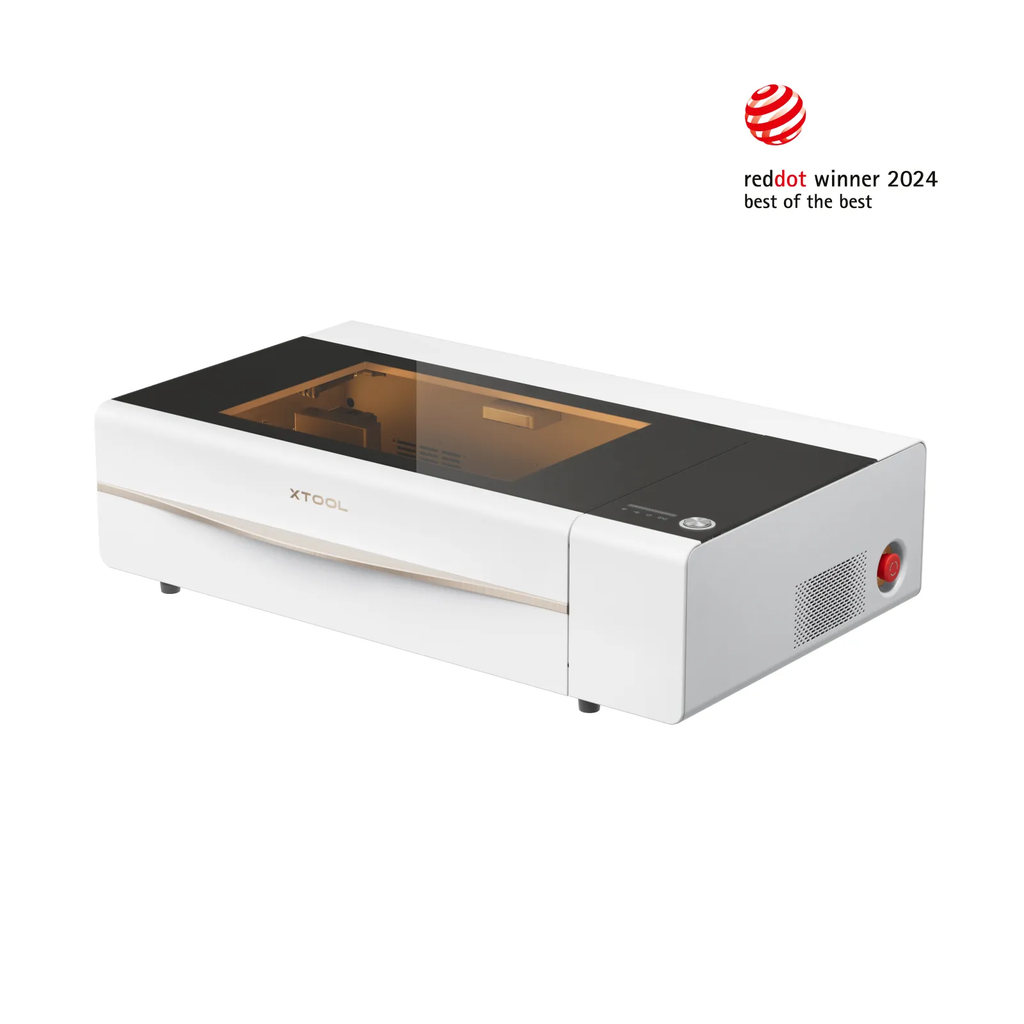

- 1*xTool P2 Laser Cutter
- 1*46 USB data cable (type-C)
- 5*3.5mm Cardboard
- 1*Funnel
- 1*Antifreeze
- 1*L-shaped wrench
- 1*Screwdriver
- 4*Basswood Plywood 3mm
- 1*Exhaust pipe assembly
- 1*Power cord
- 2*Transparent acrylic
- 1*Quick Start Guide
- 1*Instructions for use
- 1*xTool Safety Set with Sensors V1.5
Specifications
Class IV vs. Class I - Differences in Safety
Safety Class |
Class I |
Class IV |
Who it's great for |
Users prioritizing safety over efficiency (ie: Schools) |
Most users |
Lid open detection |
✓ |
X |
Base plate detection |
Operation only allowed/started if base plate is installed |
X |
Cylinder engraving |
Up to 42mm diameter |
Up to 180mm diameter |
Slide-through door |
X |
✓ |
Feeding accessories |
X |
✓ |
Machine Specifications
-
Rated Power: 55W(CO₂ Glass Laser Tube)
-
Product Size: 39.4"×25.1"×10.6" (1000×639×268mm)
-
Product Weight: 45KG
-
Max. Carving Speed: 600mm/s
-
Processing Precision: 0.01mm
-
Z-axis Movement: 3"(75mm)
-
Bed Size: 26.7''×14.1''(680x360mm)
-
Working Space: 23.6"×12" (600×305mm)
-
Max. Workpiece Height: With tray 2.5"(64mm), Without tray 2.7"(71mm), With riser base 8.5"(215mm)
-
Rotary engraving diameter: With riser base 0-180mm, Without riser base 3-50mm
-
Operating Ambient Temperature*: 10-30°C (10-86°F)
-
Storage Temperature*: 10-45°C (50-113°F)
- *If the temperature drops below 10°C (50°F), please add antifreeze under the guidance in the user manual.
AI Camera Specifications
-
Camera: Panoramic camera + close-range camera
-
Number of Pixels (Effective): 16MP×2
-
Vision Precision: 0.3mm
-
Image Resolution: 1000DPI
-
Focus Mode: Autofocus

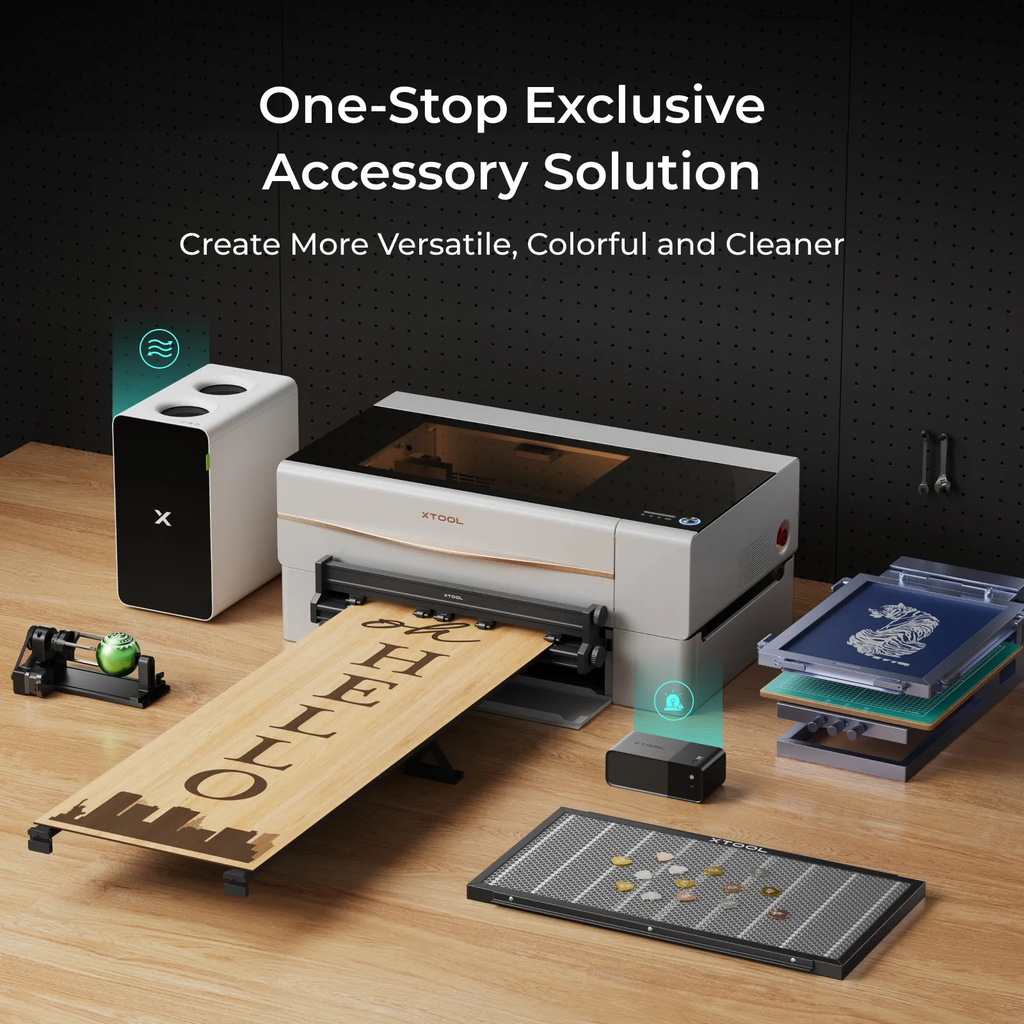

Accessory Specifications
-
Water-cooling System Capacity: 1.4L(0.37gal)
-
Air Assist (adjustable): 15-150 kPa
-
Exhaust Fan: 145CFM
Software and Connection Specifications
-
Operating Systems: Android / iOS / iPad / Windows / MacOS
-
Control Software: xTool Creative Space / LightBurn
-
Supported File Types: SVG, DXF, JPG, JPEG, PNG, BMP
-
Connection / Transmission: Wi-Fi, USB, Ethernet
