High-Volume Automated Powdering and Drying

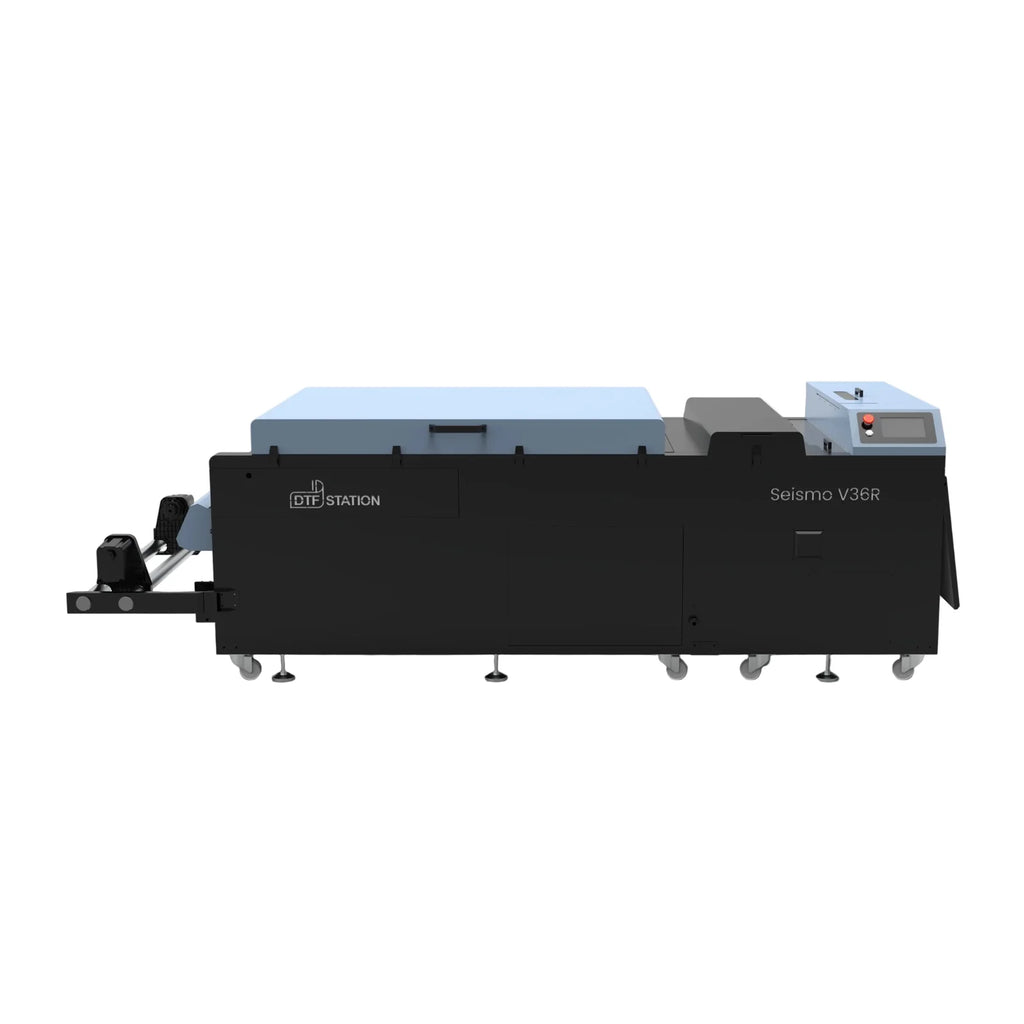

The DTF Station Seismo V36R DTF Powder Applicator and Dryer streamlines Direct-to-Film production with automated powder application and curing in one workflow. Designed for high-volume print shops, it supports media widths up to 36 inches and features an auto-recirculating powder system with intelligent sensor control to maintain consistent curing quality while reducing operator effort.
Features
-
36" maximum media width: Supports large-format DTF transfers and gang sheets
-
Auto-recirculating powder system: Collects excess powder for easy refilling
-
Multi-zone heating platens: Bottom, side, curved heaters ensure consistent curing
-
Intelligent sensor system: Maintains stable curing while lowering power consumption
-
Conveyor and suction system: Simplifies film feeding and reduces setup time
Benefits
-
Automated powdering workflow: Applies and cures powder without manual handling
-
Consistent transfer curing: Even heating across entire transfer surface
-
Higher production throughput: Supports continuous high-volume DTF printing environments
-
Reduced material waste: Recirculates unused powder for reuse
-
Lower operator workload: Automated systems minimize manual monitoring
What's Included
Specifications
-
Max Film Width: 36 in
-
Heating System: Bottom, side, and curved heating platens
-
Powder Handling: Auto-recirculating system
-
Dimensions: 45 in W × 130 in D × 45 in H
-
Weight: 700 lb
-
Power Requirements: 9000W / 220V / 40.9A
Compatible With
