** Prices include crating fee **

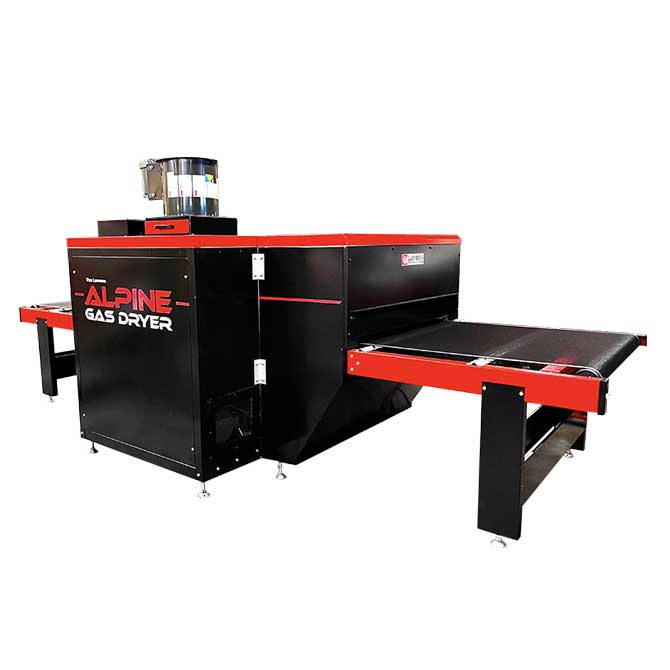

The Lawson Alpine Live-Air Dryer is engineered for heavy-duty, constant production. Its rugged modular construction and advanced air-flo design make it exceptionally versatile and able to withstand even the most relentless use.
The Alpine is a high-velocity live-air gas dryer. It will handle DTG, Garment and Specialty Items requiring heat up to 350-F. Lawson's exclusive Uni-Flo/Air-Knife jet chamber ensures efficient, rapid and thorough drying of waterbase, DTG, plastisol, discharge, solvent and hybrid ink systems. Lawson's Uni-Flo/Live-Air Jet-Knife heat chamber creates an evenly distributed, continuous air-impinged, high-velocity jet-air action. The substrate is constantly subjected to powerful jet streams that penetrate the water/ink barrier, drying ink more rapidly than ever before.
Features:
- Hi-Res 10" Color Touch Screen with Programmable Job Settings
- Real-Time Performance and Control Data
- WiFi Enabled
- Modular Design
- Low Profile for Easy Visibility
- 4' Infeed | 8' Heat Chamber | 4' Out-Feed
- Uni-Flo/Air Knife Jet Heat Chamber
- Easy Access Heat Chamber
- Uni-Vac vacuum hold-down
- Anti-Flutter Design
- Easy Access Filters
- Full Chamber and Furnace Insulation Wrap
- Digital Temperature Control Up To 375-F
- Direct-Drive D.C. Conveyor Motor - Made in the USA
- Easy Access Air Filters
- Digital Belt Speed Controller - with Retention Time Display
- Interlock Safety Control System
- Adjustable Entrance and Exit Panels
- Reversible Belt with 4-point Arrow-Belt Tracking
- IOS or Android Compatible
- One Button Auto-Shut Down Feature
- UL and CE Compliant Components
- One-Year Parts Warranty
Specifications:
Model |
2416 |
3616 |
4816 |
6016 |
Color Touch Screen Tablet Controls |
Yes |
Yes |
Yes |
Yes |
Overall Length |
16' |
16' |
16' |
16' |
Oven Length |
8' |
8' |
8' |
8' |
In-Feed Length |
4' |
4' |
4' |
4' |
Out-Feed Length |
4' |
4' |
4' |
4' |
Belt Height |
34" |
34" |
34" |
34" |
Belt Width |
48" |
60" |
48" |
60" |
Belt Type |
PTFE Coated Fiberglass with Guide Tracking |
PTFE Coated Fiberglass with Guide Tracking |
PTFE Coated Fiberglass with Guide Tracking |
PTFE Coated Fiberglass with Guide Tracking |
Belt Speed Control |
Solid-State/Digital |
Solid-State/Digital |
Solid-State/Digital |
Solid-State/Digital |
Temperature Control |
Digital, upto 375-F |
Digital, upto 375-F |
Digital, upto 375-F |
Digital, upto 375-F |
Oven Temperature Accuracy |
+/- 2 degrees |
+/- 2 degrees |
+/- 2 degrees |
+/- 2 degrees |
BTU Input Minimum |
50,000 |
50,000 |
50,000 |
50,000 |
BTU Input Maximum |
300,000 |
300,000 |
500,000 |
500,000 |
Exhaust Airflow |
1500 cfm 12" Powered Exhaust |
1500 cfm 12" Powered Exhaust |
1800 cfm 12" Powered Exhaust |
1800 cfm 12" Powered Exhaust |
Heat Chamber Blower Motor |
3 H.P. |
3 H.P. |
5 H.P. |
5 H.P. |
Air Filters |
Yes |
Yes |
Yes |
Yes |
Safety Interlock Controls |
Yes |
Yes |
Yes |
Yes |
Safety Standards |
CE Compliant |
CE Compliant |
CE Compliant |
CE Compliant |
Gas Pressure Requirments |
7" Water Column |
7" Water Column |
7" Water Column |
7" Water Column |
Gas Service Inlet |
3/4" NPT |
3/4" NPT |
1" NPT |
1" NPT |
Electrical Requirments |
20 Amps, 230 Volts; 3-Phase |
20 Amps, 230 Volts; 3-Phase |
30 Amps, 230 Volts; 3-Phase |
30 Amps, 230 Volts; 3-Phase |
Crating Sku & Fee:
- LAWSON-750-800-29 ($995)
- LAWSON-750-800-39 ($995)
- LAWSON-750-800-49 ($995)
- LAWSON-750-800-69 ($1295)
- LAWSON-750-800-79 ($1995)
