Package 1
Start with just the printer. You'll need the xTool shaker oven for one-click print-to-bake, and a specialist can tell you exactly what comes in the box.

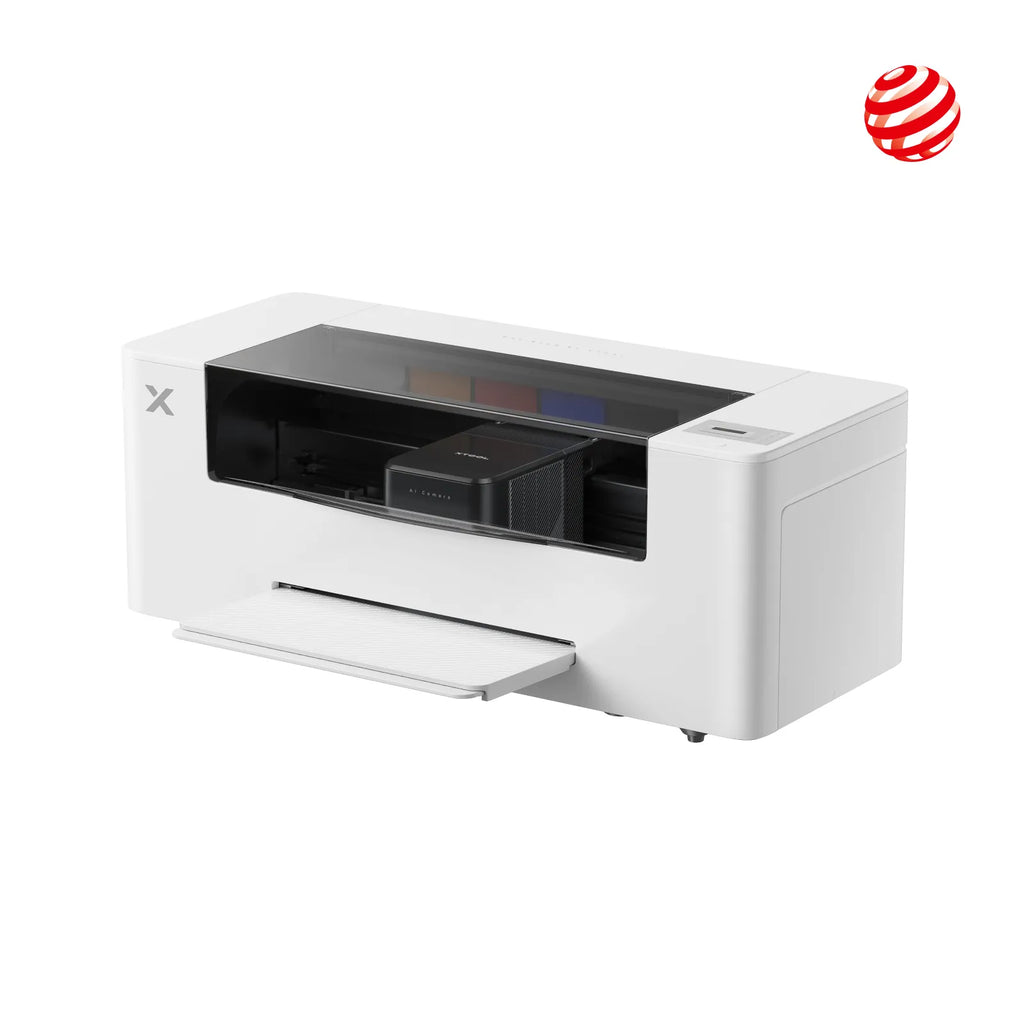

DTF apparel printer
xTool Apparel Printer Plus
SKU: XT-P0101000548
Spend more of your day filling orders and less of it clearing clogged heads. The Plus keeps the air around its printheads at 45 to 65% humidity and caps them wet between jobs.
Supplying print shops since 1986
$5,399.00
Multiple financing options, including Affirm and Synchrony. View financing options
Package
Buy it direct, or talk to a DTF specialist first.
- Less time unclogging, more time printing. It keeps the air around your heads at 45 to 65% humidity and caps them wet between jobs to help prevent clogs.
- Less white ink down the drain. The HydraFlow damper and white ink circulation keep your white flowing and cut down on clogs and waste.
- Keep the queue moving from your phone. Send jobs, check status and get alerts from anywhere on your shop's network.
- Take on whatever fabric your customer brings. Your transfers go on cotton, polyester, denim, canvas, spandex and nylon, up to 14 in wide with G7 color accuracy.
Need a hand?
Looks after its own heads
Why the Plus
Stop babysitting your printheads.
Dry air and white ink that sits still are hard on DTF printheads. The Plus takes care of both by itself, even while it's waiting on your next order.
- You don't have to watch the humidity. A built-in humidifier keeps the air around your heads at 45 to 65%.
- Come back to heads that haven't dried out. Automatic wet capping keeps them moist whenever the printer sits idle, which helps prevent clogs.
- Your white ink keeps flowing. White ink circulation and the HydraFlow damper cut down on clogging and wasted ink.
- Less daily maintenance on your plate. It cleans its own heads, keeps the ink stirred and circulating, and handles humidity and wet capping without you. You can also start a cleaning from the app. Asleep, it draws only 23.5 W, about 0.5 kWh a day.
Plus vs original
Here's what the Plus gives you over the original Apparel Printer.
The top of the table is what you get on either printer, from the printheads to the software. Below that is what you'll only get with the Plus: more help keeping your printheads and white ink in shape, and more control from your phone.
| Feature | Original | Plus |
|---|---|---|
| Same on both | ||
| Dual Epson I1600 printheadsTwo Epson heads print your color and your white. | Same | Same |
| Up to 50 sq ft/hrxTool's top speed, at 720 x 1200 DPI. | Same | Same |
| 14 in print width | Same | Same |
| 14 x 18 in max print area | Same | Same |
| One-click print-to-bakeWith the xTool shaker oven, it powders and bakes for you. | Same | Same |
| G7 color accuracy | Same | Same |
| White ink circulationKeeps your white ink stirred and moving. | Same | Same |
| xTool design and print softwareDesign, RIP, nesting and layout in one program. | Same | Same |
| Only on the Plus | ||
| Humidity control | Not built in | Built in, 45 to 65% around your headsYou don't have to watch the humidity. |
| Wet capping | Not included | AutomaticYour heads stay moist between jobs to help prevent clogs. |
| White ink management | Standard circulation | Circulation plus the HydraFlow damperBuilt for better flow, fewer clogs and less wasted white. |
| Mobile management | Basic status checks | Status, alerts and sending jobsRun the queue from your phone on the shop's network. |
| Software runs on | Mac and Windows | Mac and Windows, plus the phone app on Android and iOS |
Specs come from xTool and our own product pages.
Packages
Pick how you want to start printing.
Every package starts with the Plus. Pick a bundle and you also get the OS1 shaker oven for one-click print-to-bake, plus ink, film and moisturizing liquid to get you started.
Package 2
Go from design to finished transfer with one click. You get the printer and the OS1 Automatic Shaker Oven Machine, plus a CMYKW ink set (250 ml each), a 25 m film roll, moisturizing liquid (250 ml) and the Internal Humidity Module.
Package 3
Add the air purifier without a second order. You get everything in the Versatile Bundle plus the SafetyPro AP2 Air Purifier.
You'll need your own heat press. None of the packages include one.
What comes in each package.
| Included | Package 1 | Package 2 | Package 3 |
|---|---|---|---|
| xTool Apparel Printer Plus | Yes | Yes | Yes |
| OS1 Automatic Shaker Oven Machine | Not listed | Yes | Yes |
| SafetyPro AP2 Air Purifier | Not listed | No | Yes |
| CMYKW Ink Set (250 ml each) | Not listed | Yes | Yes |
| Film Roll (25 m) | Not listed | Yes | Yes |
| Moisturizing Liquid (250 ml) | Not listed | Yes | Yes |
| Internal Humidity Module | Not listed | Yes | Yes |
| Heat press | No | No | No |
What xTool Apparel Printer Plus owners say.
How it works
Your design on a shirt in three steps.
With either bundle, the OS1 shaker oven handles the powder and the bake for you.
01
Lay it out in one program.
Design, RIP, auto nesting and layout all live in xTool's software, and its AI generator can draw artwork for you. Send the job from your computer, or from your phone on the shop's network.
02

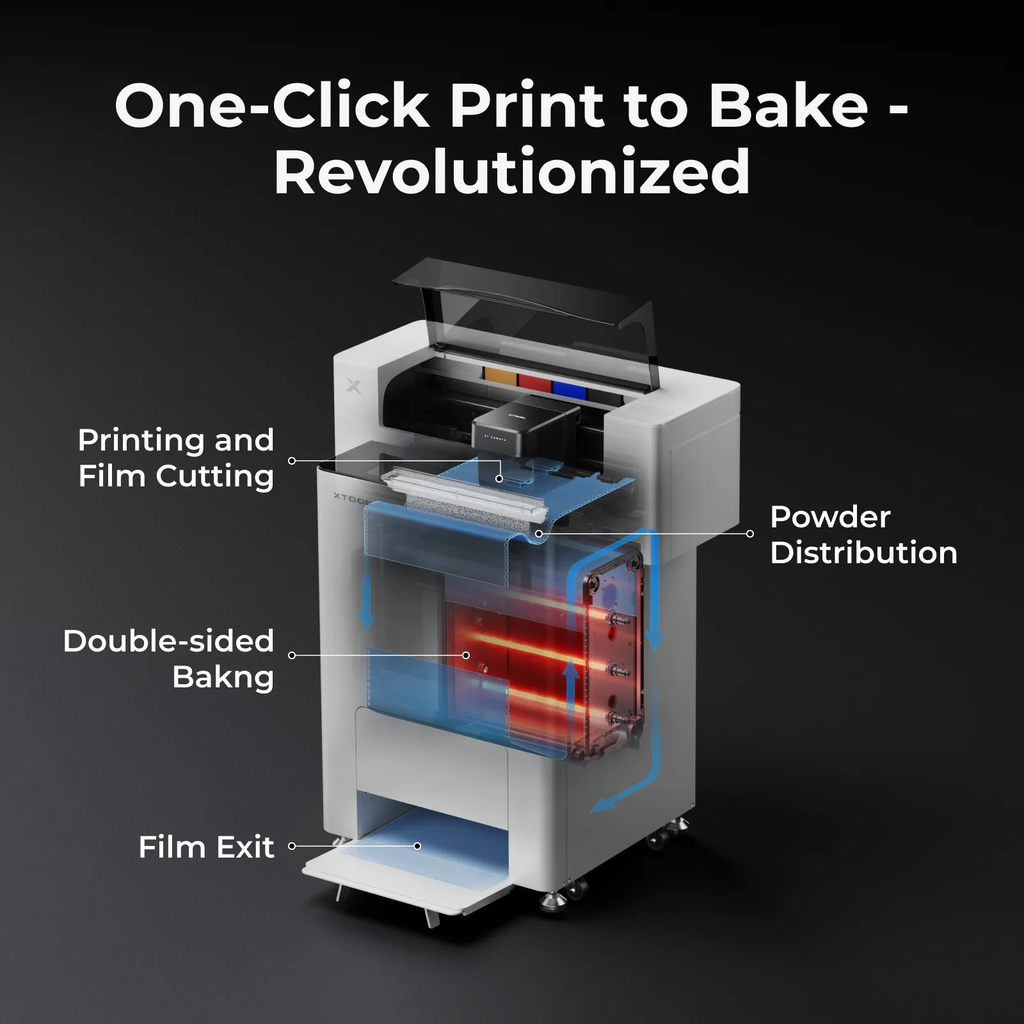

One click to a finished transfer.
No shaking powder by hand. Dual Epson I1600 heads print CMYK plus white, and the xTool shaker oven takes care of the powder and the bake.
03
Press it on.
Your heat press puts it on the garment. Bring your own; none of the packages include one.
For one-click print-to-bake you'll need the xTool shaker oven. Both bundles come with it; the Standalone doesn't list it.
Talk to a Specialist
xTool's numbers
The Plus in xTool's own numbers.
50
sq ft an hour, tops, at 720 x 1200 DPI
14 in
Print width
720×1800
DPI at the top setting
3.8pL
Smallest ink drop
45 to 65%
Humidity it keeps around your heads
23.5W
Power it draws asleep
That speed is xTool's top rating at 720 x 1200 DPI. Ask a specialist how your own artwork will run before you budget around it.
What you can make
Say yes to the orders that walk in the door.
Your transfers go onto the fabrics customers already bring you.
Cotton tees and hoodies
Knock out the everyday cotton order without switching methods.
Polyester and performance wear
Take the team jersey and athletic wear jobs on the same printer.
Canvas totes and bags
Throw bags into a merch order and print them yourself.
Denim
Give the customer who wants something different a custom jacket or jeans.
Spandex and nylon
Keep stretch fabrics and nylon on your yes list.
Pay for it over time.
Multiple financing options, including Affirm and Synchrony. A specialist can walk you through the programs before you pick a package.
The lender sets the terms, rates and decisions.
Specs
All the specs you'll want to check.
Printing
- Printheads
- Dual Epson I1600
- Resolution
- 720 x 1800 DPI
- Smallest ink drop
- 3.8 pL
- Print speed
- Up to 50 sq ft/hr at 720 x 1200 DPI
- Print mode
- Single sheet-fed
- Ink
- CMYK + WWWW
- Print width
- 14 in (356 mm)
- Max print area
- 14 x 18 in
- Color
- G7 color accuracy
- Fabrics
- All fabrics, including cotton, polyester, denim, canvas, spandex and nylon
Care and control
- Humidity control
- Built-in ultrasonic humidifier, holds 45 to 65% around the printheads
- Wet capping
- Automatic
- White ink
- White ink circulation with the HydraFlow damper
- Self-maintenance
- Automatic printhead cleaning, humidification, ink stirring and circulation, wet capping
- Calibration
- AI-powered auto calibration
- App
- Remote monitoring, alerts, remote cleaning, send print jobs on the same local network
- Software
- xTool software with AI design generator, RIP, auto nesting, layout and machine control
- Software platforms
- Android, iOS, macOS, Windows
- Workflow
- One-click print, powder and bake with the xTool shaker oven
Size and power
- Printer size
- 35.63 x 14.37 x 14.03 in (905 x 365 x 356.5 mm)
- Printer weight
- 61.73 lb (34 kg)
- Voltage
- AC 100 to 120V / 220 to 240V, 50/60 Hz
- Power
- 350 W; 23.5 W asleep, about 0.5 kWh a day
- Operating temperature
- 59 to 89 F (15 to 30 C); 68 to 89 F recommended
- Operating humidity
- 30 to 80% RH; 50 to 80% RH recommended
Size and weight cover the printer by itself. The OS1 shaker oven in the bundles takes up its own space, and a specialist can give you the full setup size before you plan your floor.
Full specs
Product details
Here's the full description, features and specs for the xTool Apparel Printer Plus.
Print custom T-shirts, hats, bags and denim for your customers, and spend less of your week unclogging printheads. The xTool Apparel Printer Plus prints full-color DTF transfers and looks after its own heads: it helps keep the air around them humid, cleans them around the clock while it is plugged in, and seals them when the shop goes quiet.
Pick the Versatile or All-in-1 Bundle and the printer is paired with xTool's OS1 shaker oven, so one click takes a design from print to a baked transfer. You heat press it onto the garment. The Standalone package is the printer without the oven.
The Plus is xTool's update to its original Apparel Printer, built on more than 197,000 hours of real-world use and community feedback. The changes all aim at the same thing: more consistent printing with less hands-on upkeep.
Key Features
- Steady printing when the shop air is dry. A built-in humidifier switches on and off by itself to help keep the air around the printheads in range, and a dedicated sensor next to the heads picks up changes within seconds.
- White ink that is less likely to clog. The Plus adds an upgraded white ink damper, which xTool calls HydraFlow, and the printer stirs and circulates the white ink on its own.
- A slow weekend is easier on the heads. After 24 hours with no printing, the printer seals the printheads and keeps the nozzles moist with moisturizing liquid, which helps stop leftover ink from drying in them.

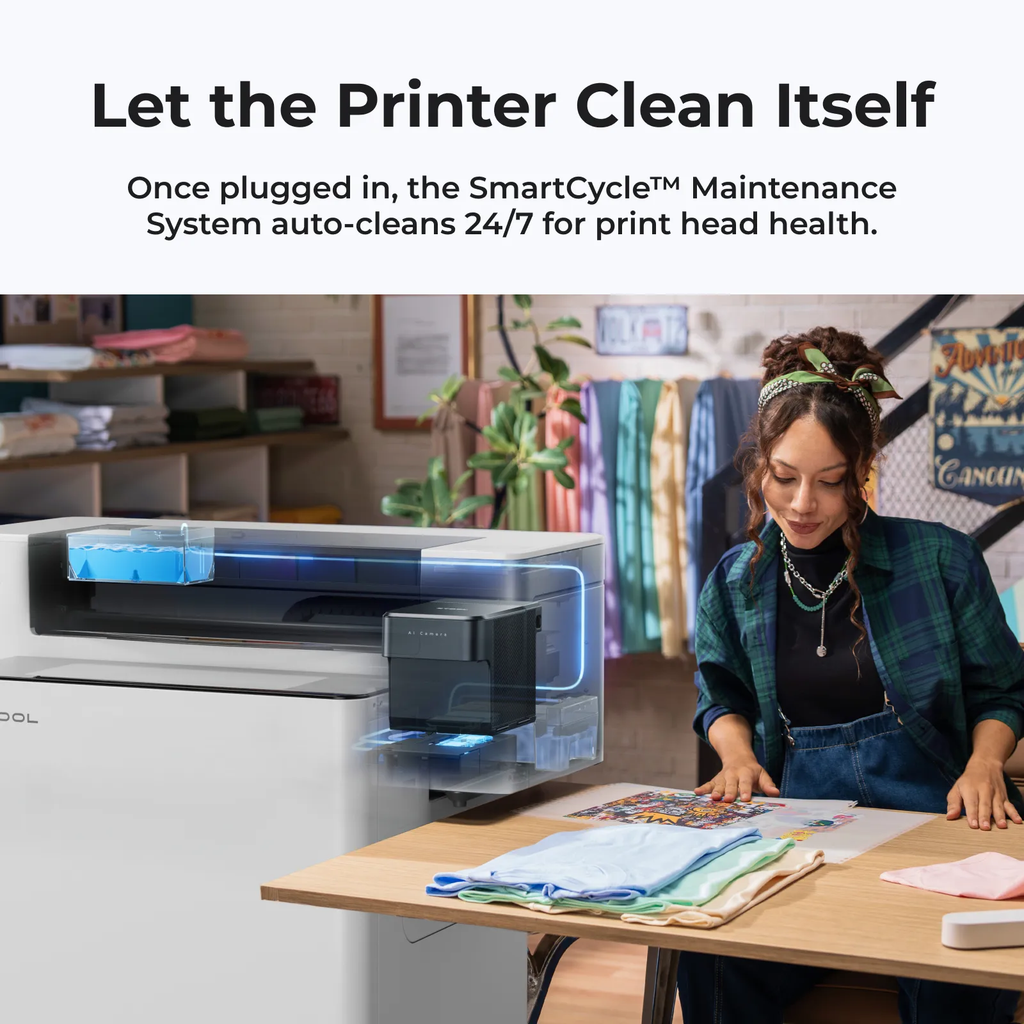

- Printhead care that runs while you do other work. Once it is plugged in, the printer cleans its heads around the clock, and you can start a cleaning from the app too.
- A blocked nozzle does not have to stop the job. An AI camera checks the nozzles with test prints and starts a cleaning. If a nozzle stays blocked, the printer covers for it with working nozzles while it prints. The same camera handles calibration.
- One click from design to baked transfer, with the OS1 oven. Together the printer and oven print and cut the film, powder it and bake both sides, so the sheet comes out ready to press.
- Say yes to more kinds of garments. Dual printheads print full color with a white layer, so designs work on any color of apparel across cotton, polyester, denim, canvas, spandex, nylon and more.
- Color set up before your first order. The printer comes with its G7 color curve already adjusted, so you are not tuning color by hand.
- Run it from your phone. In the xTool Studio app you can edit an image and send it to print with one tap, and check printer status, ink levels and alerts. Phone features work when your phone is on the same local network as the printer.

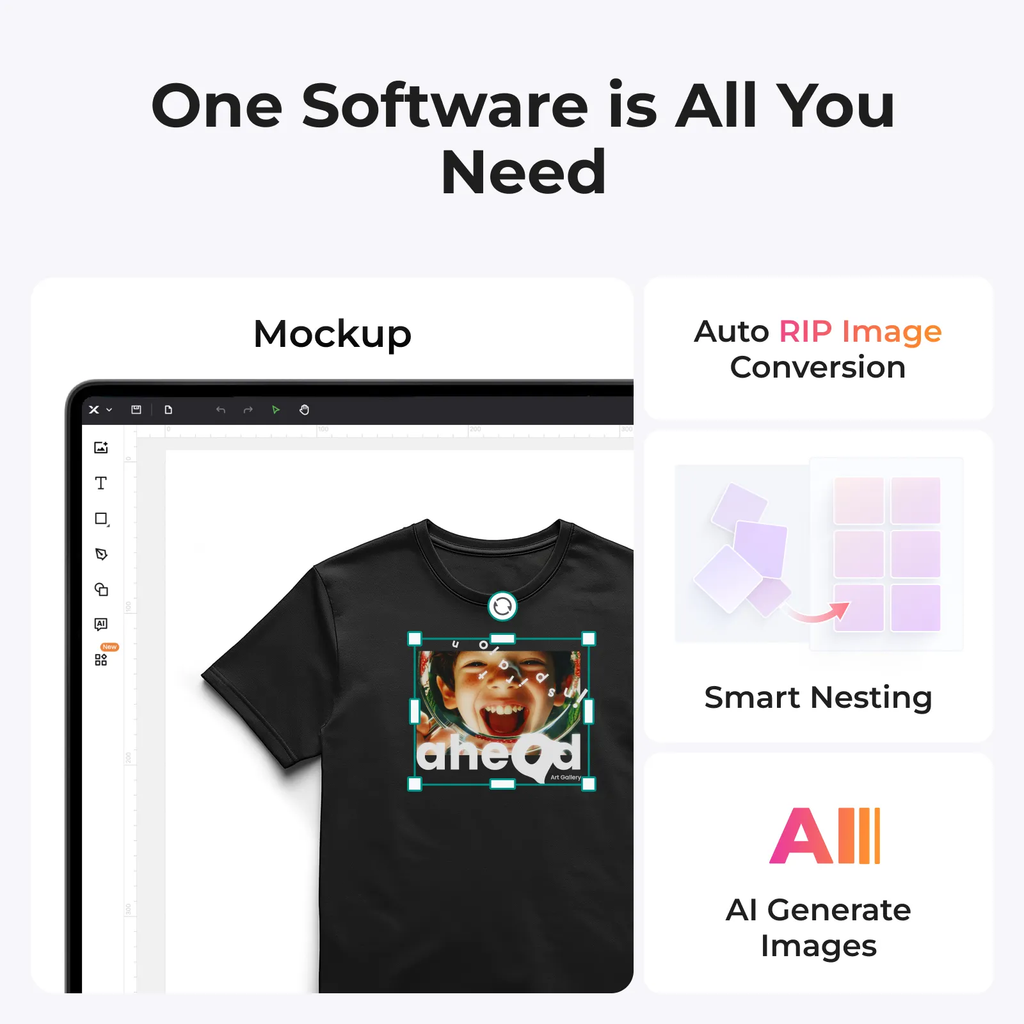

- Design, nest and print in one program. xTool's software includes an AI design generator, RIP, auto nesting and print layout, and runs on Android, iOS, macOS and Windows.
Applications
- Custom T-shirts: full-color designs on any color of shirt.
- Hats and caps: put customer designs on caps as well as shirts.
- Tote bags and other bags: put the same artwork on bags as well as shirts.
- Jeans and denim: add designs to jeans and other denim pieces.
- Canvas shoes: add designs to canvas sneakers.
- Print on demand: print transfers as orders come in instead of holding printed stock.
- In-store customization: personalize apparel for walk-in customers.
- Company merch: branded apparel and bags for business clients.
Compatibility & Requirements
- One-click print to bake needs the xTool shaker oven: the OS1 oven comes in the Versatile and All-in-1 Bundles, not in the Standalone package.
- Heat press: you heat press the finished transfer onto the fabric.
- Film: third-party film cannot be used with the OS1 shaker oven.
- Ink: xTool does not recommend third-party ink.
- Exhaust: xTool does not recommend its IF2 as an exhaust fan for this printer. The fumes contain glycerin.
- Phone app: checking status, getting alerts and sending jobs from your phone work on the same local network as the printer.
Specifications
| Print head | Epson I1600, dual print head |
|---|---|
| Nozzle density | NPI 300 |
| Printing resolution | 720 x 1800 DPI |
| Minimum ink drop size | 3.8 pL |
| Printing speed | Up to 50 sq ft/hr (720 x 1200 DPI) |
| Printing mode | Single sheet-fed |
| Printing color | CMYK+WWWW |
| Print width | 14" (356 mm) |
| Materials | All fabrics, including cotton, polyester, denim, canvas, spandex, nylon and more |
| Color | G7 color curve pre-adjusted |
| Software | Includes AI-powered design generator, RIP, auto nesting, printing layout, machine control and more |
| Software compatibility | Android, iOS, macOS and Windows |
| Mobile app | xTool Studio: printer status, issue alerts, remote cleaning, mobile editing and one-tap printing on the same local network |
| Calibration | AI-powered auto calibration (AI camera), with automatic nozzle compensation |
| Humidity control | Built-in ultrasonic humidifier, helps keep 45 to 65% RH around the printheads |
| Sensors | Two temperature and humidity sensors, one next to the printheads |
| White ink system | HydraFlow damper; auto ink stir and circulation (WIMS, White Ink Management System) |
| Maintenance | Auto printhead cleaning, auto humidification, auto ink stir and circulation, auto wet capping after 24 hours of inactivity |
| Printer size | 35.63" x 14.37" x 14.03" (905 mm x 365 mm x 356.5 mm) |
| Printer weight | 61.73 lbs (34 kg) |
| Voltage | AC 100V-120V / 220V-240V |
| Frequency | 50 Hz / 60 Hz |
| Power consumption | 350W |
| Sleep mode power | 23.5W, approximately 0.5 kWh per day |
| Operating temperature | 59-89°F / 15-30°C (68-89°F / 20-30°C recommended) |
| Operating humidity | 30%-80% RH (50%-80% RH recommended) |
What's Included
Standalone
- xTool Apparel Printer Plus
- CMYKW ink set (250ml each)
- Film roll (25m)
- Moisturizing liquid (250ml)
- Internal humidity module

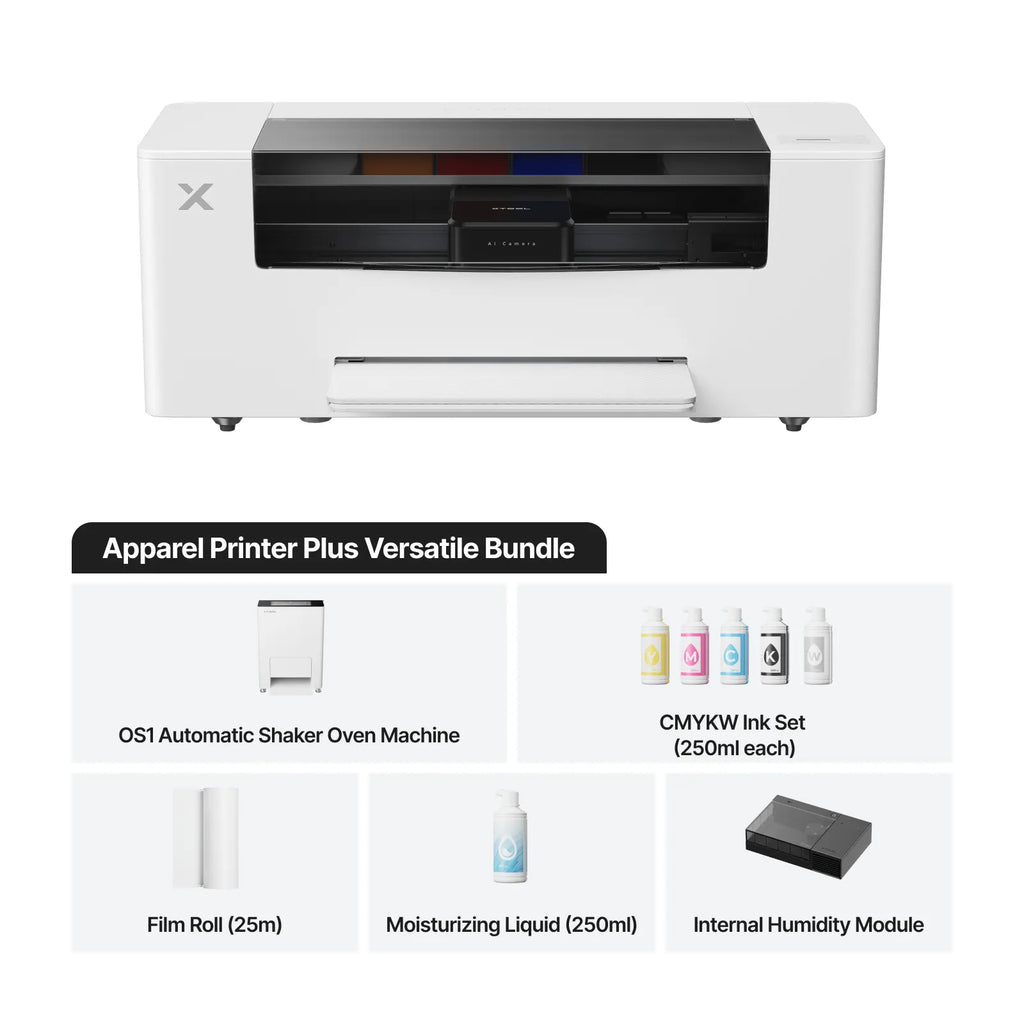

Versatile Bundle
- xTool Apparel Printer Plus
- OS1 Automatic Shaker Oven Machine
- CMYKW ink set (250ml each)
- Film roll (25m)
- Moisturizing liquid (250ml)
- Internal humidity module

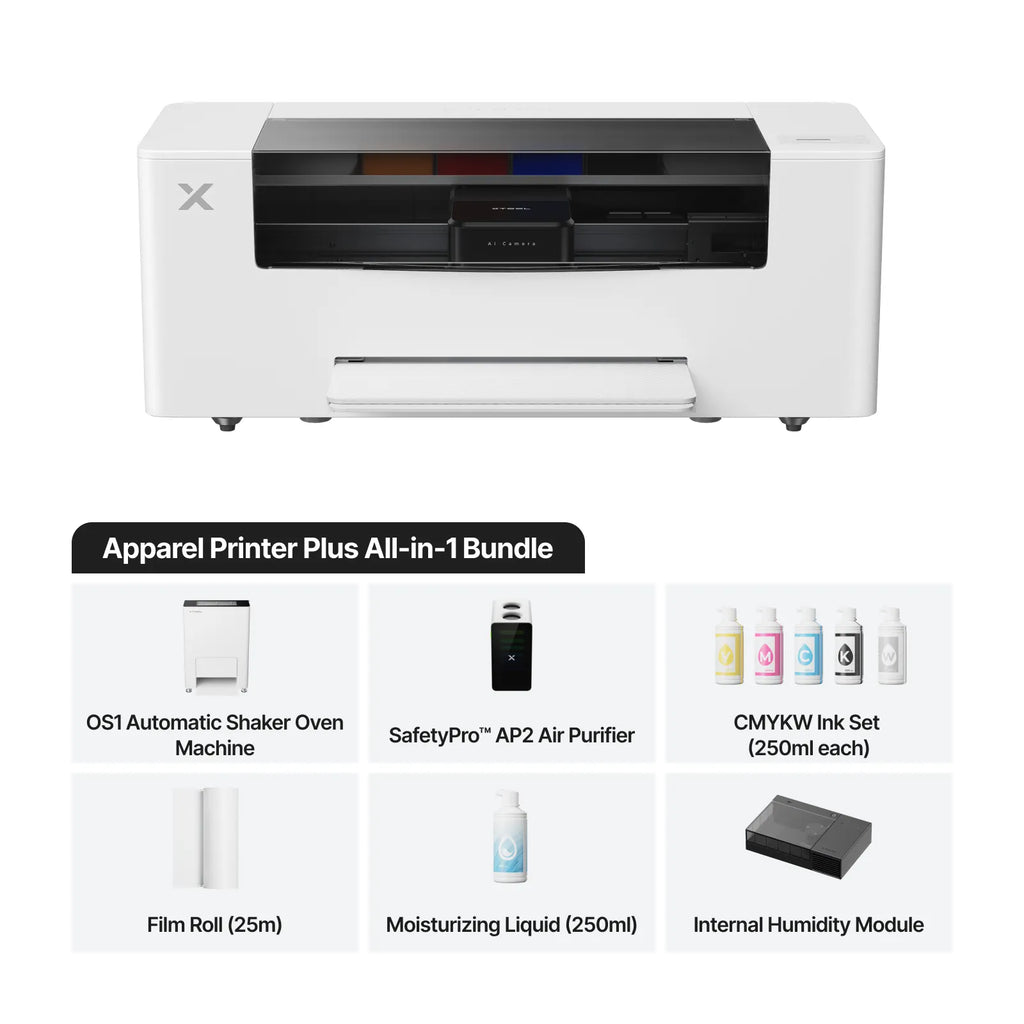

All-in-1 Bundle
- xTool Apparel Printer Plus
- OS1 Automatic Shaker Oven Machine
- SafetyPro AP2 Air Purifier
- CMYKW ink set (250ml each)
- Film roll (25m)
- Moisturizing liquid (250ml)
- Internal humidity module
Care & Maintenance
- Keep it plugged in: the automatic printhead cleaning runs around the clock once the printer is plugged in.
- Idle days: after 24 hours without printing, wet capping seals the heads using moisturizing liquid. The app shows the moisturizer and waste ink tank status, so you can see when either needs attention.
- Stay on xTool ink: xTool does not recommend third-party ink.

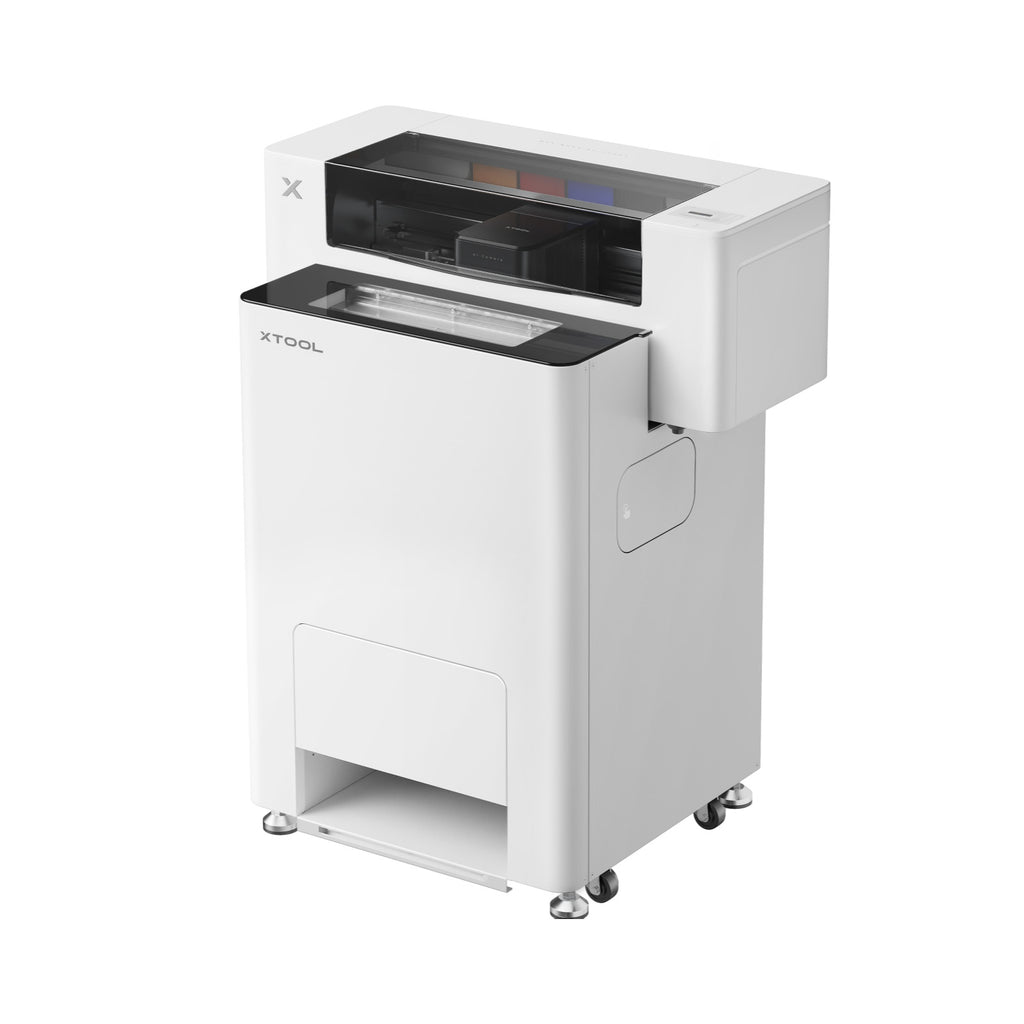

The Plus on its OS1 cabinet
Before it lands
Have these ready before it arrives.
The Plus takes printhead care off your plate. Here's what's still on you.
Your own heat press.The Plus and the OS1 make the transfer, and you press it on. None of the packages include a press.
The shaker oven, if you go Standalone.You need the xTool shaker oven for one-click print-to-bake. Both bundles come with the OS1; the Standalone doesn't list it.
A room that stays in range.Keep it between 59 and 89 F and 30 to 80% relative humidity. xTool recommends 68 to 89 F and 50 to 80%.
Power and a spot on the bench.The printer draws 350 W and measures 35.63 x 14.37 x 14.03 in by itself.
A plan for reorders.The bundles get you started with CMYKW ink, a 25 m film roll and moisturizing liquid. Talk to a specialist about reorders before you run low.
Quick answers before you call.
What does the Plus add over the original xTool Apparel Printer?
You get four upgrades: built-in humidity control that keeps the air around your heads at 45 to 65%, automatic wet capping, the HydraFlow damper for your white ink, and the ability to send jobs from your phone on the shop's network. The printheads, speed and print width match the original.
Does it print straight onto shirts?
No, it makes DTF transfers, and you press them on with your heat press. You'll need your own, since none of the packages include one.
Can the Standalone package do one-click print-to-bake?
Only with the xTool shaker oven. You get the OS1 in the Versatile and All-in-1 bundles. If you're looking at the Standalone, ask a specialist what's in the box before you order.
What fabrics can I print on?
Pretty much whatever your customers bring. xTool lists all fabrics, including cotton, polyester, denim, canvas, spandex and nylon.
How fast is it?
xTool rates it at up to 50 sq ft an hour at 720 x 1200 DPI. Tell a specialist what you print, and they'll talk you through how your own jobs will run.
Can I run it from my phone?
Yes. From your phone you can check on the printer, get alerts, start a cleaning and send print jobs, as long as you're on the shop's network. The software works on Android, iOS, macOS and Windows.
What is the difference between the Versatile and All-in-1 bundles?
The All-in-1 adds the SafetyPro AP2 Air Purifier. Everything else is the same in both.
What power does it need?
It runs on AC 100 to 120V or 220 to 240V at 50/60 Hz and draws 350 W. Asleep, it's down to 23.5 W, about 0.5 kWh a day.
What room conditions does it need?
Keep your room between 59 and 89 F and 30 to 80% relative humidity; xTool recommends 68 to 89 F and 50 to 80%. The built-in humidifier takes care of the air right around the heads.
Can I finance it?
Yes. Multiple financing options, including Affirm and Synchrony. View financing options on our finance page, or ask a specialist to walk you through them.
When can I get one?
This one has a special lead time. A specialist will confirm the current timing for the package you pick.
Can I talk it through before I buy?
Absolutely. Use the form below and tell us what you print and what you sell. We've supplied print shops since 1986, and we'll tell you straight whether the Plus fits your work.
Since 1986
We've been supplying print shops since 1986. Tell us what you print, and a DTF specialist will help you pick the right package.
Free consultation
Talk to a DTF specialist.
Tell us what you print, what you sell and what you already own. We'll tell you which package fits and what else you need to start pressing.
- The package that fits your shop
- What else you'll need, starting with a heat press
- How the Plus fits the way you already work
Ask for an xTool Apparel Printer Plus demo.
Ask for a demo, or ask us anything about packages, power or the fabrics you print.
No obligation. A DTF specialist reads your request and gets back to you.
Let the printer look after its own heads.
You focus on the orders. Built-in humidity control, automatic wet capping and the HydraFlow damper help keep the xTool Apparel Printer Plus ready for the next one.
