The Aries Series are more than just UV printer—it's an all-in-one solution with a built-in laminator; a game changer in the realm of direct-to-film printing. This technological marvel redefines the benchmarks for performance and reliability. Set your print job in the morning, and by the evening, your finished film awaits, with minimal need for operator involvement.
Aries 113
Aries 124
Print Head
Epson XP600(F1080)*2
Max Film Width
A Film - 12.60"
B Film - 11.81"
Max Print Width
11.81"
Printing Speed
9 sq. ft / hour
Daily Output
3130 pcs
(Based on 1.6”x1.8” design size, 8 hours per day)
Product: 319.67 lbs
Packaging: 407.85 lbs
Product: 38.6"W x 37"D x 48.2"H
Packaging: 57.1"W x 35.4"D x 28"H
800W, 110V, 7.27A
Print Head
Epson i1600-U1*4
A Film - 24"
B Film - 23.62"
23.62"
55 sq. ft/hour
12100-18480 pcs
(Based on 1.6”x1.8” design size, 8 hours per day)
Product: 551.15 lbs
Packaging: 716.50 lbs
Product: 73.8"W x 37.4"D x 62.8"H
Packaging: 78.7"W x 45"D x 33.3"H
1900W, 110V, 17.27

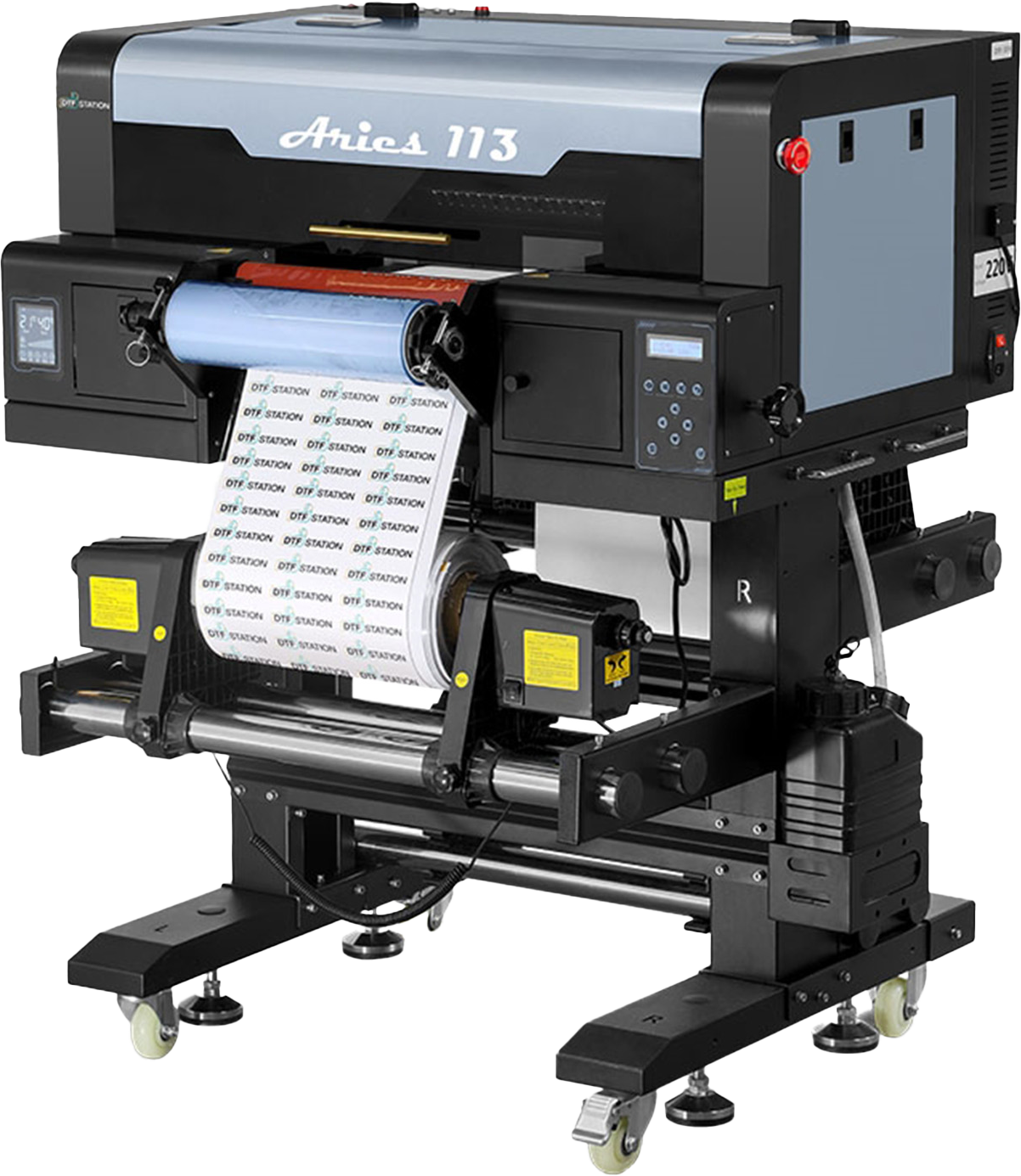

Aries 113
Print Head
Epson XP600(F1080)*2
Max Film Width
A Film - 12.60"
B Film - 11.81"
Printing Speed
9 sq. ft/hour
Weight
Product: 319.67 lb
Packaging 407.85 lb
Power
800W, 110V, 7.27A
Max Print Width
11.81"
Daily Output
3130 pcs
Dimension (WxDxH)
Product:
38.6"x37"x48.2"
Packaging: 57.1"x35.4"x28"

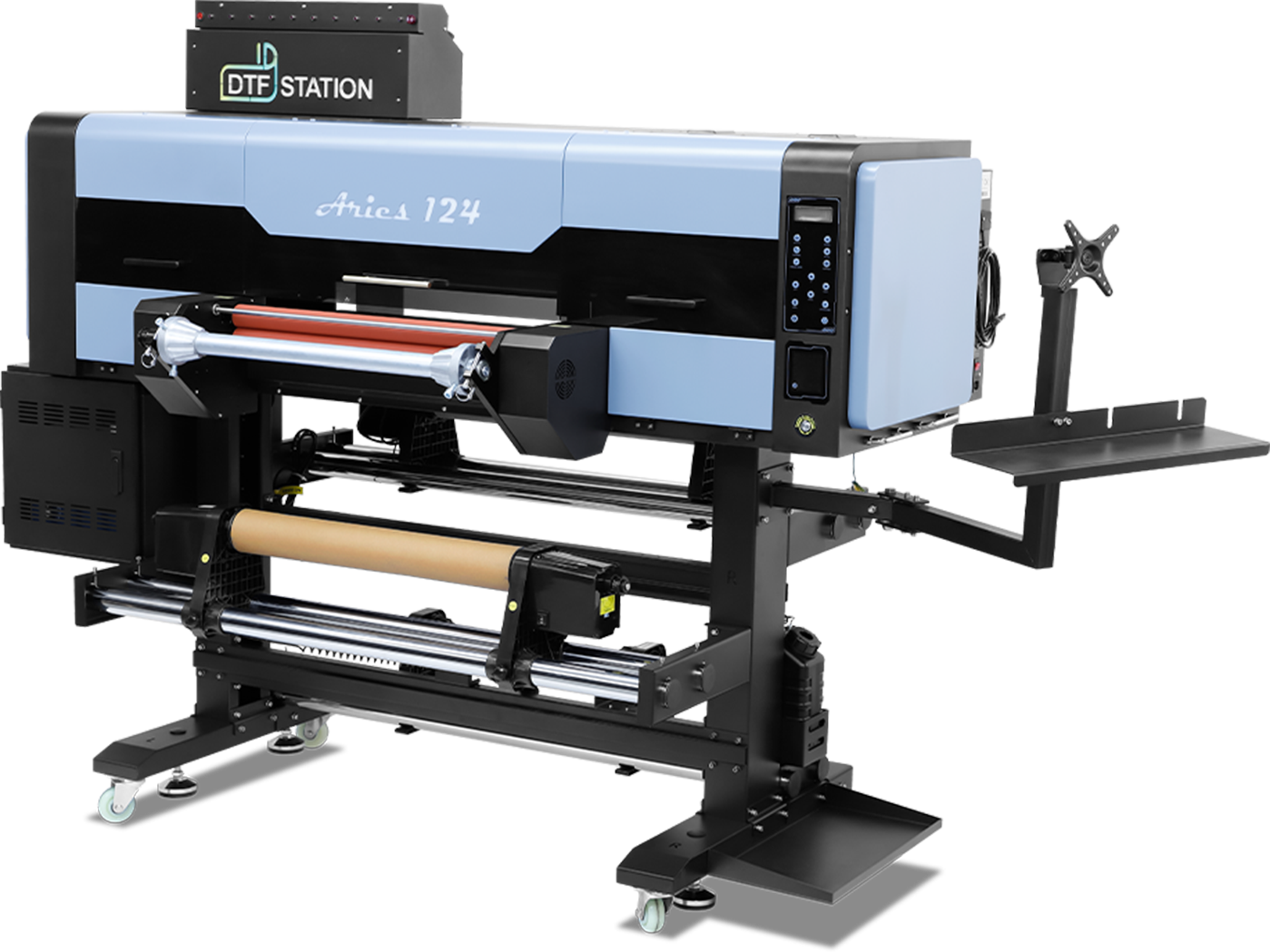

Aries 124
Print Head
Epson i1600-U1*4
Max Film Width
A Film - 24"
B Film - 23.62"
Printing Speed
60 sq. ft/hour
Weight
Product: 551.15 lb
Packaging: 716.50 lb
Power
1900W, 110V, 17.27 amps
Max Print Width
23.62"
Daily Output
12100-18480 pcs
Dimension (WxDxH)
Product:
73.8" x 37.4" x 62.8"
Packaging:
78.7" x 45" x 33.3"
