Ultra-Precise UV Engraving
The xTool F2 Ultra UV delivers professional-grade UV laser engraving with ultra-fine detail, cold processing, and automated positioning. Designed for glass, crystal, plastics, and more, it enables 3D inner engraving, embossing, and precision cutting while maintaining clean, burn-free results for commercial and high-end customization applications
Features
-

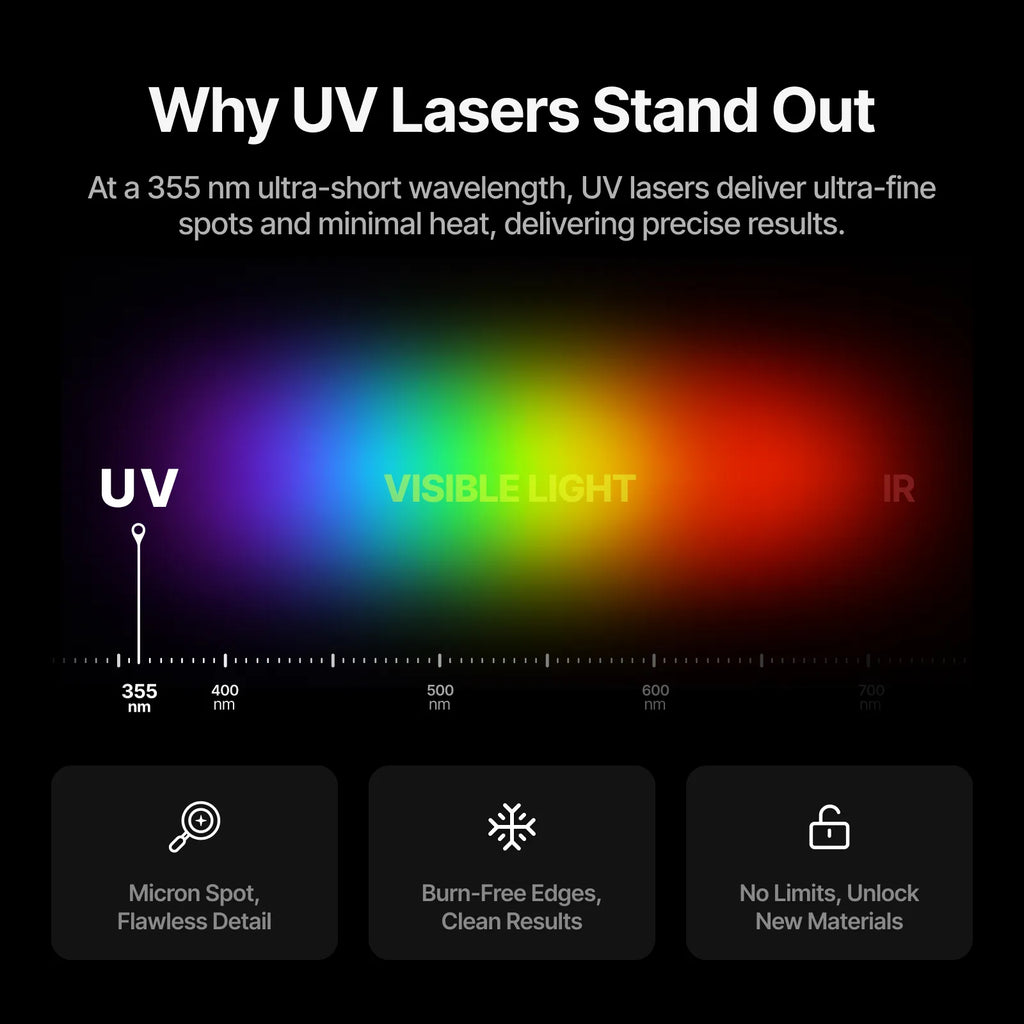

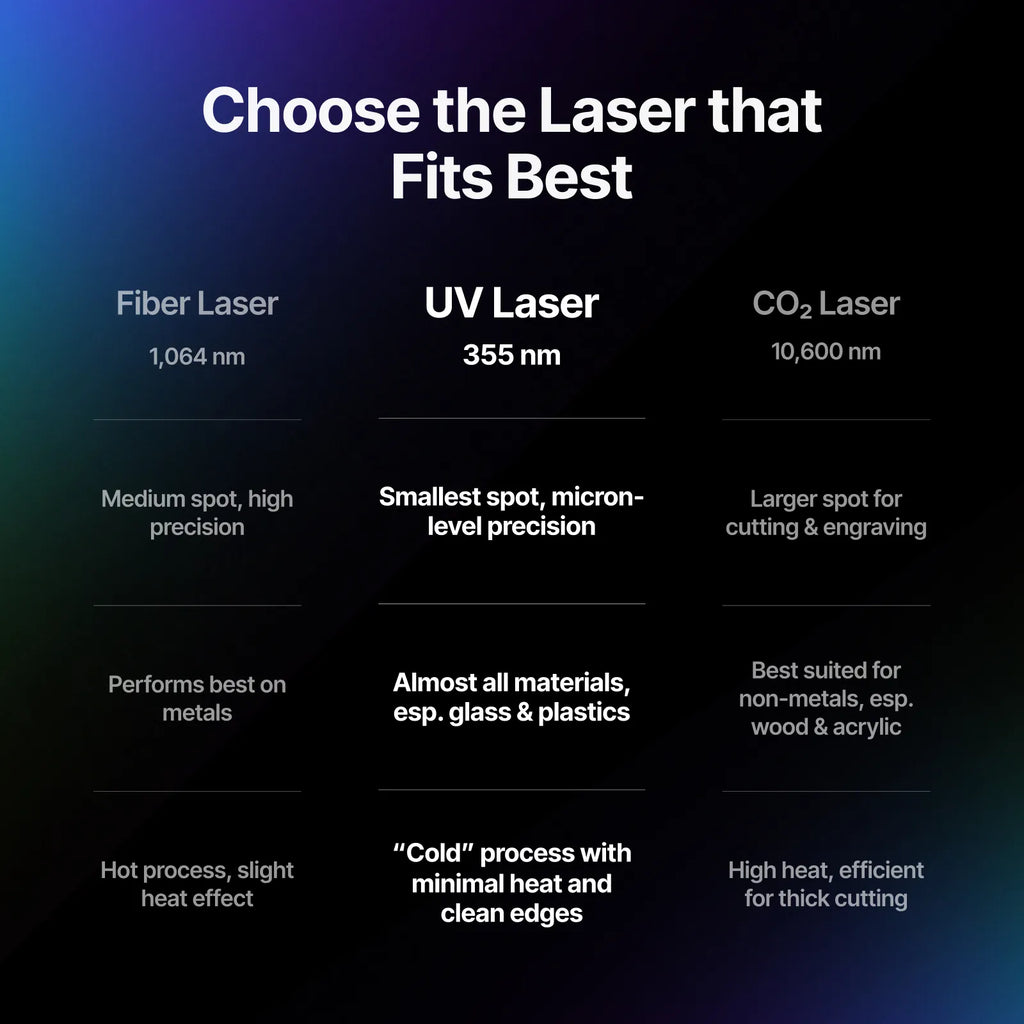

5W UV Laser Technology: Cold processing with minimal heat and damage
-

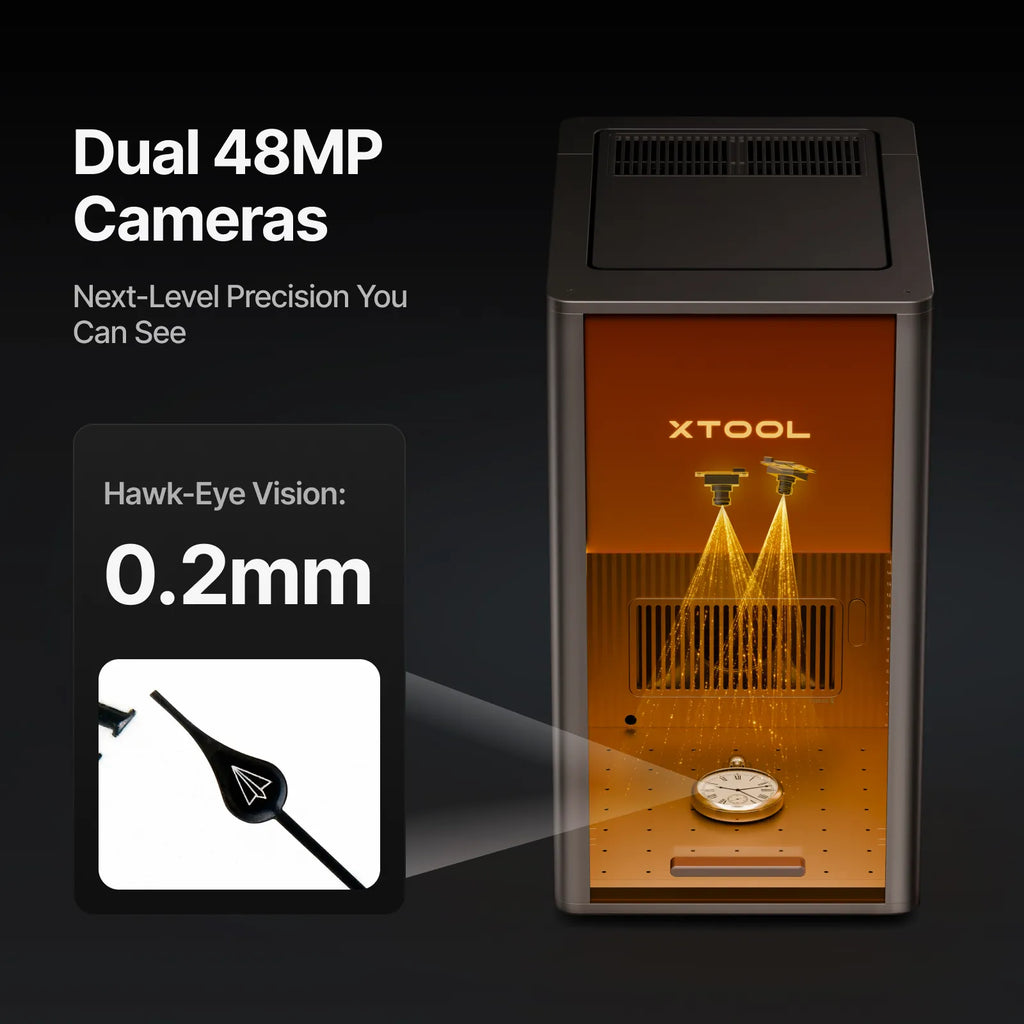

Dual 48MP Cameras: Autofocus and automatic positioning with 0.2 mm accuracy
-
High-Speed Performance: Up to 15,000 mm/s engraving speed
-

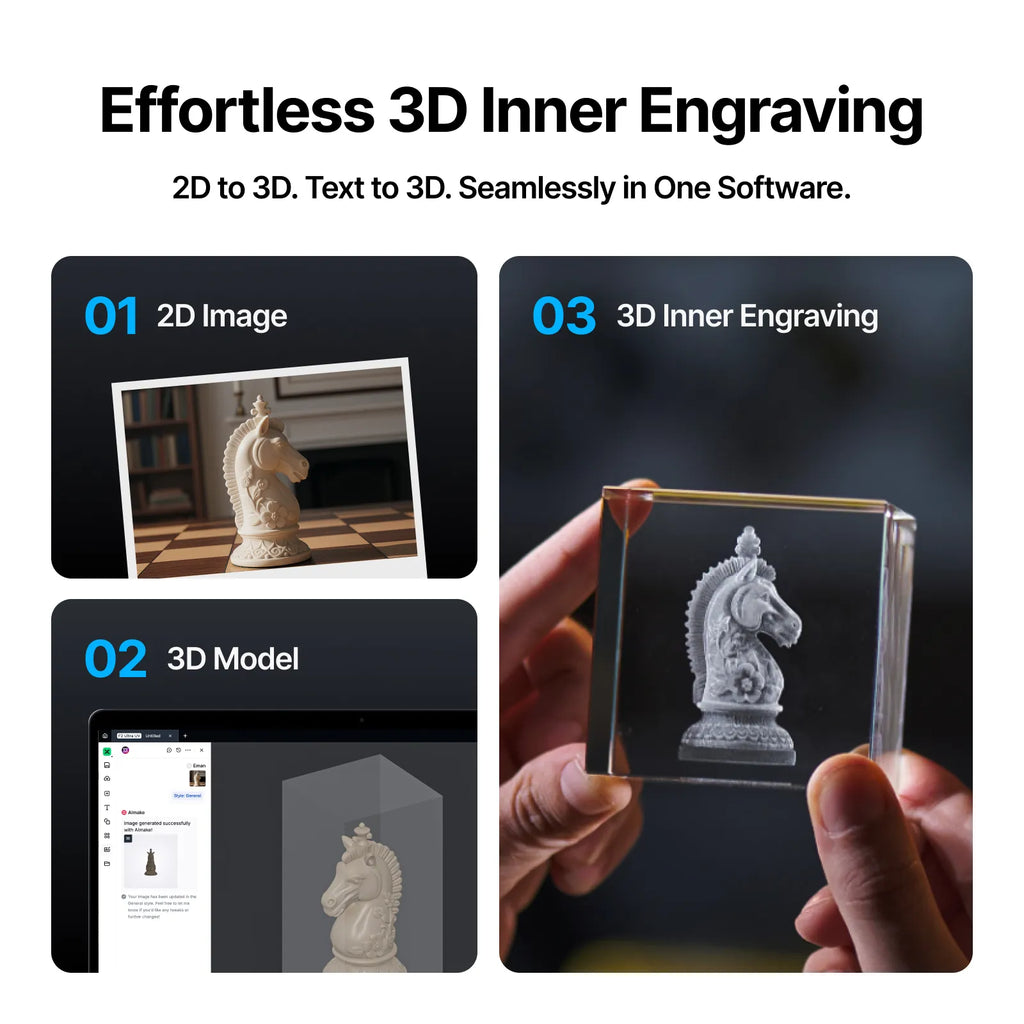

3D Inner Engraving Capability: Converts 2D designs into 3D engraving projects
-

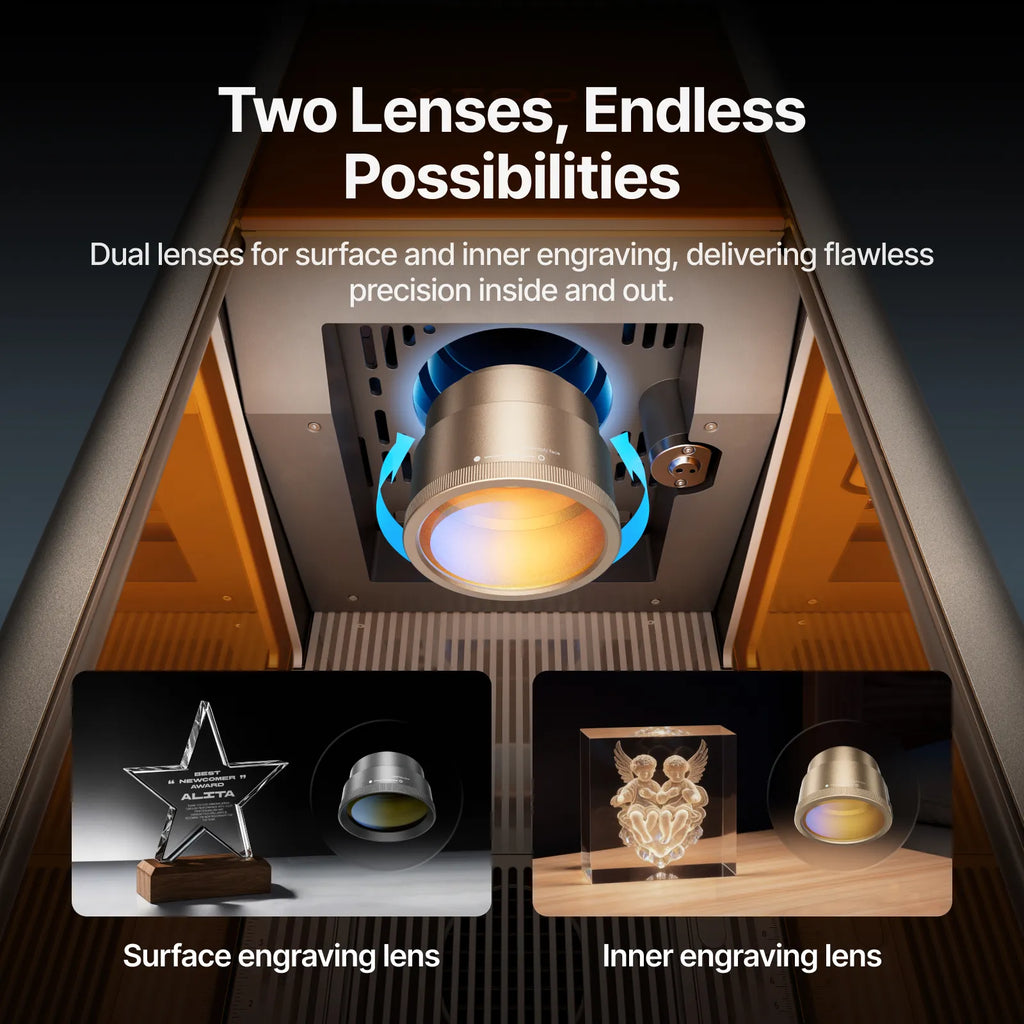

Dual Field Lens System: Supports surface and inner engraving applications
Benefits
-
Premium Detail Quality: Microscopic engraving with flawless burn-free edges
-
Expanded Material Compatibility: Engraves glass, acrylic, ceramic, silicone, plastics, and more
-
Production Efficiency: Batch and rotary engraving support increases throughput
-
Simplified Workflow: AI software assists with design conversion and parameters
-
Business Growth Potential: Enables in-house customization and faster turnaround
What’s Included
-

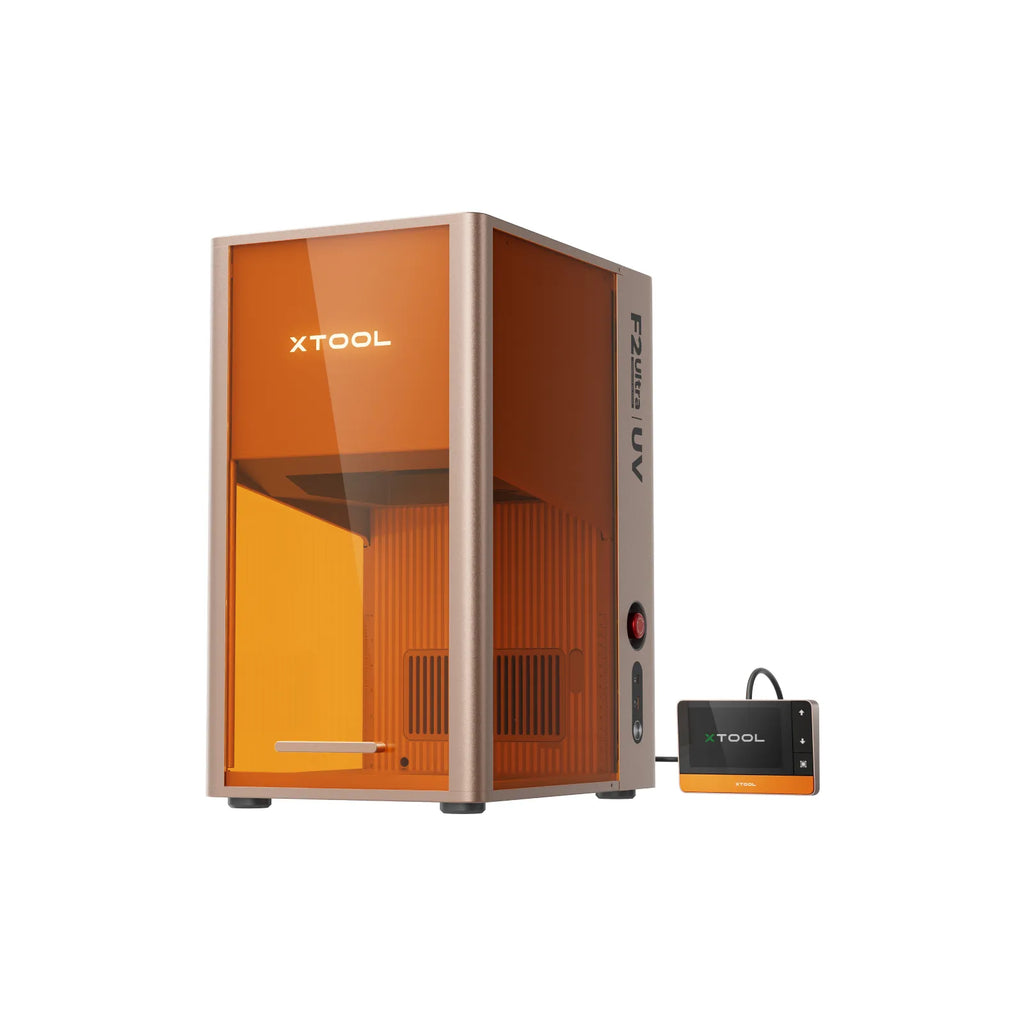

xTool F2 Ultra UV Laser Engraver
-
Inner engraving lens
-
Riser
-
K9 glass block for testing and calibration
-
Inner engraving calibration cards
-
Touchscreen controller
-
Pipe
-
Power adapter
-
Power cable
-
USB cable
-
Key
-
L-shaped positioning piece
-
Slatted panel
-
Lint-free cloth
-
2.5 mm screwdriver
-
Material pack
-
Quick start guide
-
Safety instructions
Specifications
-
Laser type: 5W 355 nm UV laser
-
Processing modes: Laser engraving and laser cutting
-
Surface engraving work area: 7.9" × 7.9"
-
Inner engraving work area: 2.8" × 2.8"
-

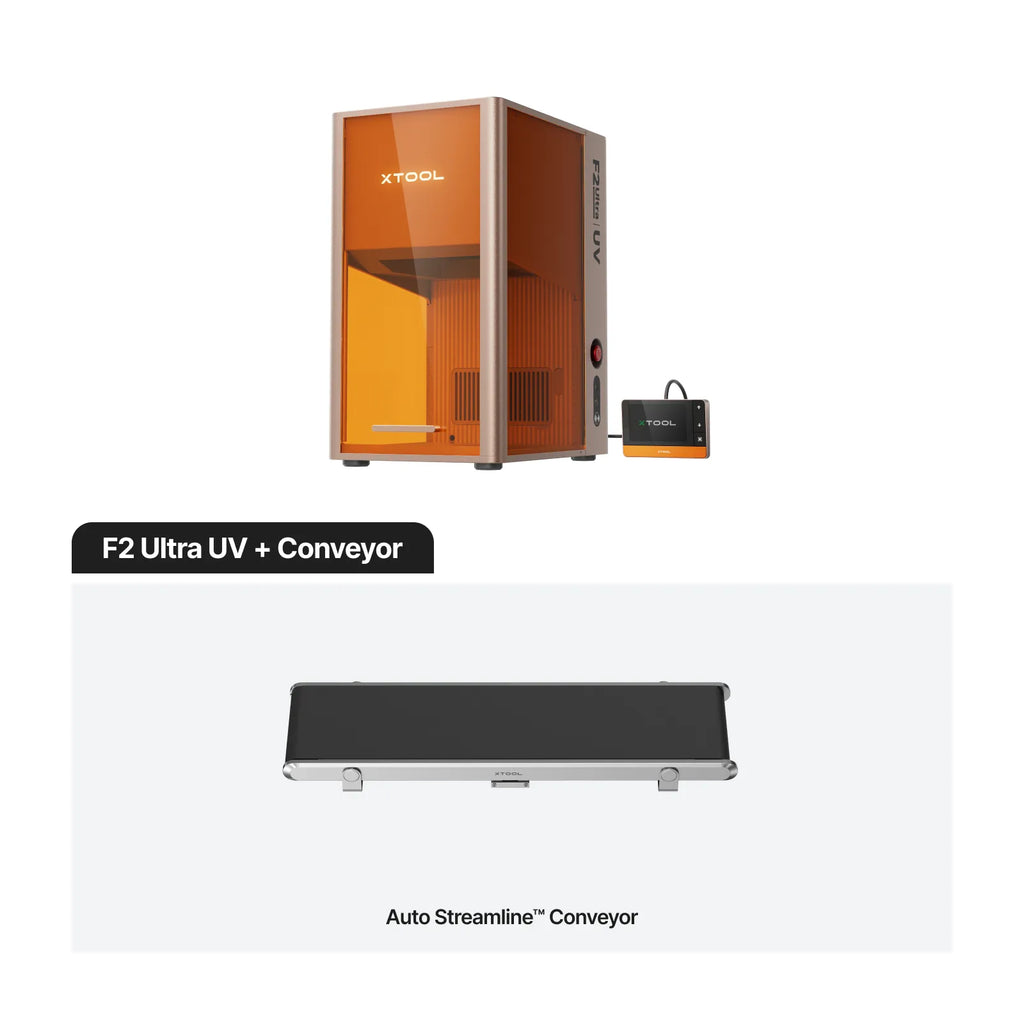

Surface engraving with conveyor: 7.9" × 19.7"
-
Maximum processing speed: 15,000 mm/s
-
Maximum processing height: 5.9"
-
Maximum rotary engraving diameter: 5.9"
-
Maximum cutting capacity (basswood): 0.59" multiple passes
-
Maximum cutting capacity (acrylic): 0.47" multiple passes
-
Software compatibility: xTool Studio
-
Connection modes: Wi-Fi, USB, IP
-
Machine dimensions: 11.6" × 16.9" × 20.5"
-
Voltage: 110V / 220V
Compatible With
-
xTool Studio software
-
Auto Streamline™ Conveyor
-
xTool MagSwap™ RA3 Rotary
-
xTool SafetyPro™ IF2 Inline Duct Fan
-
xTool SafetyPro™ AP2 Air Purifier
-
Fire Safety Set
