No more focus sticks.LiDAR autofocus reads the height of your material, and the motorized AutoLift bed moves it into focus for you.
xTool · CO2 laser cutter

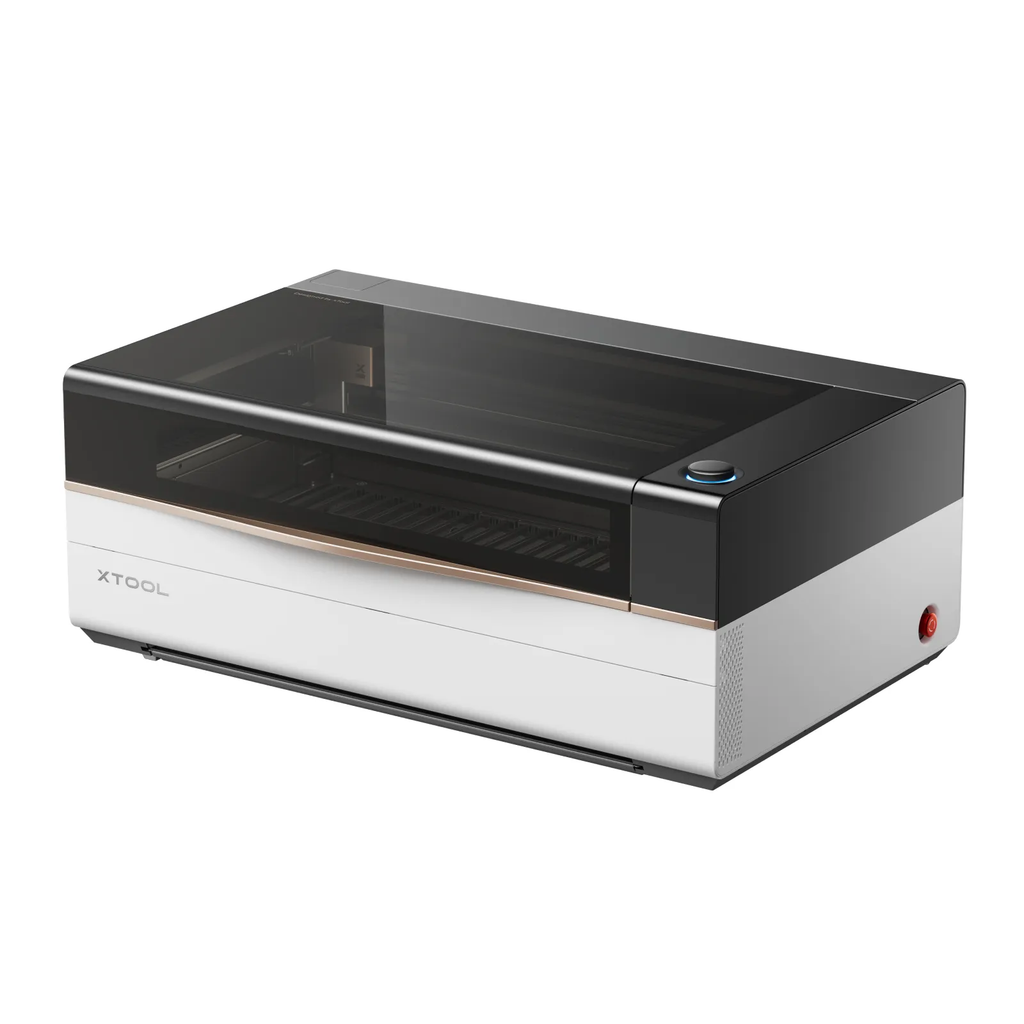

xTool P3 Laser Cutter
SKU: XT-P0101000118
$5,899.00$6,599.00
Multiple financing options available, including Affirm and Synchrony.
Type
- Fit the whole sign in one go.The 36 x 18 inch bed takes big signs and full batches without cutting them into pieces.
- Close the lid and it sets up the job.Autofocus measures your material and the motorized bed lifts it into focus.
- See where your design lands before you cut.The 16MP SkyView and close-range cameras put your material on screen, and you place the design right where it goes.
- Cut thick wood and acrylic cleanly.The 80W CO2 laser goes through 0.79 inch basswood and 0.98 inch acrylic in one pass.
- Taller pieces fit too.The bed moves down to make room for items up to 8.66 inches tall.
- One less box beside the laser.The water chiller is built in.
Need a hand?

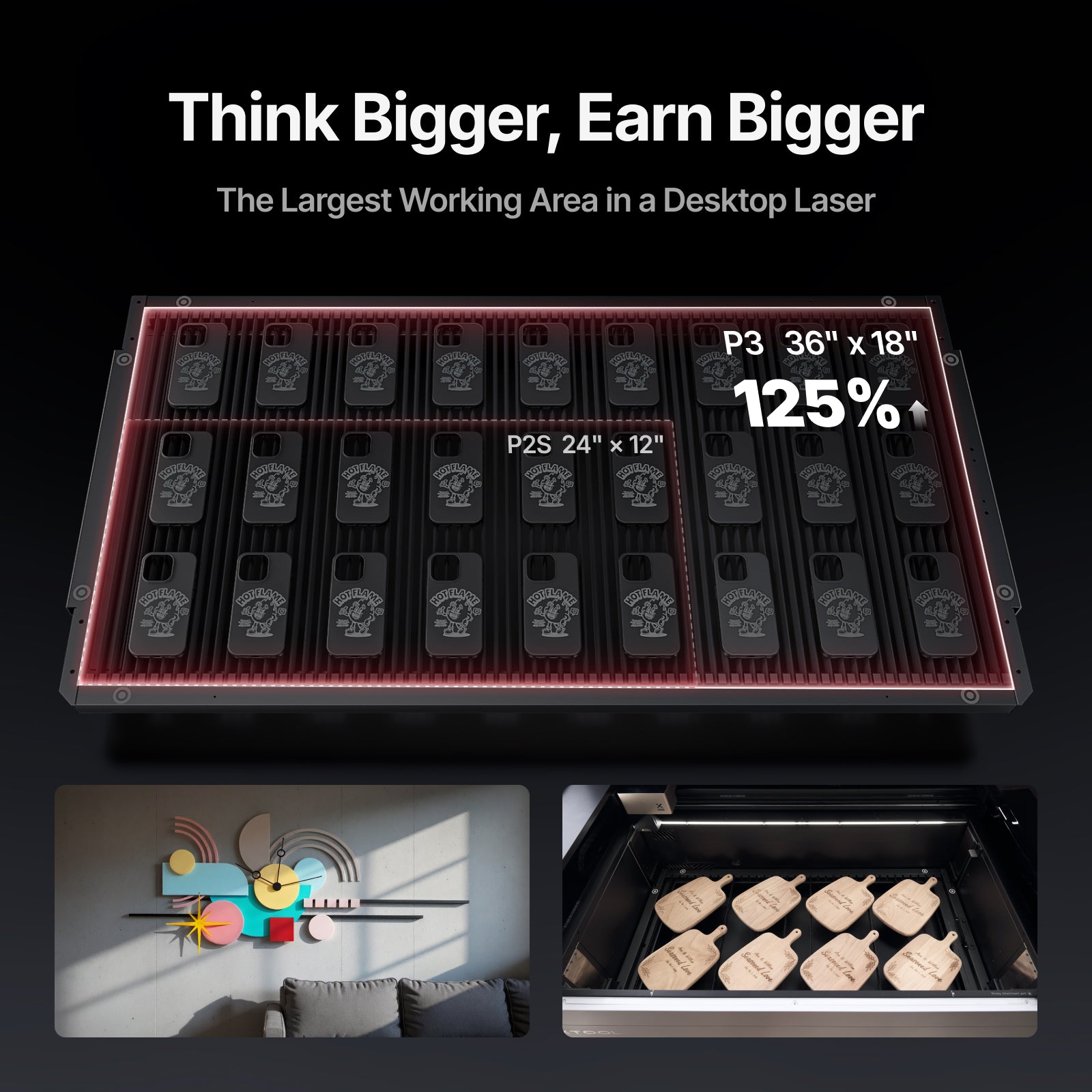

Room for the big jobs.
If you've outgrown a smaller laser, you've probably cut signs into pieces or turned boards sideways to make them fit. The P3's 36 x 18 inch bed takes the whole sign at once, or a whole batch of smaller pieces in one run.
- Long boards feed right through.When a piece is longer than the bed, the Intelligent Conveyor Feeder clamps it and feeds it through the machine. It comes in both bundles, and you can add it to the Standalone later.
- Batches without the shuffle.Lay out a full bed of phone cases or cutting boards and run them together instead of a few at a time.
Close the lid. It sets up the job.
You stop measuring and focusing by hand before every job. Put your material on the bed and close the lid. The P3 measures the height, lifts the bed into focus and puts a live view of your material on screen.
Your design lands where you put it, even on a customer's piece.You place it on the camera view, and dual-camera positioning holds it to within 0.2 mm (0.0079 in).

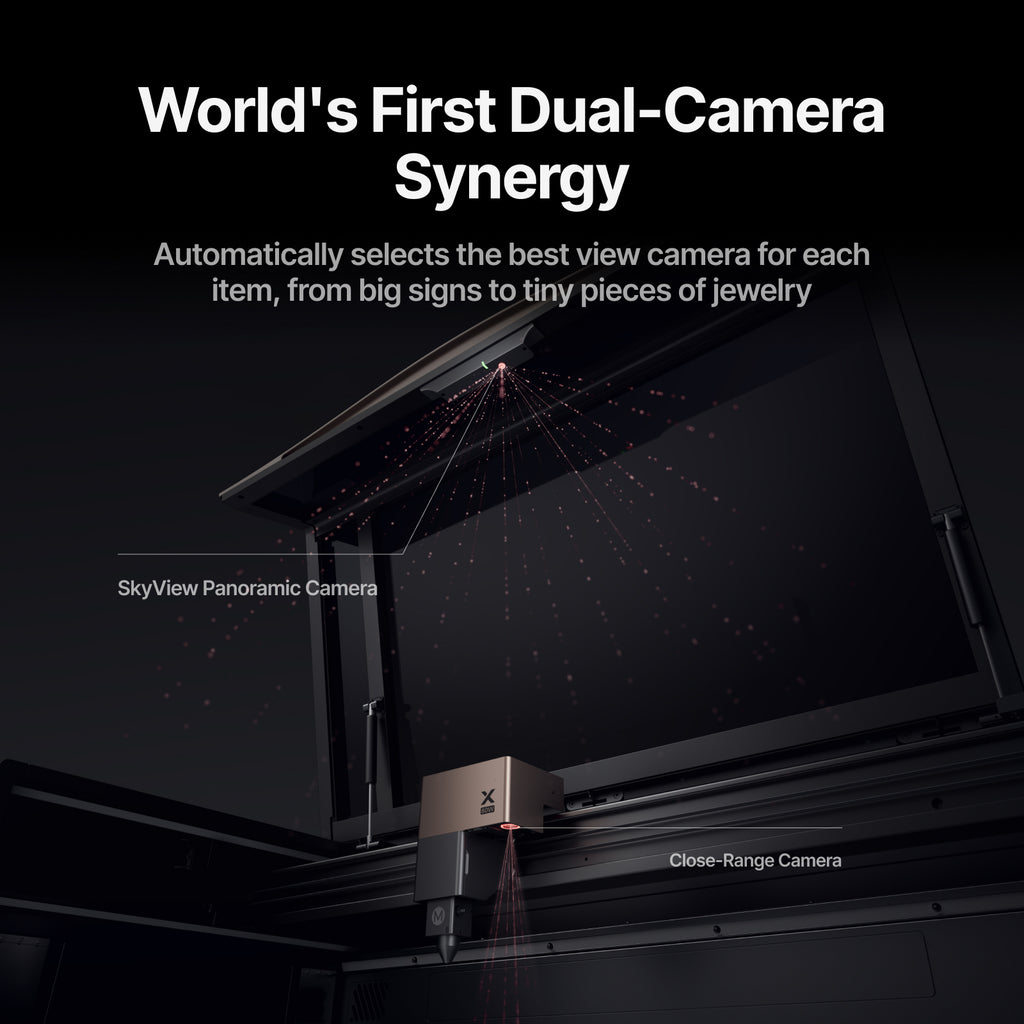

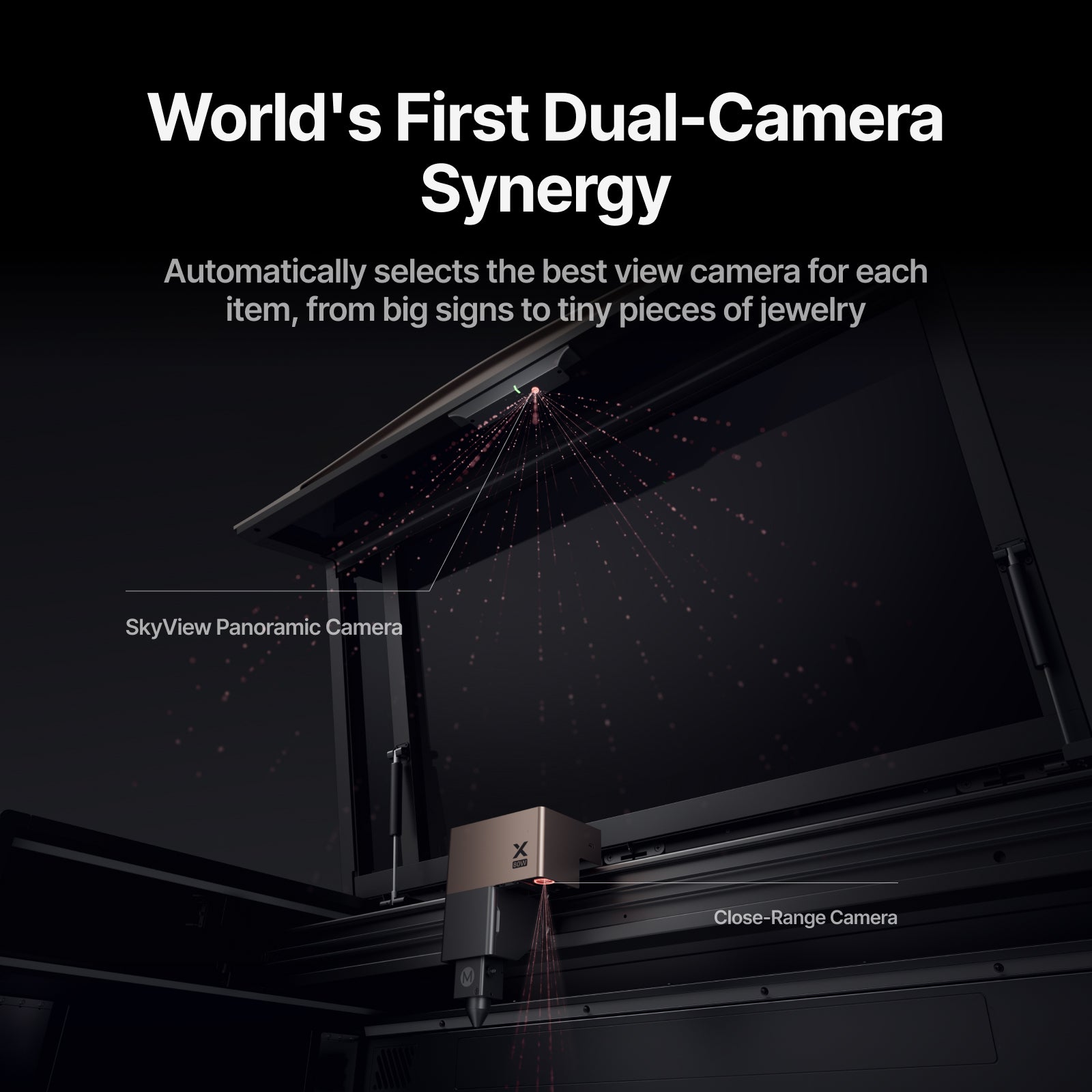

Big signs and tiny pieces both get a clear view.The 16MP SkyView camera covers the whole bed, and the close-range camera picks up the small stuff.

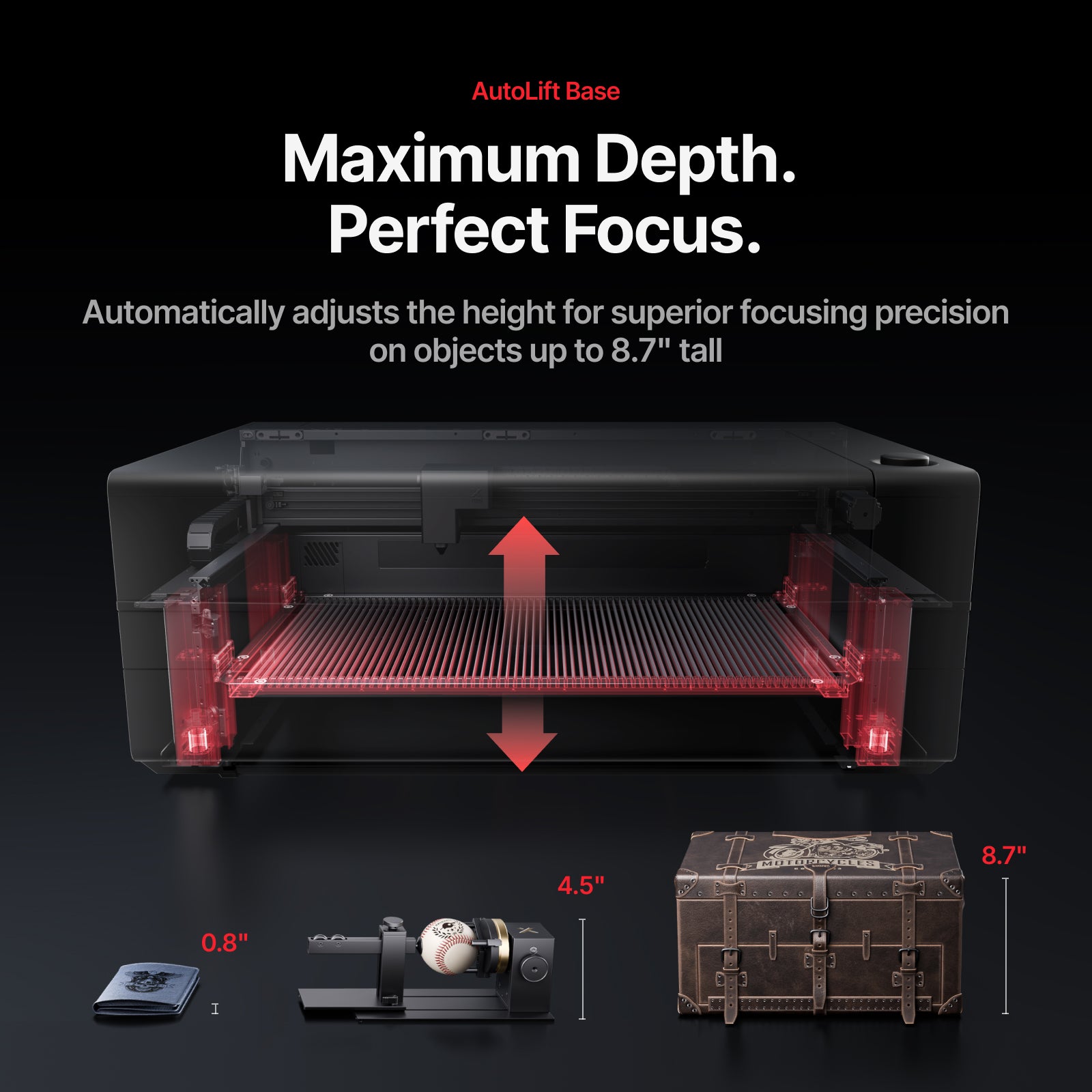

Taller pieces fit.The bed moves down to make room for items up to 8.66 inches tall.
Thick wood and acrylic, cut clean.

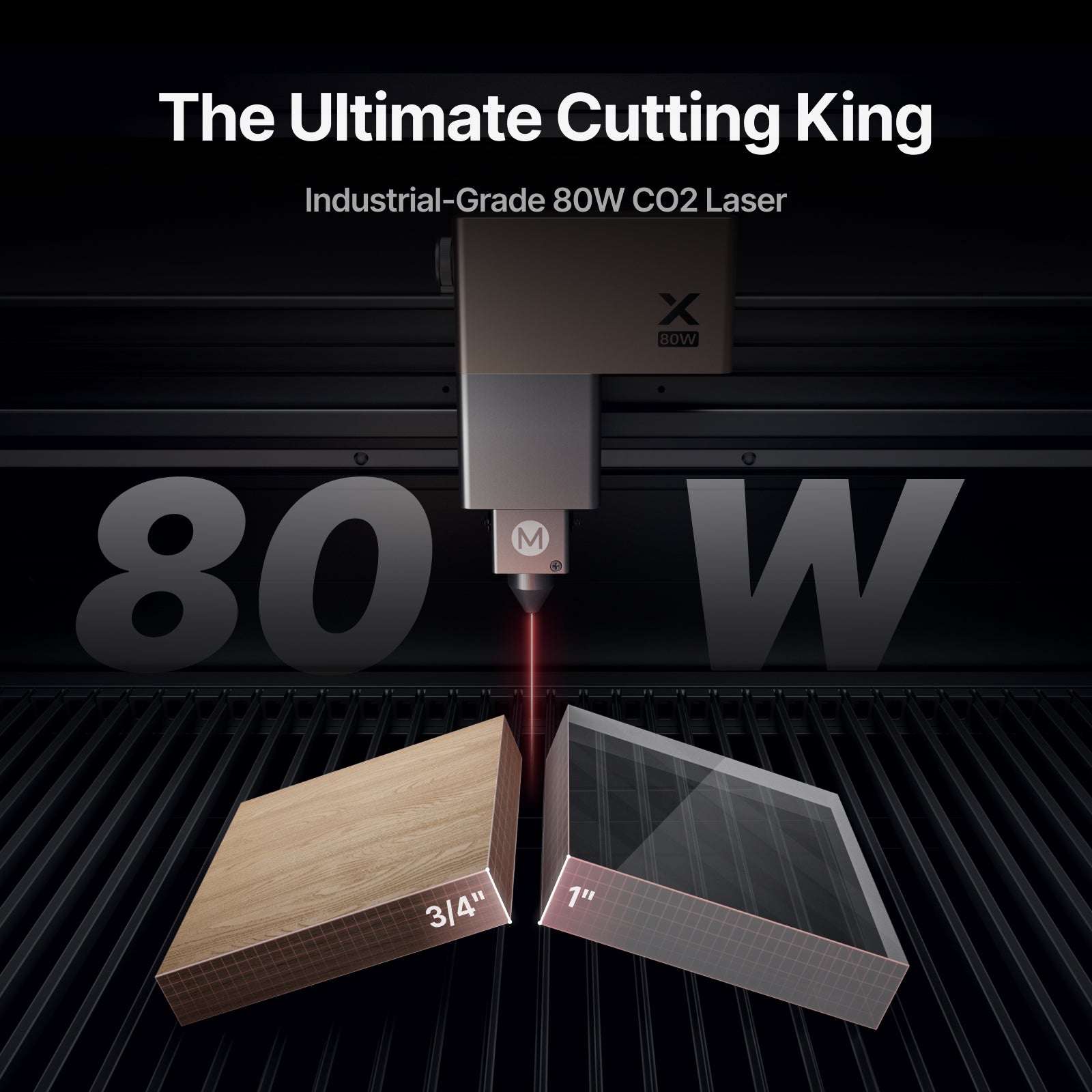

Thicker stock stops being a job you turn down. The P3's 80W CO2 laser cuts basswood up to 0.79 inch and acrylic up to 0.98 inch in one pass, with clean edges.

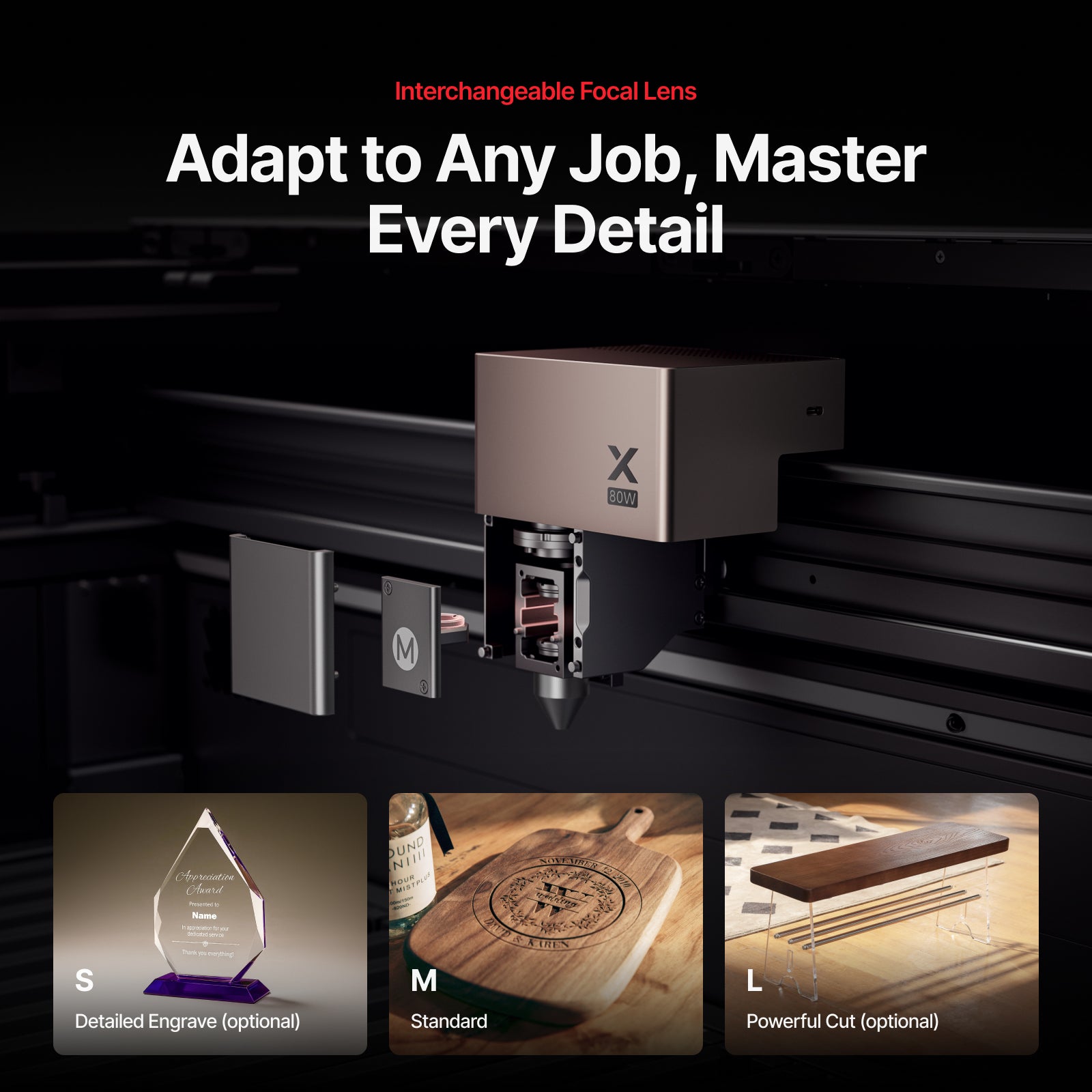

- Fine detail or heavy cuts from the same head.The M lens comes standard, and the optional S and L lenses are made for fine engraving and heavier cutting.

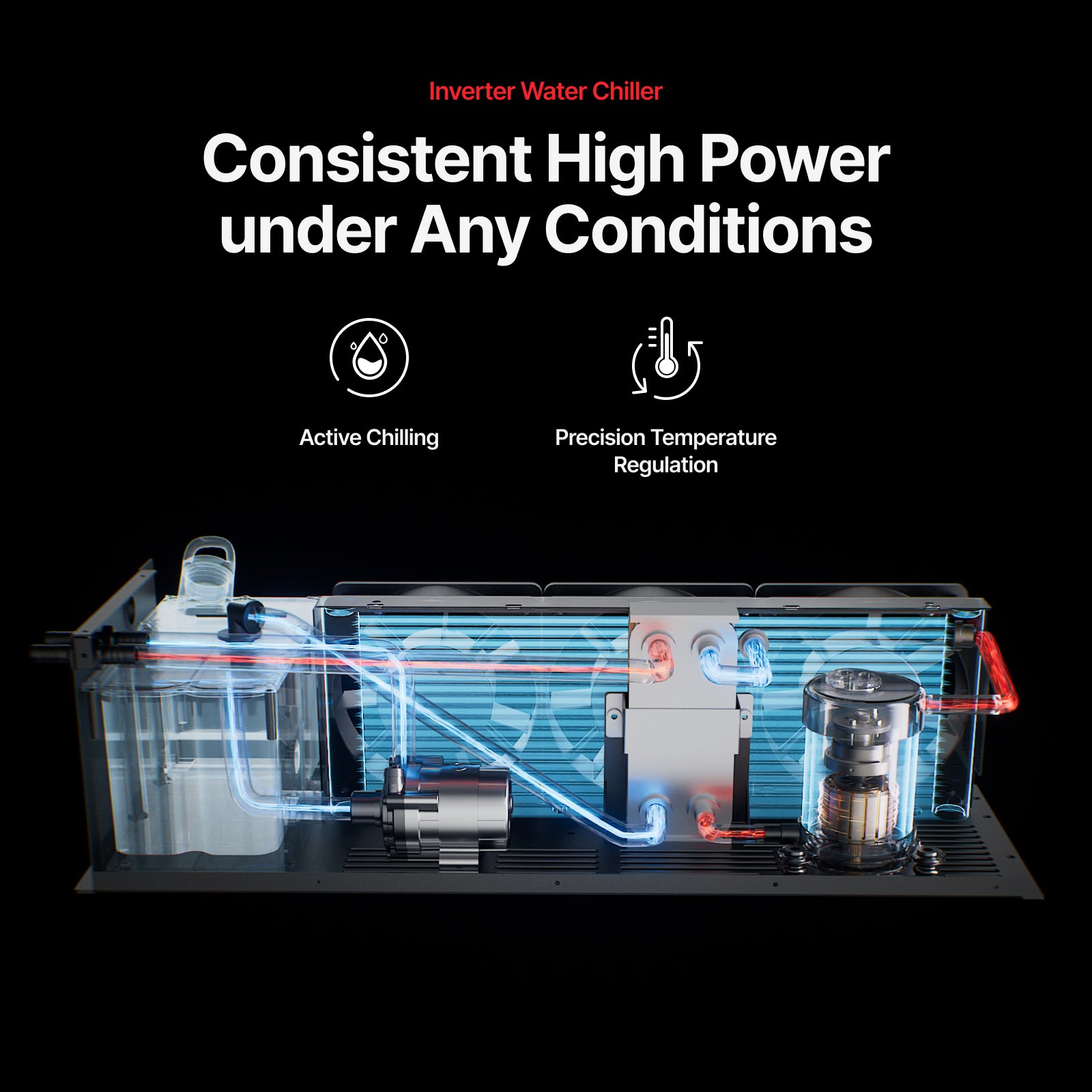

- Steady power, one less box.The water chiller is built into the machine. There's nothing extra to set up beside it.

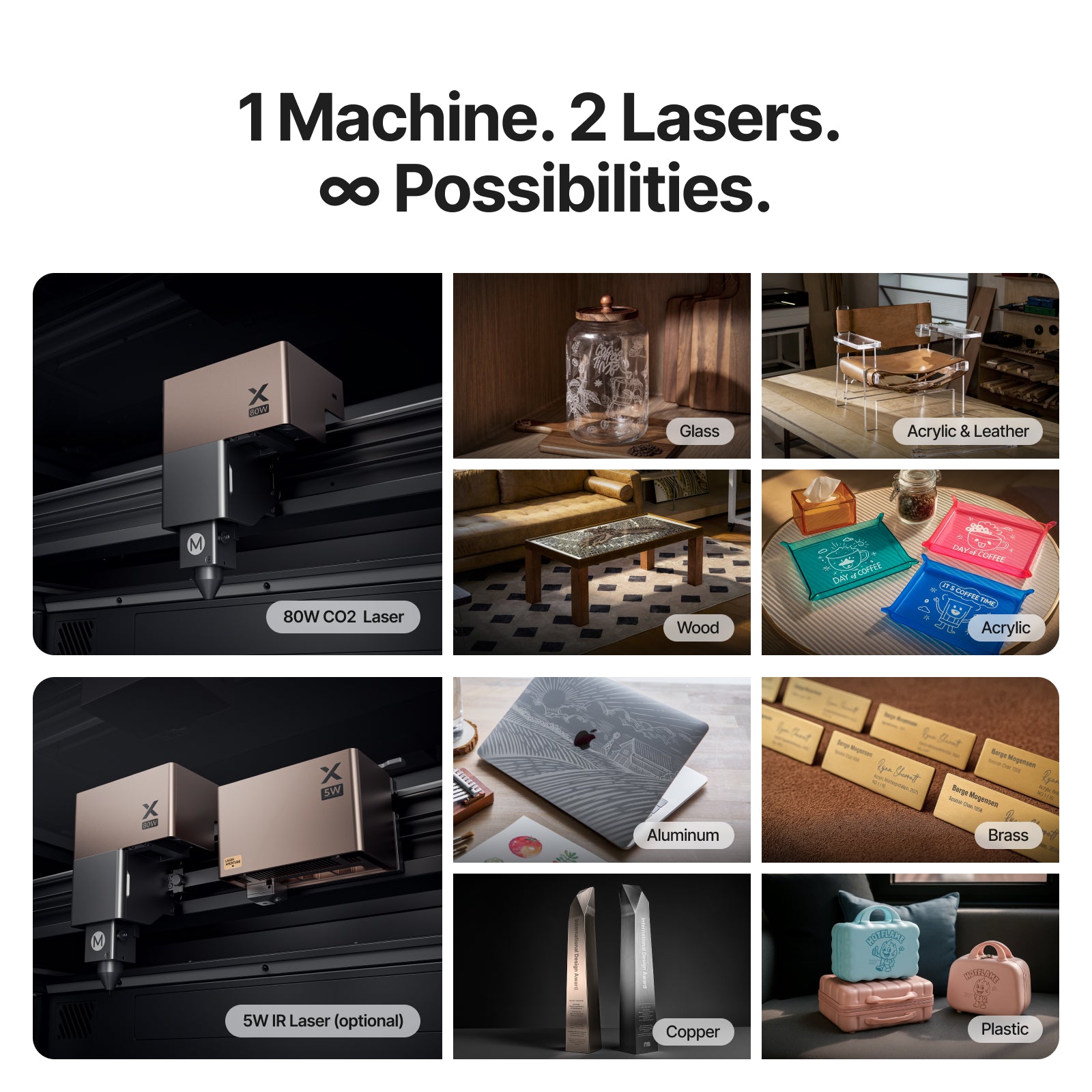

- Metal and plastic engraving when you're ready.Add the optional 5W IR laser module and the P3 engraves metals and plastics too. It's sold separately. None of the packages include it.
Watch it cut
How Many Materials Can It Really Cut?
Say yes to the big sign jobs.
Between the big bed and the 80W laser, you can take on the layered signs, wall pieces and furniture parts your old machine couldn't fit or cut.
3D Signage
Acrylic Wall Art Clock
Layered Wood Art
Acrylic Cabinet
Acrylic Wedding Sign
Wood Coffee Table

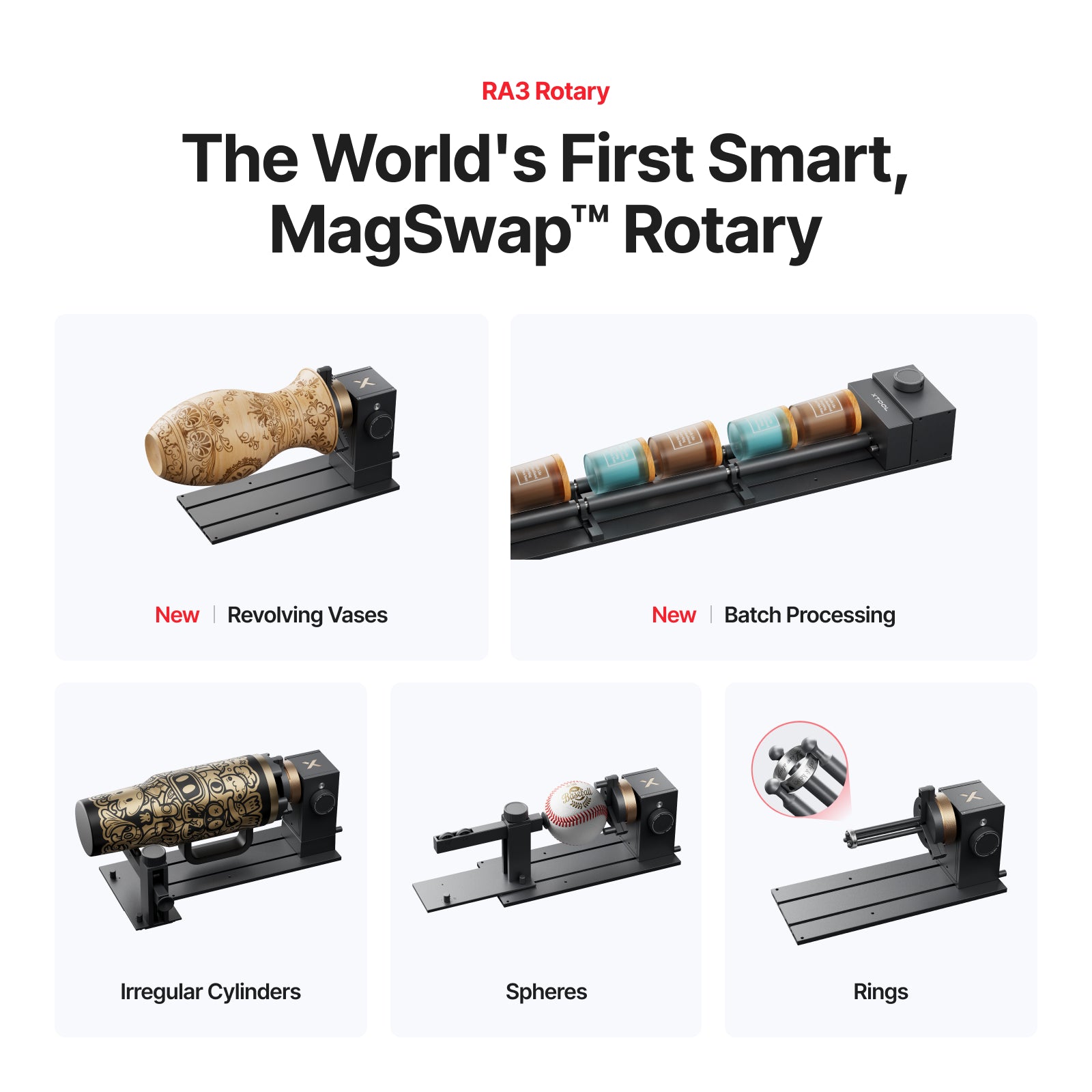

Round pieces too. With the RA3 Rotary you can engrave cylinders, spheres and rings up to 7.87 inches across. It's in both bundles.

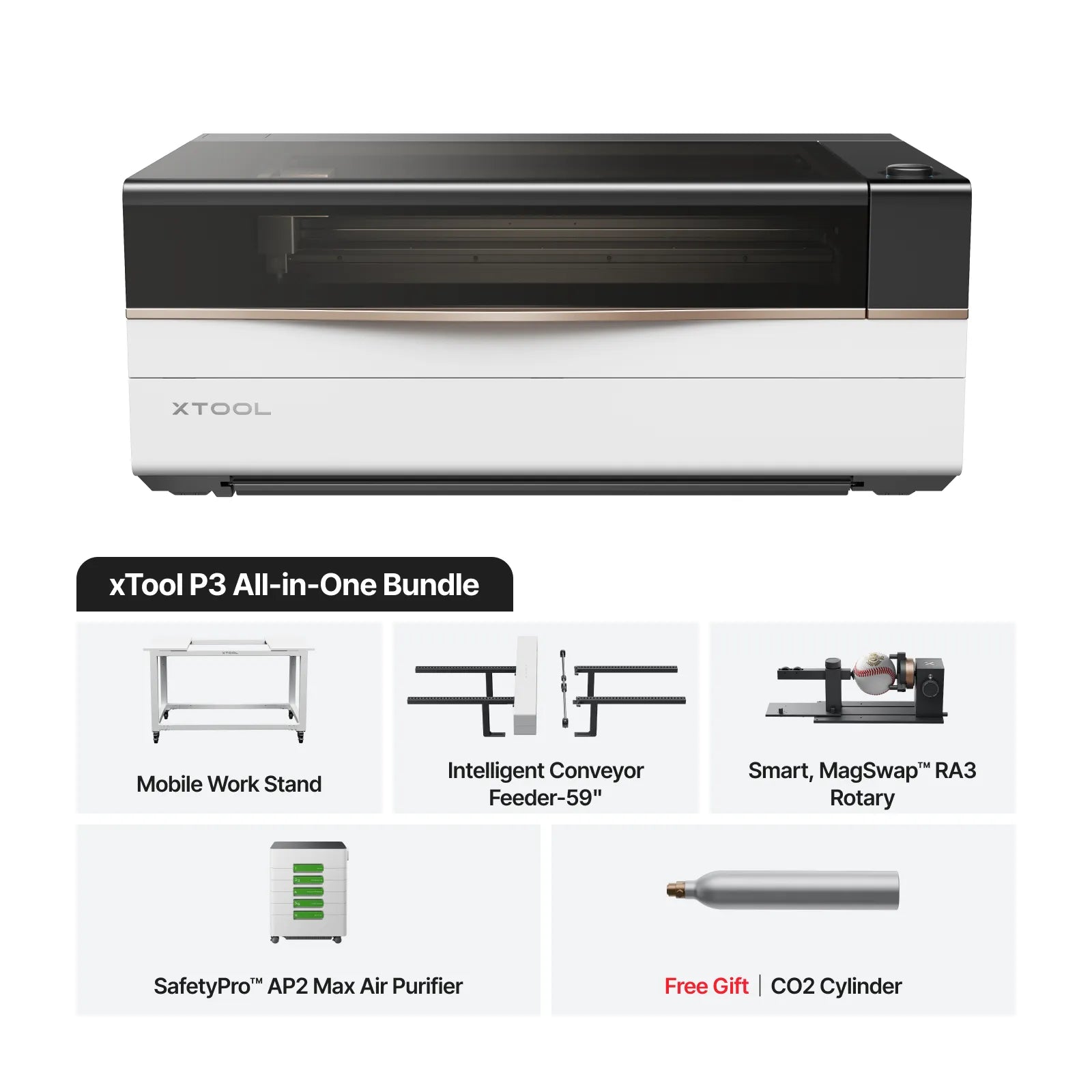

Pick the setup that fits your shop.

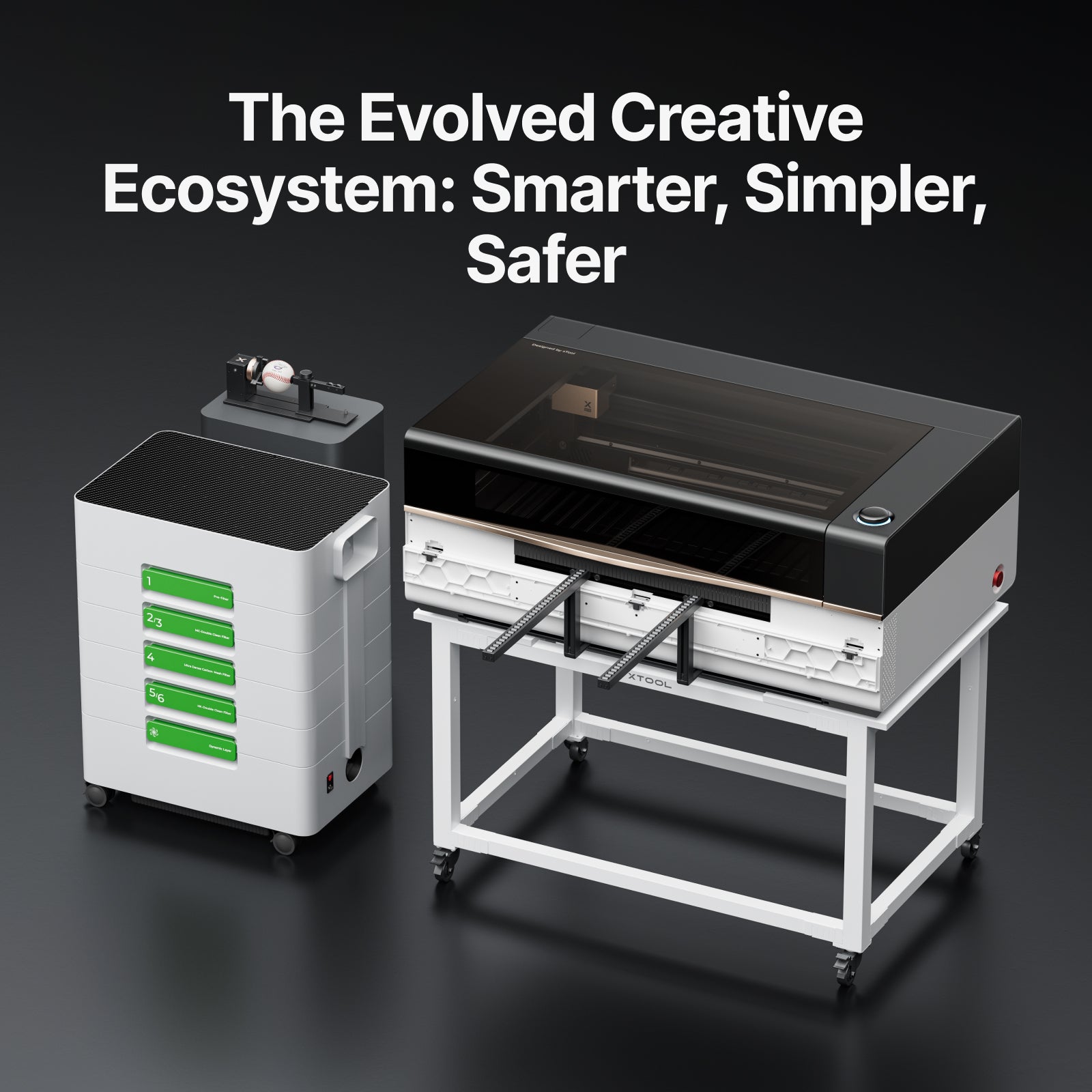

Every package has the same 80W laser and 36 x 18 inch bed. The bundles add a rolling stand and the tools for long boards, round pieces and cleaner air.
| 36 x 18 inch bed and 80W CO2 laser | Same | Same | Same |
|---|---|---|---|
| Autofocus, AutoLift bed and cameras | Same | Same | Same |
| Built-in water chiller | Same | Same | Same |

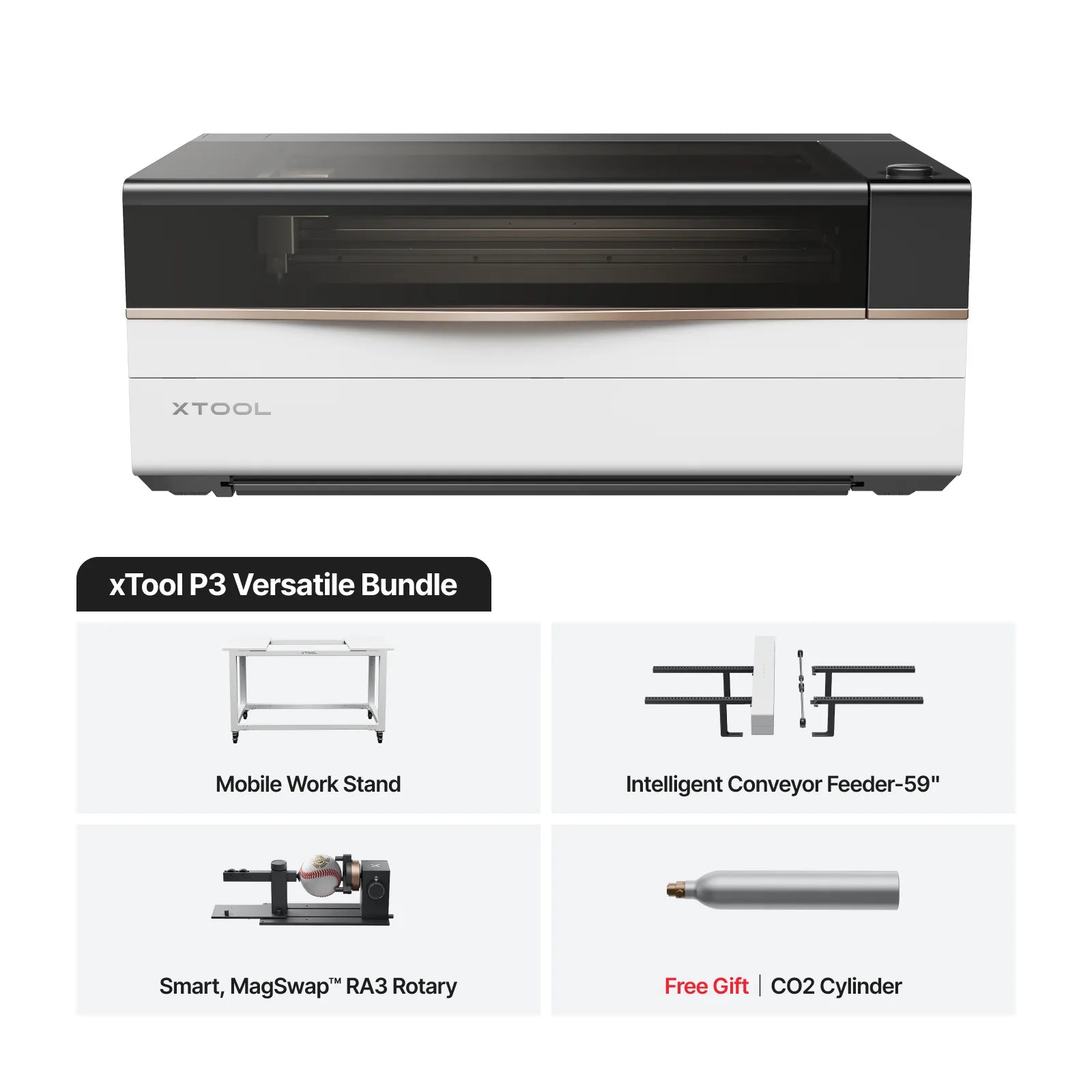

| Mobile Work Stand | Not included | Included | Included |
| Intelligent Conveyor Feeder (59 in) | Not included | Included | Included |
| RA3 Rotary | Not included | Included | Included |
| AP2 Max Air Purifier | Not included | Not included | Included |
The 5W IR laser module is sold separately. None of the packages include it.
What xTool P3 Laser Cutter owners say.
Full specs
Product details
Here's the full description, features and specs for the xTool P3 Laser Cutter.
The Ultimate CO2 Laser Workhorse with Intelligent Automation
Experience the xTool P3, the most powerful and intelligent CO₂ laser machine built for production-level efficiency. With an 80 W dual-laser option, expansive 36″ × 18″ work area, and fully automated “Place & Go” workflow, the P3 empowers professionals to create faster, safer, and smarter.
Features
- 80 W CO₂ laser and optional 5 W IR module for massively expanded material capability, now including plastics and metals
- 36″ × 18″ working area with optional Intelligent Conveyor Feeder for continuous, large-scale throughput

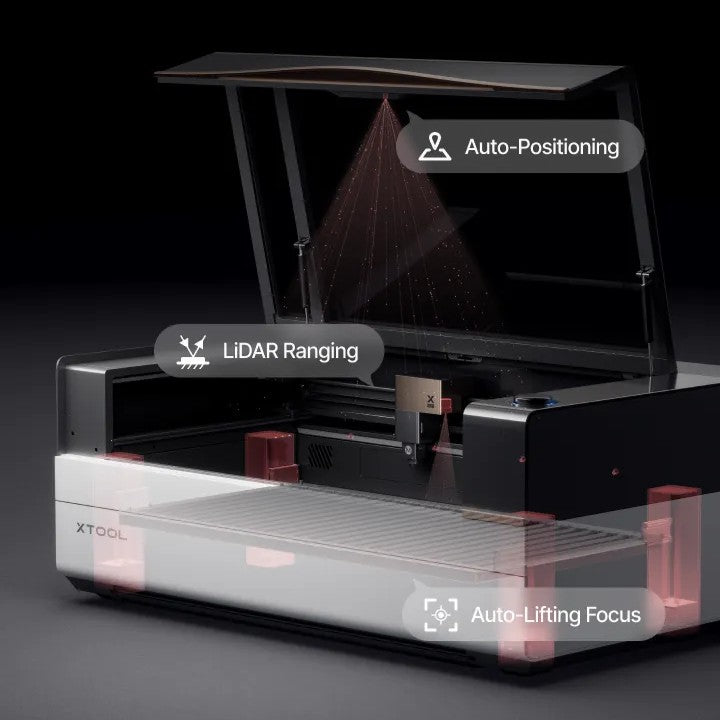

- Automated Creation System™ (ACS™) combining LiDAR autofocus, dual-camera positioning, and motorized AutoLift base for effortless precision
- Engrave cylindrical objects with smart RA3 Rotary accessory with 360° LiDAR mapping and MagSwap™
- Safety features: Class 1 safety certification, built-in fire suppression, multi-sensor vigilance (IR, temperature, vision), and active scrap-buildup alerts.
Benefits
- Boost productivity by cutting engagement time and increasing batch throughput thanks to fast speeds (1200 mm/s) and smart automation
- Expand business offerings: directly engrave 300+ materials, including metals and plastics, when outfitted with the optional IR laser
- Minimize setup errors and training needs with ACS™, providing “place your material and go” simplicity for even complex jobs
- Assure workplace safety and compliance, with Class-1 enclosure, fire detection/suppression, and visual/thermal sensors
- Scale operations seamlessly with accessories like the conveyor feeder and RA3 rotary for longer-run or cylindrical workflows
What's Included
- 1*xTool P3 Laser Cutter
- 1*Built-in Inverter Water Chiller
- 1*AutoLift Base (motorized Z-axis adjustment)
- 1*Dual HD (16 MP SkyView + detail) Camera Setup for Auto-Positioning
- 1*LiDAR Ranging Module for Autofocus
- 1*Class 1 Enclosure with integrated Fire Suppression and Multi-Sensor Safety System
Specifications
| Processing Capacity | |
|---|---|
| Laser Type | 80W CO2 Laser + 5W IR Laser (optional) |
| Processing Mode | Laser Cutting Laser Engraving |
| Supported Materials | Laser Cuttable: Wood, Acrylic, Fabric, Leather and more Laser Engravable: Metal, Glass, Bamboo, Ceramic, and more |
| Working Area | 36" x 18" (915 mm x 458 mm) |
| Max. Working Speed | 47.2 ips (1200 mm/s), X-axis Acceleration 19 600 mm/s² |
| Max. Laser Cutting Capacity (Basswood) | 0.79" (20 mm) in ONE PASS |
| Max. Laser Cutting Capacity (Acrylic) | 0.98" (25 mm) in ONE PASS |
| Max. Processing Height | 8.66" (220mm) |
| Max. Rotary Engraving Diameter | 0 - 7.87" (0 - 200 mm) |
| Smart Software | |
|---|---|
| Operating System | Windows/macOS |
| Connection Method | USB/Wi-Fi |
| Supported Files | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| AImake Compatibility | Yes |
| Max. Working Speed | 47.2 ips (1200 mm/s), X-axis Acceleration 19 600 mm/s² |
| Easy Operation | |
|---|---|
| Pre-assembled | Yes |
| ACS™ (Automated Creation System™) | Yes |
| Built-in Camera | 16 MP SkyView Panoramic Camera + Close-range Camera + Side Camera × 2 |
| Positioning Method | Dual-Camera Positioning |
| Focus Mode | Autofocus |
| Ranging System | LiDAR Ranging System |
| Preview Method | Smart Camera Preview |
| Accuracy & Precision | |
|---|---|
| Laser Spot Size | S Focal Lens: 0.0055" × 0.0063" (0.14 mm × 0.16 mm) (optional) M Focal Lens: 0.0059" × 0.0071" (0.15 mm × 0.18 mm) (standard) L Focal Lens: 0.0071" × 0.0079" (0.18 mm × 0.20 mm) (optional) |
| Positioning Precision | 0.0079 (0.2 mm), Camera |
| Motion Accuracy | 0.00039" (0.01 mm) |
| General Information | |
|---|---|
| Safety Certification | Class 1 Laser Safety |
| Product Dimensions | 49.2" × 30.7" × 19.5" (1250 mm × 780 mm × 496 mm) |
| Product Weight | 231.5 lb (105 kg) |
| Max. Machine Input Power | 1400 W |
| Power Adapter Input Voltage | 100 V - 240 V, AC 50 Hz |
Questions before you buy
Will the P3 fit in my shop?
Give it a permanent home on a sturdy table or the Mobile Work Stand that comes with both bundles. It measures 49.2 x 30.7 x 19.5 inches, weighs 231.5 lb and arrives pre-assembled. Leave room for the lid to open and for your venting.
How do I handle the smoke and fumes?

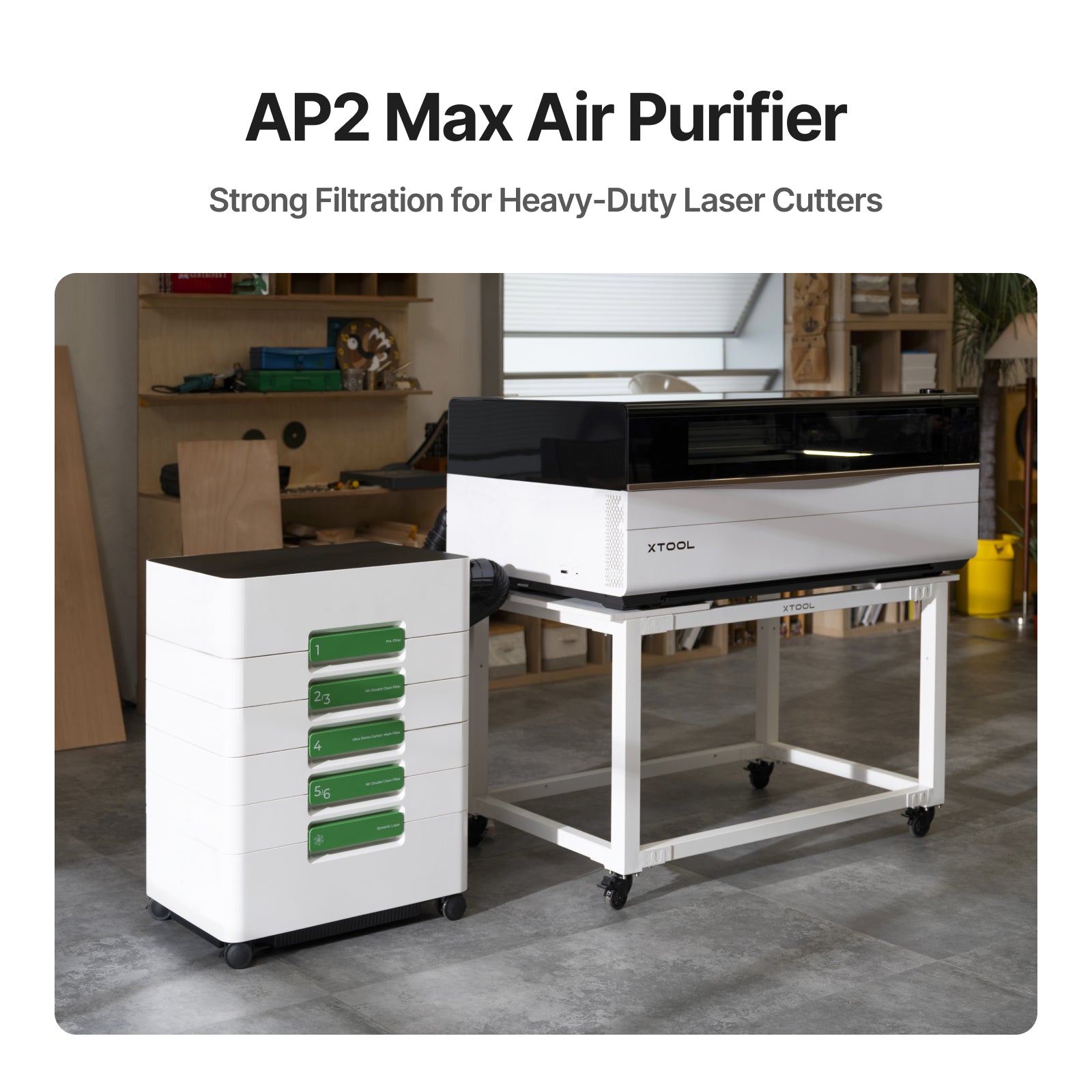

You'll need to vent the P3 outside, or run it through an air purifier. An IF2 2.0 Inline Fan comes with the P3. The All-In-1 Bundle includes xTool's AP2 Max Air Purifier. Tell us about your space and we'll help you work out what fits.
What can it cut and engrave?
The 80W CO2 laser cuts wood, acrylic, fabric, leather and more, and engraves glass, bamboo, ceramic and more. It cuts up to 0.79 inch basswood and 0.98 inch acrylic in one pass. Add the optional 5W IR module and you can engrave metals and plastics too.
Is it safe to run in my shop?

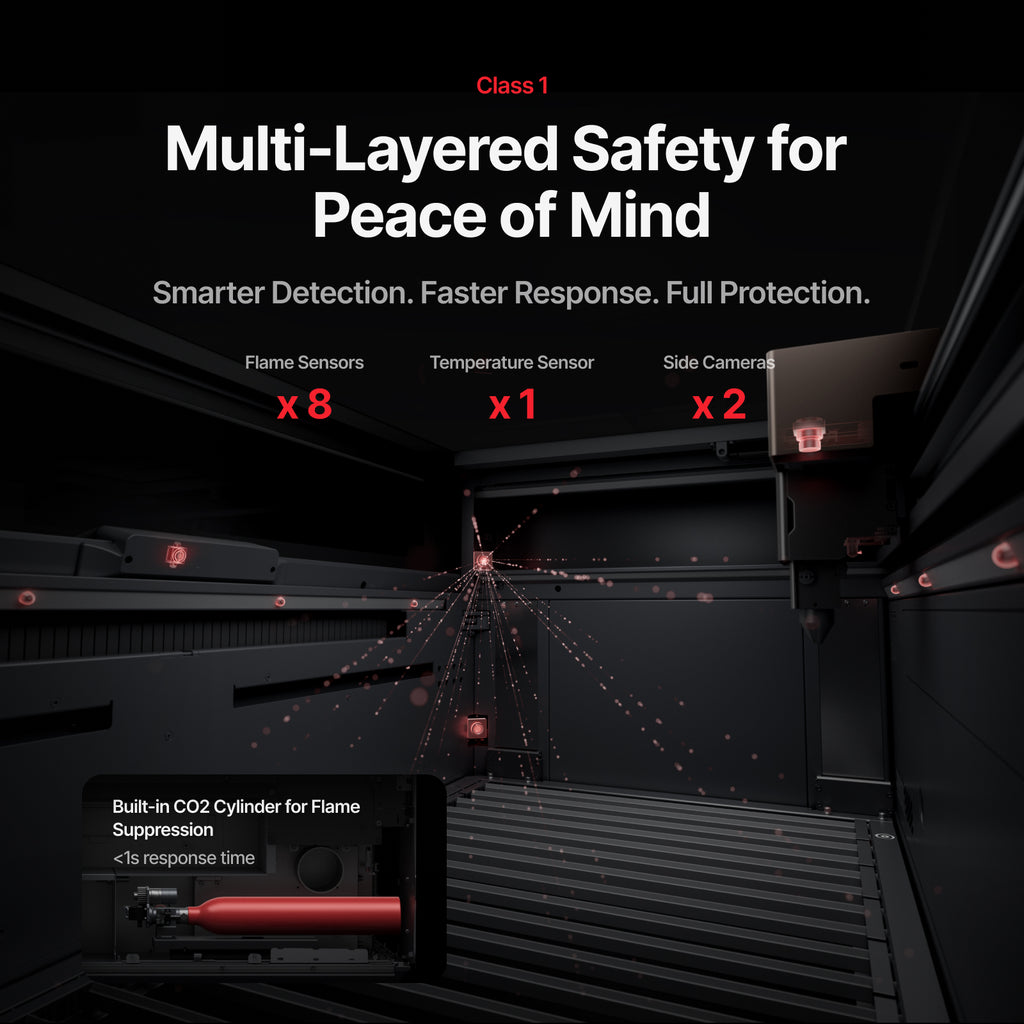

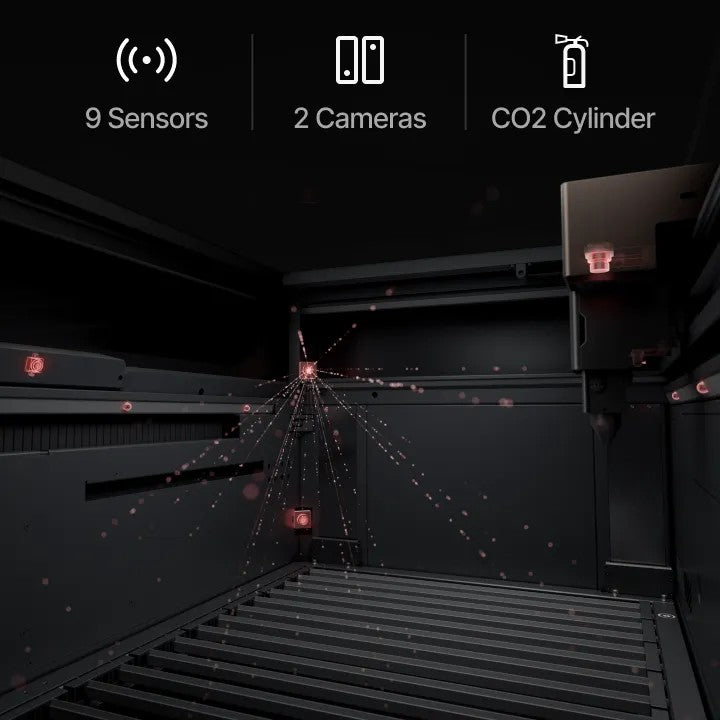

It's a Class 1 enclosed laser with eight flame sensors, a temperature sensor, two side cameras and a built-in CO2 fire suppression system. Even so, stay with it while it runs. Never leave a laser alone during a job.
What software does it use?
Your SVG, DXF, JPG, PNG, BMP and TIF files open in xTool Studio, which runs on Windows or macOS and connects to the P3 by USB or Wi-Fi.
