Hybrid DTG + DTF
Hybrid DTG and DTF Printer

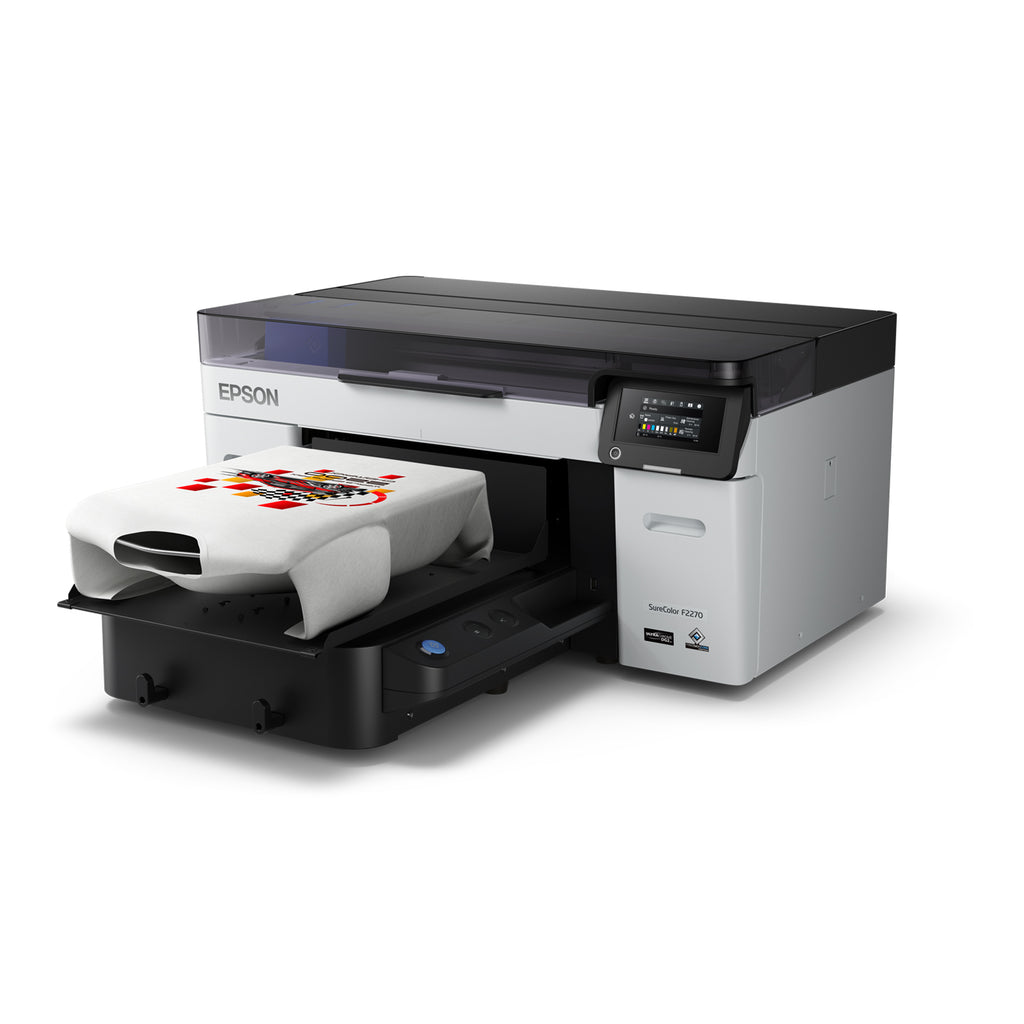

Epson SureColor F2270 Hybrid DTG and DTF Printer
SKU: EPSON-SCF2270SE
Rated 5.0 out of 5
One printer that runs direct to garment and direct to film, so the order you turn away today stays in your shop.
Epson engineered for image quality, easy operation and value
Valid through 10/31: After $1,000 Epson instant rebate, net price of $11,995
$11,995.00$12,995.00Printer, six 800 mL UltraChrome DG2 ink packs, the medium hanger platen and the maintenance kit, all in the box.
Multiple financing options, including Affirm and Synchrony. View financing options
Buy it direct, or ask a specialist what the whole line costs before you commit to the printer.
- Take cotton and polyester orders on one machine Print direct on 100% cotton to 50/50 blends, then switch to film for polyester and uniquely shaped products.
- Print apparel for kids and infants Ink certified by OEKO-TEX ECO PASSPORT and approved to GOTS, safe for adults and children, including infants.
- Keep printing with fewer stops Head height adjusts to each garment on its own, and six 800 mL bulk ink packs in the box help reduce ink changes.
- Epson repairs it at your shop One-year limited warranty with on-site repair, usually next business day, extendable to five years.
Need a hand?

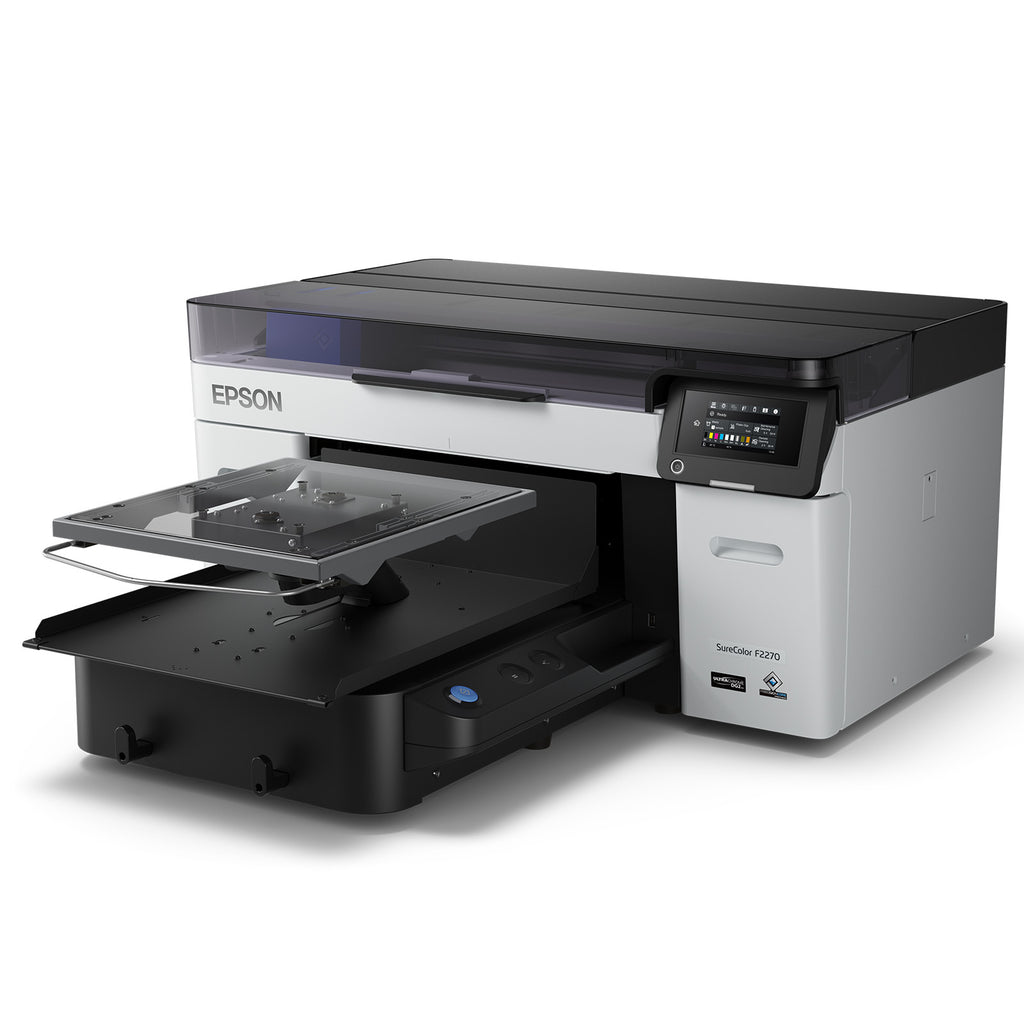

The whole F2270, platen out
Why Hybrid
Two methods. One Epson.
Most shops buy one machine for garment printing and a second for everything else, then pay for both twice: once at purchase, and again in floor space. The F2270 runs both jobs on one printer, one ink system and one footprint. You pick garment or film per job in Epson Garment Creator 2, and the hardware never changes.
- One footprint, two jobsTake on both jobs without clearing floor space for a second printer. One machine, 39 by 54 inches.
- Switch in softwareChange from garment to film between jobs without touching hardware. Film is a mode in Garment Creator 2.
- Full fronts out of the cartonRun adult full fronts without buying a platen first. The medium hanger platen in the box prints 14 by 16 inches.
- Quote kidswear without an argumentBid school and kids accounts with confidence. The ink is OEKO-TEX ECO PASSPORT and GOTS approved.
One Machine vs Two
What each method covers, and where one machine pays for itself.
A garment-only printer and a film-only printer each cover part of the catalog. The F2270 covers both, so the job you would have sent out, or turned down, stays on your own floor.
Capability
Garment printing
alone
alone
Film transfers
alone
alone
F2270
Both
Both
Printing straight onto cotton and 50/50 blends
Yes
Pressed transfer
Yes
Polyester and performance fabric
Limited
Yes
Yes
Materials and uniquely shaped products
No
Yes
Yes
White ink for dark and colored garments
Yes
Yes
Yes
Both methods from one machine and one footprint
Buy two
Buy two
One F2270
Both methods finish on a heat press, which is not included. Film also needs film, adhesive powder and a way to cure it. The rest of the line is listed further down this page, and an item that will not sit flat under a press needs a press that can reach it. Ask before you promise one.
By the Numbers
Built for a working shop, not a hobby bench.
1200×1200dpi
Max resolution, so detail survives the reorder
16×20in
Full front print area on the large platen
6×800mL
Ink packs in the box before you order any
100 to 120V
Standard shop power, 46 W or less running
The Catalog
What each method puts in front of a customer.
Garment printing takes the cotton work. Film takes the polyester, the other materials and the shapes a platen cannot hold. One machine quotes all of it.
Garment
Cotton and blends
Print straight onto the tees that move most, with no transfer step. Ink runs 100% cotton to 50/50 blends.
Garment
Dark and colored garments
Quote black tees instead of passing them on. A dedicated White channel plus pre-treatment on cotton.
Film
Polyester and performance
Take on the polyester shirt work you turn down today. Film transfers press onto polyester at 284 F.
Film
Shapes a platen cannot hold
Say yes to the item a platen cannot hold. Transfers press onto materials and uniquely shaped products.
What Epson F2270 owners say.
Based on 4 reviews
100%
of reviewers would recommend this product to a friend
Customer photos and videos
4 Reviews
Reviewed by Shelley B.
Verified Buyer
I recommend this product
Best purchase of 2024
After thorough research and evaluation, we decided to invest in in the Epson Sure Color F2270 Hybrid DTF and DTG Printer and it has exceeded our expectations in every way. The equipment has significantly improved our production capacity and quality of the apparel we offer our clients. We had the pleasure of working with Estevan Romero through the purchase process and the experience was nothing short of exceptional. From start to finish Estevan demonstrated professionalism, expertise, and an incredible dedication to understanding our unique needs.
Loading...
Was this helpful?
Reviewed by Joseph L.
Verified Buyer
I recommend this product
Game changer
Although I'm still learning a few tips and tricks I am amazed by this printer. From install to maintenance I'm falling in love! Well worth it!
Loading...
Was this helpful?
Reviewed by Joyce S.
Verified Buyer
I recommend this product
Simply amazing!
I started my customization journey with sublimation and white toner printers, then added this beast & am so glad I did! I will continue to sublimate when possible, but the feel and speed of the DTG prints is amazing. There is no comparison between white toner prints and DTG - needless to say, I’ll be selling my white toner printer! 🤣 Extremely happy with my purchase!
Loading...
Was this helpful?
The Workflow
Two paths from the same printer, start to finish.
Garment printing goes onto the shirt. Film printing goes onto a sheet you press later. Both finish on a heat press, which is required and sold separately, and film needs two press passes rather than one.
DTG, direct to garment
1
Pre-treat
Pre-treat the garment before it goes on the platen. Cotton and polyester take different formulas.
2
Load and print
Nobody sets head height by hand between garments. The printer measures thickness and adjusts itself.
3
Cure
The print is not finished until heat sets it. A heat press is required and does not come in the box.
DTF, direct to film
1
Set up for film
Film work has its own setup, and skipping it puts the printhead at risk. A platen larger than the film, grip pad off, White ink mode.
2
Print to film
Queue transfers ahead of the press so printing and pressing stop competing. Film is a mode in Garment Creator 2.
3
Powder and cure
Skip the cure and the powder does not bond, so this stage is not optional. 338 F for 150 seconds in an oven.
4
Transfer
This is the stage the customer sees, so hold the values. 338 F for 25 seconds on cotton, 284 F on polyester.
5
Fix the ink
The job is not done at the transfer. A second five second press pass fixes the ink into the media.
Before you print film
- Take the grip pad off the platen.
- Use a platen whose printable area is larger than the film.
- The sleeve platen and the medium grooved platen cannot be used.
- Select White ink mode, or the powder will not stick.
- Tape the film down with opaque tape, never transparent tape.
- No pre-treatment on the film. That is a garment step only.
- Keep powder away from the printer.
| Stage | Media | Temperature | Time | Pressure |
|---|---|---|---|---|
| Cure the powder, conveyor oven | Film | 338 F (170 C) | 150 seconds | n/a |
| Transfer to the garment | Cotton | 338 F (170 C) | 25 seconds | 4.2 N/cm2 |
| Transfer to the garment | Polyester | 284 F (140 C) | 25 seconds | 4.2 N/cm2 |
| Fix the ink | Cotton | 338 F (170 C) | 5 seconds | 4.2 N/cm2 |
| Fix the ink | Polyester | 284 F (140 C) | 5 seconds | 4.2 N/cm2 |
Values are a starting point. Film, powder, press and ink coverage all move them, so dial in a test sheet before a production run. An oven cures the powder; it cannot do either press stage.
Watch both modes run on the F2270.
The Rest of the Line
Transfer film
Adhesive powder
Heat press
Pre-treatment
Platens and grip pads
Ink, maintenance and coverage
What the printer does not come with.
A printer on its own does not finish a shirt. Here is the rest of the line, so you can cost the whole job before you sign for the machine rather than after.
Transfer film
Film is what carries the print, so it belongs in every job cost.
See F2270 transfer filmAdhesive powder
Powder is the glue, and it needs heat to set. Cure it at 338 F for 150 seconds before you press.
See the Seismo S20 DTF Powder StationHeat press
Nothing finishes without one, on either path. An oven cannot transfer the film and cannot fix ink.
See heat pressesPre-treatment

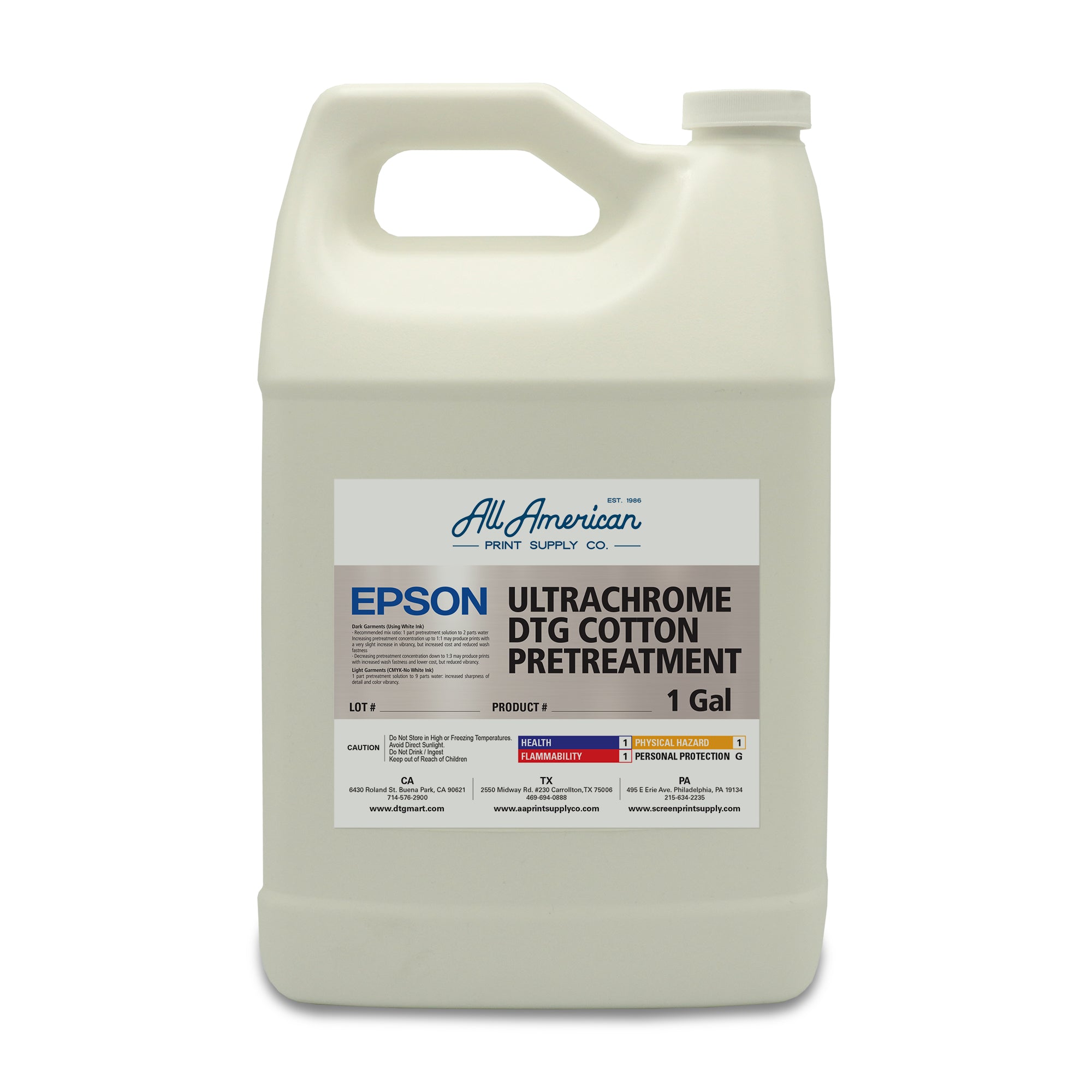

Garment prints need it to hold, film prints must not get it. Two formulas, one for each fabric type.
See Epson DTG UltraChrome Pretreatment LiquidPlatens and grip pads
Bigger prints need the large platen, and film work needs the grip pad off the platen completely.
See F2270 platensInk, maintenance and coverage
Six ink packs come in the box, and the reorder keeps the line moving. Plans extend coverage to 5 years.
See F2270 ink and suppliesThe printer is built for Epson genuine packs and ink, not third-party ink. A Floor Stand Table for Epson F2000/F2100/F2270/F1070 is available separately if the machine is not going onto a bench.
Everything under the hood.
Printing
- Printhead
- PrecisionCore MicroTFP, 400 nozzles x 8 channels
- Max resolution
- 1200 by 1200 dpi
- Ink
- UltraChrome DG2, 5 color, CMYK plus White
- Ink optimized for
- 100% cotton through 50/50 polyester blends
- Ink in the box
- Six 800 mL packs plus a maintenance liquid pack
Printable area, by platen
- Large hanger
- 16 by 20 in
- Medium hanger and medium grooved
- 14 by 16 in
- Small hanger
- 10 by 12 in
- Extra small
- 7 by 8 in
- Sleeve
- 4 by 4 in
The medium hanger platen and a medium grip pad come in the box. The 16 by 20 in area needs the large hanger platen, sold separately.
Connect and run
- Wired
- Hi-Speed USB 2.0 x2 and 10/100/1000Base-T Ethernet
- Wireless
- Not listed, the printer is wired only
- Operating systems
- Windows 8.1 64-bit or later, macOS 10.12 or later
- Software
- Epson Garment Creator 2, plus leading third-party RIPs
- Off the network
- Prints from a connected USB memory device
- Control panel
- 4.3 in touchscreen
- Fleet monitoring
- Epson Cloud Solution PORT
In the shop
- Dimensions
- 39 by 54 by 20 in
- Weight
- 209 lb
- Shipping carton
- 63 by 48 by 33.5 in, 328 lb
- Noise
- Less than 37 dBA
- Power
- AC 100 to 120 V, 50 to 60 Hz, approx. 46 W or less running
- Operating range
- 50 F to 95 F, 20% to 80% humidity, no condensation
Coverage and certification
- Warranty
- 1 year limited, US and Canada
- Service
- On-site repair, usually next business day, plus weekday telephone support
- Extended plans
- Epson Preferred Plus, 1, 2 and 4 year plans, to a total of 5 years
- Ink certification
- OEKO-TEX ECO PASSPORT, and ECOCERT to GOTS, safe for adults and children including infants
- Compliance
- RoHS compliant
Plan the delivery before the install: the carton is 63 by 48 by 33.5 in at 328 lb, so measure the doorway and the path to the bench. Next business day service depends on a request by 1 p.m. Pacific on a weekday, and geographic limits apply. A heat press is required for both methods and is not included.
Full specs
Product details
What's in the box, the full specs, what it works with, and Epson's spec, setup and maintenance sheets.
Save $1,000 with an Epson instant rebate valid through [09/30]
Take DTG and DTFilm printing to the next level with this hybrid print solution
Want to know more about the Epson SureColor F2270 Printer?
Epson F2270 Spec Sheet
SureColor F2270 Setup Sheet
Epson F2270 Maintenance Guide
Open new doors for your printing business with the versatile SureColor® F2270. Purpose-built for both direct-to-garment (DTG) and DTFilm printing, this hybrid printer combines outstanding image quality, easy operation and great value.
With DTFilm printing capability, go beyond traditional garment printing and transfer to a wider variety of materials, including uniquely shaped items. Featuring a PrecisionCore® MicroTFP printhead and next-generation UltraChrome® DG2 Ink, the F2270 delivers vibrant colors and incredible detail at impressive speeds.
What’s more, the printer’s cartridge-free bulk ink pack system helps reduce ink replacement frequency. Featuring automatic garment thickness adjustment, robust Epson® Garment Creator 2 software, easy user maintenance features to help reduce downtime, and an intuitive design with a large 4.3" touchscreen interface and quick-load platen, the innovative F2270 brings you a new level of productivity and efficiency to meet customer demand head-on.
What's in the box:
- SureColor F2270 Printer
- Medium Hanger Garment Platen
- Set of six 800 mL Ink Packs
- Maintenance Liquid Pack, Medium Grip Pad
- Grip Pad Tool
- Power Cord
- Ink Waste Bottle
- Tubing and Holder
- Printer Maintenance Kit and User Guide Kit (includes Warranty and Start Here poster)
Benefits:
- Provides a perfect balance of outstanding image quality, user-friendly operation and affordability.
Features:
- PrecisionCore MicroTFP printhead with Nozzle Verification Technology — delivers high-quality print output at impressive speeds
- UltraChrome DG2 Ink — next-generation direct-to-garment (DTG) ink produces incredible print detail; cartridge-free bulk ink pack system helps reduce ink replacement frequency
- Hybrid printing — DTG and DTFilm print capabilities to support a wide range of materials and uniquely shaped products
- Automatic garment thickness optimization — adjusts printhead height and optimizes print quality without user intervention
- Low maintenance — dedicated cleaning solution channels and fabric head wiper system help reduce downtime
- Intuitive design — flattop surface for holding items; large 4.3" touchscreen interface with ergonomically placed control buttons
- Easy-to-use, quick-load platen — assists with garment alignment and helps reduces loading times
- Intuitive, easy-to-learn workflow — Epson Garment Creator 2 software features improved processing time and high-resolution processing for exceptionally detailed and vibrant prints
- Epson Cloud Solution PORT1 — provides live production monitoring of your printer fleet status, including production rates and printer utilization
- Turnkey solution, fully supported by Epson — includes 1-year limited warranty with on-site service; extended service plans available
Specifications:
- Dimensions: 39" x 54" x 20"
- Weight: 209 lb
- Acoustic Noise Level: Less than 37 dBA according to ISO 7779
- Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C
- Operating: 20% – 80% (no condensation)
- Voltage: AC 100 V – 120 V
- Frequency: 50 Hz – 60 Hz
Compatible With:
- On-site repair
- Usually next business day
- Coverage to five years
- Weekday phone support
Coverage
On-site service, not a shipping label.
A printer you cannot keep running is a stalled production line, not an asset. The F2270 carries on-site service in its first year, and coverage can run to five years before you ever need it.
Repair at your shopA dead printer stalls the whole line, so a technician comes to your shop, usually the next business day.Next business day service depends on a request by 1 p.m. Pacific on a weekday. Geographic limits apply.
Coverage to five yearsKeep the machine covered well past year one. Epson Preferred Plus plans run to a total of five years.
A person on the phoneTalk to a person when a job is stuck. Toll free Epson telephone support runs Monday through Friday.
Watch it from the officeSee production and utilization without standing at the printer. Cloud Solution PORT monitors it.
Before you reach out.
What comes in the box, and what do I still have to buy?
The box holds the printer, a medium hanger platen and medium grip pad, six 800 mL UltraChrome DG2 ink packs, a maintenance liquid pack and maintenance kit, the ink waste bottle with tubing and holder, the power cord and the guide kit. You still buy a heat press, which both methods need, plus pre-treatment for garment work and film, powder and a way to cure it for film work. The large platen is what takes you from 14 by 16 in to 16 by 20 in. Ask a specialist to quote the whole line with the machine, not just the printer.
When do I use garment printing, and when do I use film?
Garment printing goes straight onto cotton and blends, and the ink is optimized for 100% cotton through 50/50 polyester. Film covers what garment printing cannot reach: polyester, other materials, uniquely shaped products, and any job you would rather print now and press later. You pick between them in Garment Creator 2, per job, with no hardware change.
What does film printing actually take?
More than a mode change, which is why the workflow above spells it out. The grip pad comes off, the platen has to be larger than the film, the sleeve and medium grooved platens cannot be used, and White ink mode is mandatory or the powder will not stick. After printing, the powder cures at 338 F for 150 seconds, the transfer presses for 25 seconds, then a second five second pass fixes the ink. An oven cures powder but cannot do either press stage.
How does it connect, and is there Wi-Fi?
Hi-Speed USB 2.0 and Gigabit Ethernet. Wi-Fi is not listed, so plan for a cable. It runs Garment Creator 2 on Windows 8.1 64-bit or later and macOS 10.12 or later, works with leading third-party RIPs, prints from a USB memory device, and reports to Epson Cloud Solution PORT if you monitor a fleet.
Can I finance it?
Yes. Multiple financing options, including Affirm and Synchrony. Each lender sets its own terms at application, and the finance page carries every program. Ask a specialist to put the printer, the press and the consumables into one conversation before you choose.
What happens when it breaks?
The F2270 carries a 1 year limited warranty with on-site repair, usually the next business day, rather than a mail-in queue. Next business day depends on a service request by 1 p.m. Pacific on a weekday, and geographic limits apply. Epson Preferred Plus plans extend coverage to a total of five years, and AAPS sells the 1, 2 and 4 year plans alongside the machine.
2 in 1
Direct to garment for the cotton work, direct to film for everything else. One F2270 covers both, and nothing swaps between jobs.
Talk It Through
Talk to a hybrid print specialist.
Tell us what you print today and what you want the F2270 to add. You will get straight answers on the machine, the press and the consumables, and an honest read on whether one machine covers your mix.
- A quote that includes the press and consumables, not only the printer
- Multiple financing options, including Affirm and Synchrony
- Straight answers from people who sell and support these machines
Talk to a specialist
Leave your details and an AAPS print specialist will follow up.
By submitting, you agree to be contacted by All American Print Supply about your inquiry.
Two methods. One machine. Every order.
See what the F2270 adds to the mix you already run. Buy it direct, or talk to a specialist who will size the whole line around your volume.
Talk to a Specialist
