The F1 Ultra is a game-changer for small businesses, with a 20W fiber and 20W diode laser combo that works on almost all materials. The diode laser engraves wood, acrylic, while the fiber laser handles metals and plastics, perfect for deep engraving and embossing for jewelry. It boosts productivity with speeds up to 10000mm/s. It can Auto Streamline™ large-scale production with the built-in smart camera and conveyor.

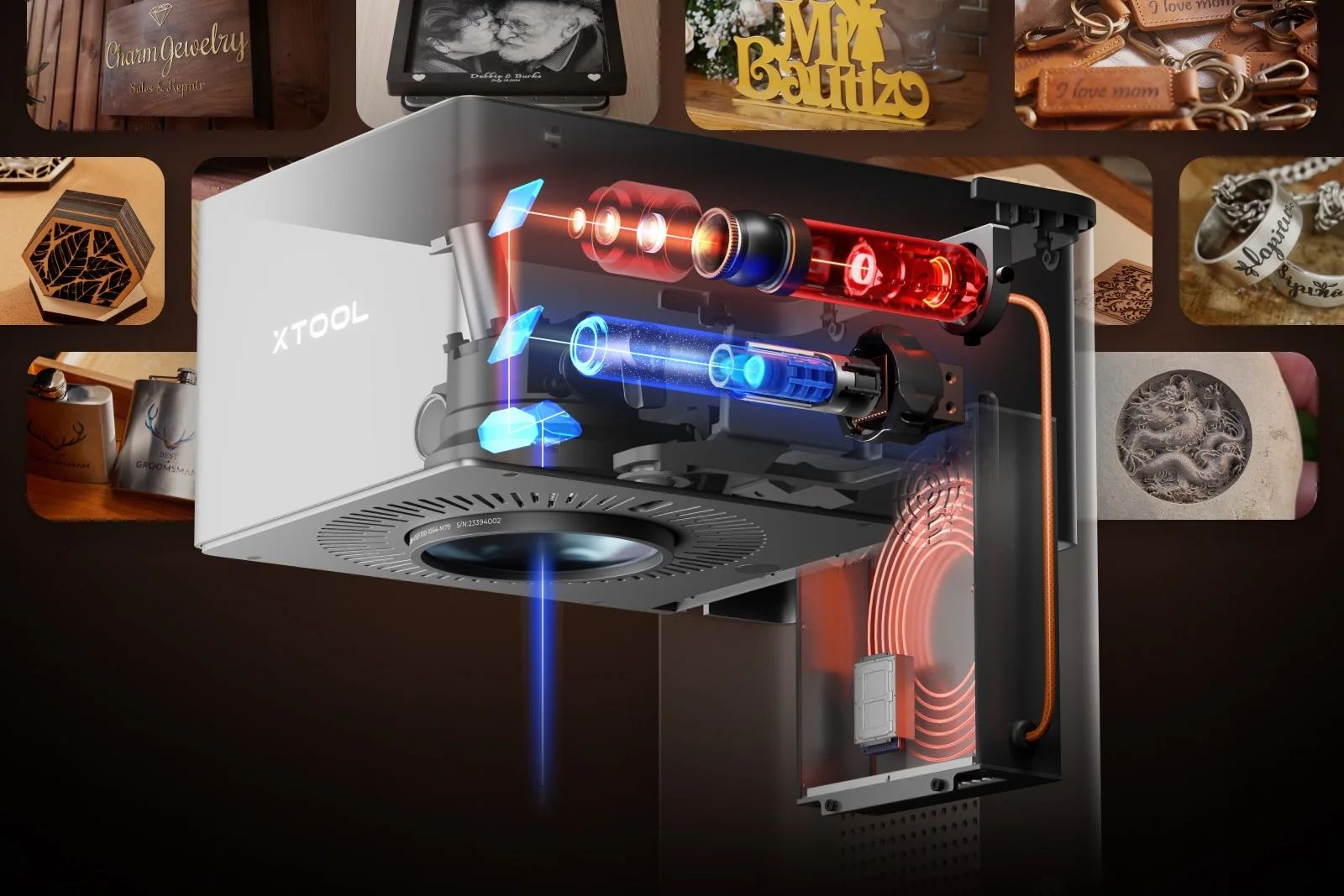

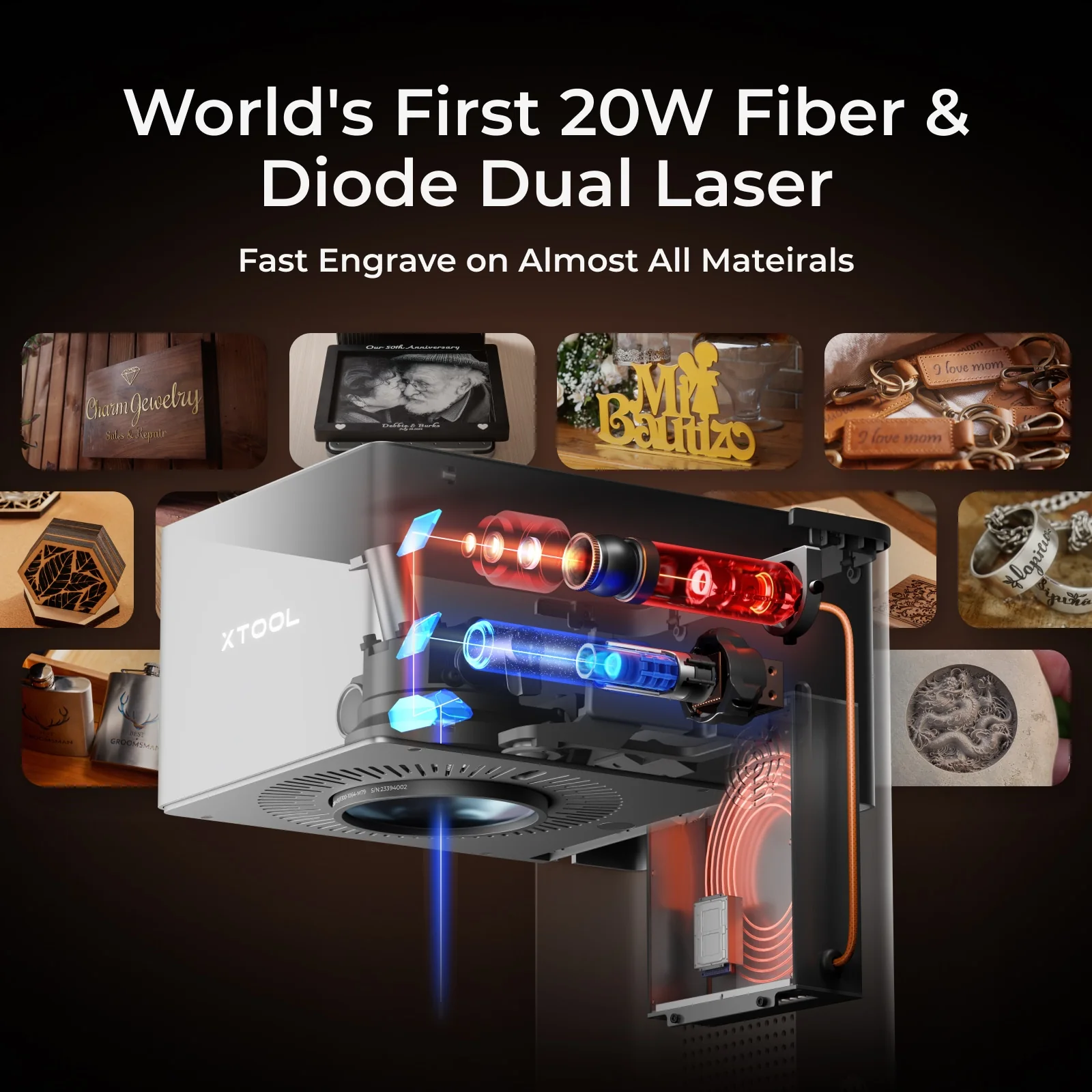

  • 20W Fiber and 20W Diode Dual Laser: fiber laser for metal engraving and a blue diode laser for engraving the most common materials. 20W high power for deep engraving, embossing, and cutting.
  • 10000mm/s Speed: preview your design in real-time and spot tiny details, ensuring error-free results.

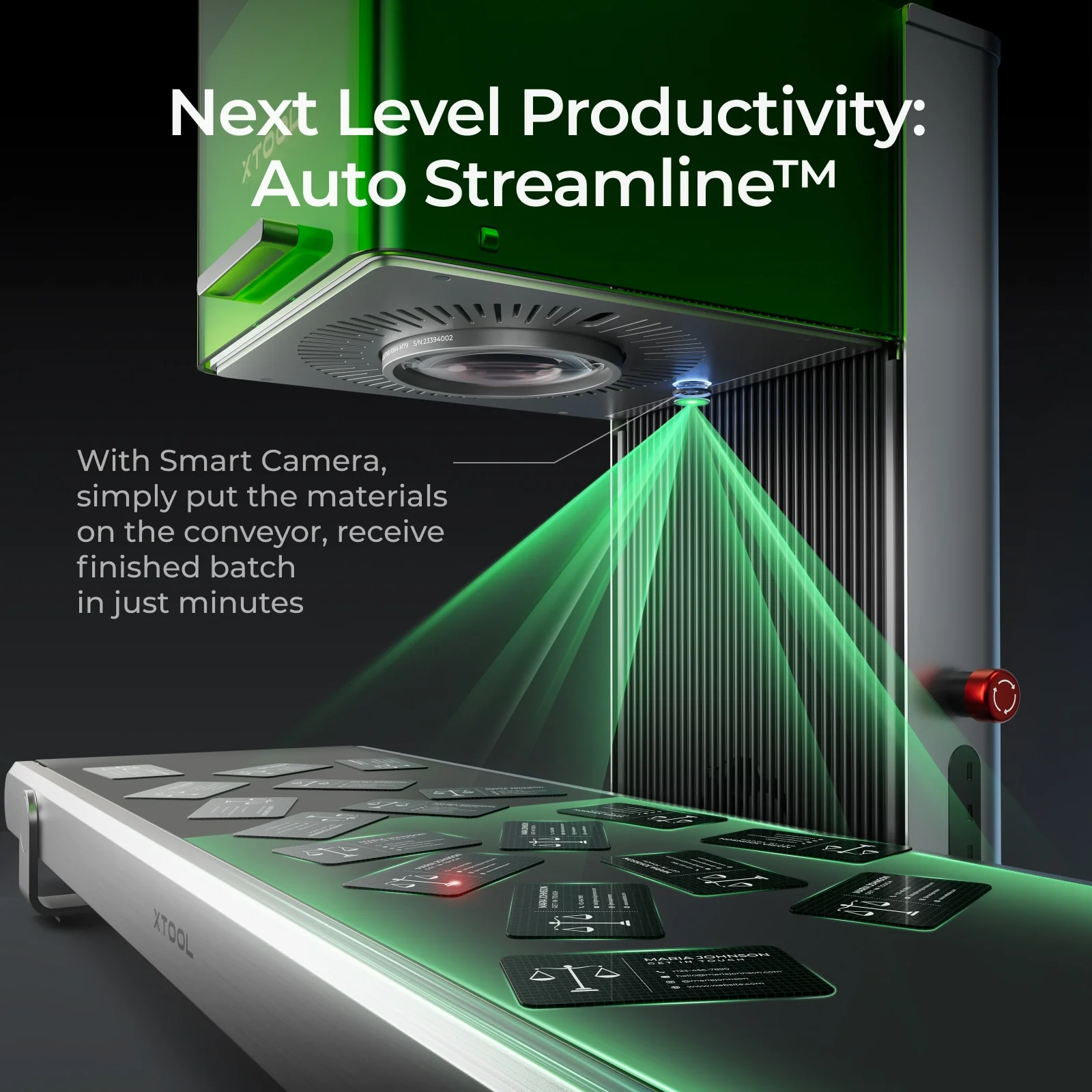

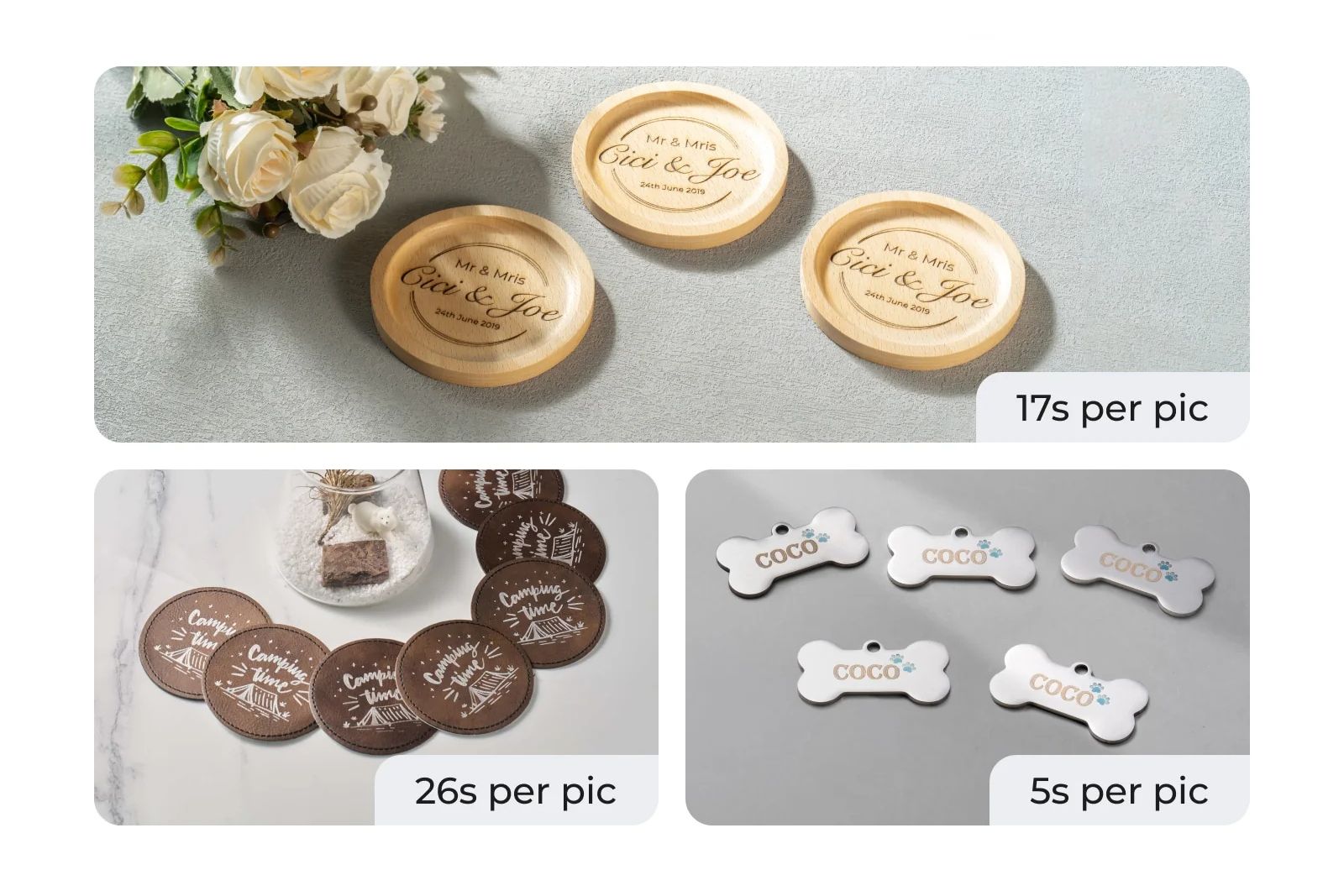

  • Auto Streamline™: finish batch engraving in minutes

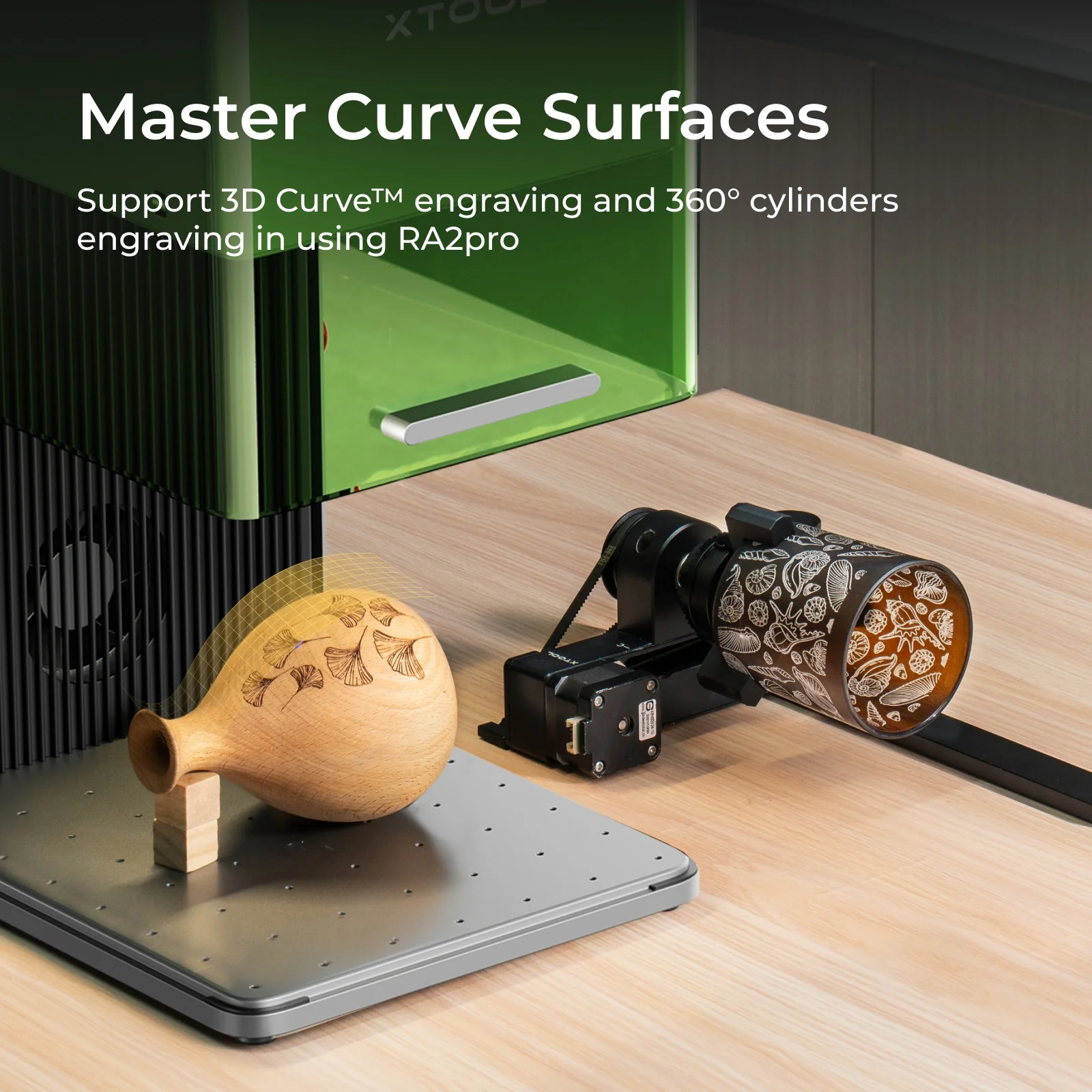

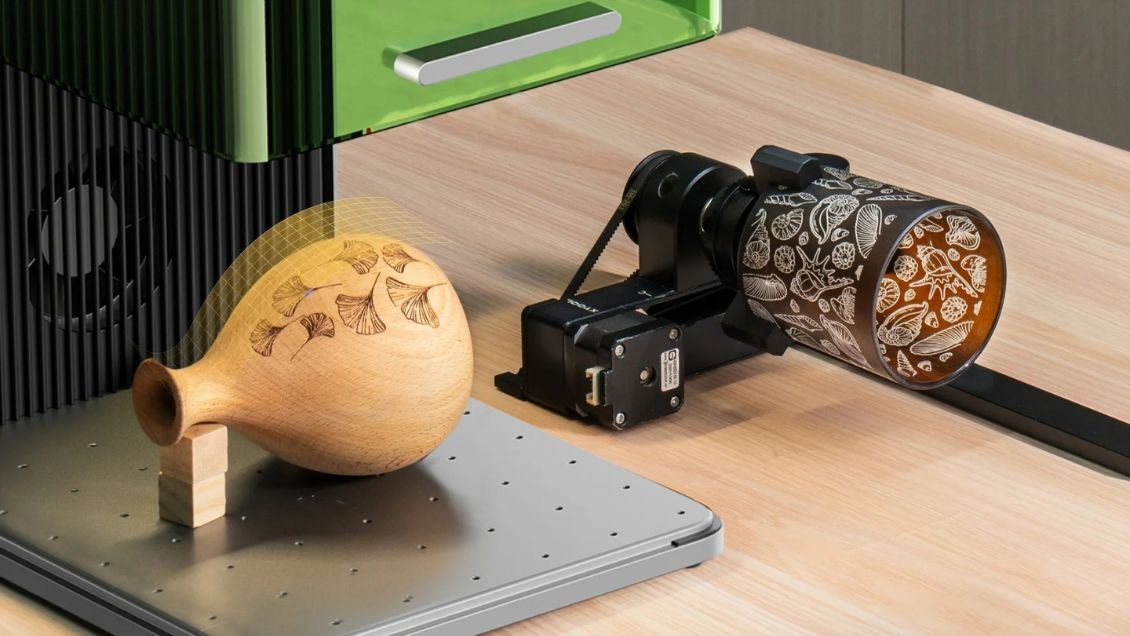

  • 3D Curve™ Engraving: automatically creates 3D models for engraving any pattern on curved surfaces flawlessly.

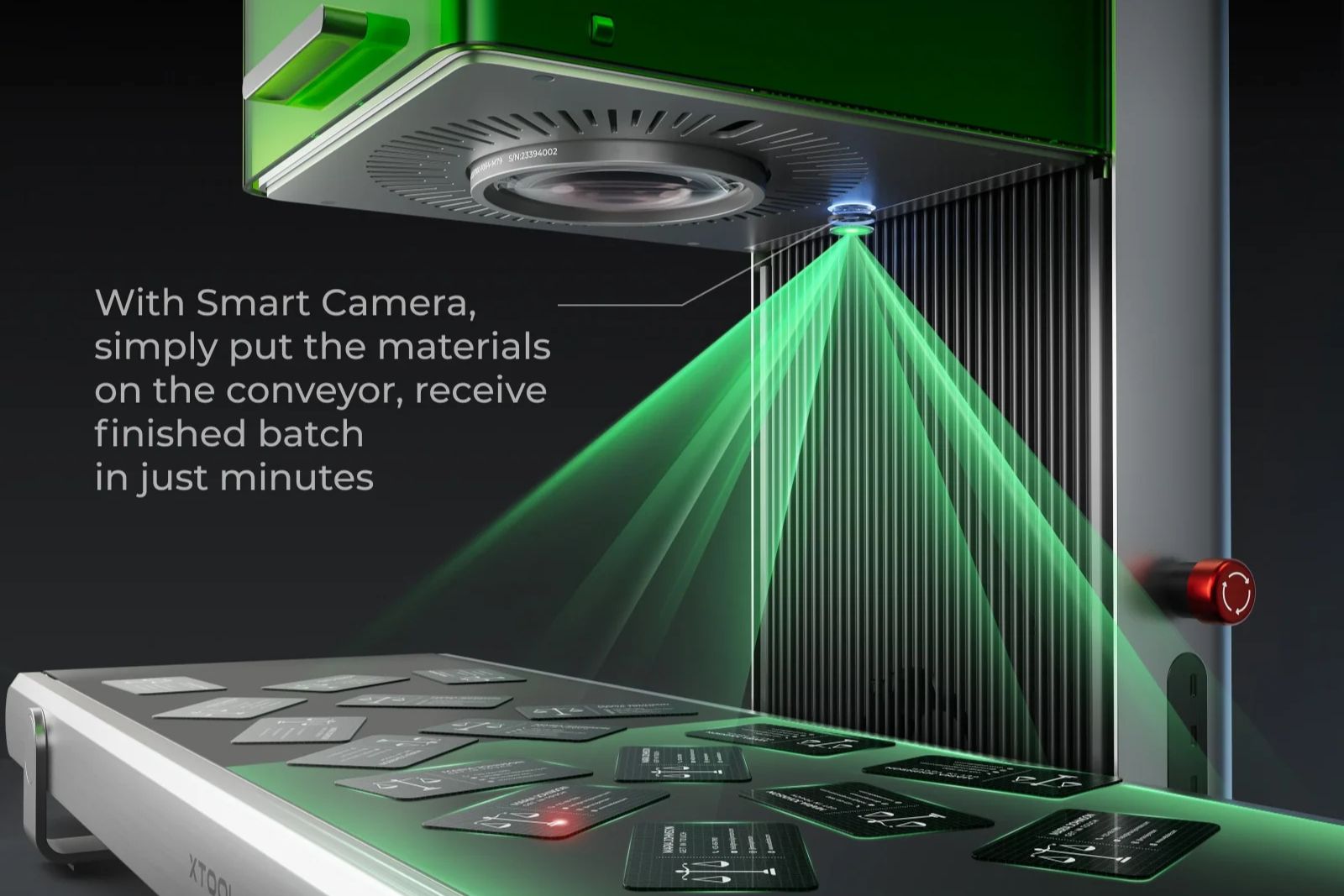

  • 16MP Smart Camera: for auto focus and smart fill pattern capability
  • Multiple applications: with both the fiber and diode lasers, you can engrave on most materials (see full list below).

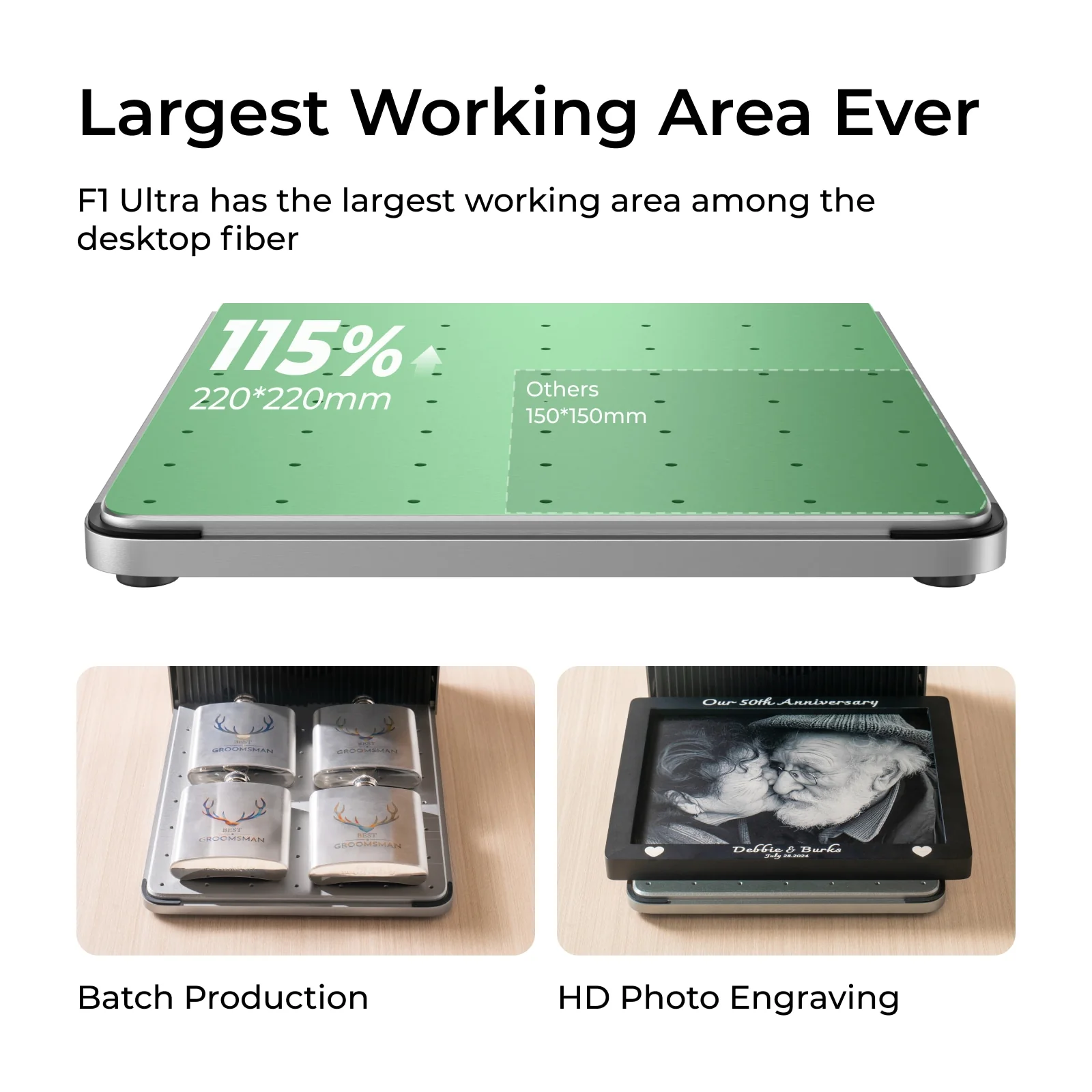

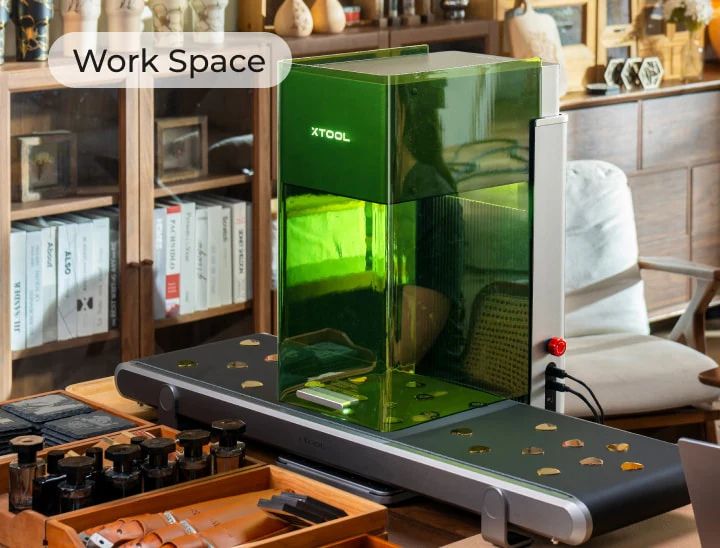

  • Large working area (up to 8.6” x 19.6” with conveyor) without any sacrifice in detail or precision in every corner of the working area.

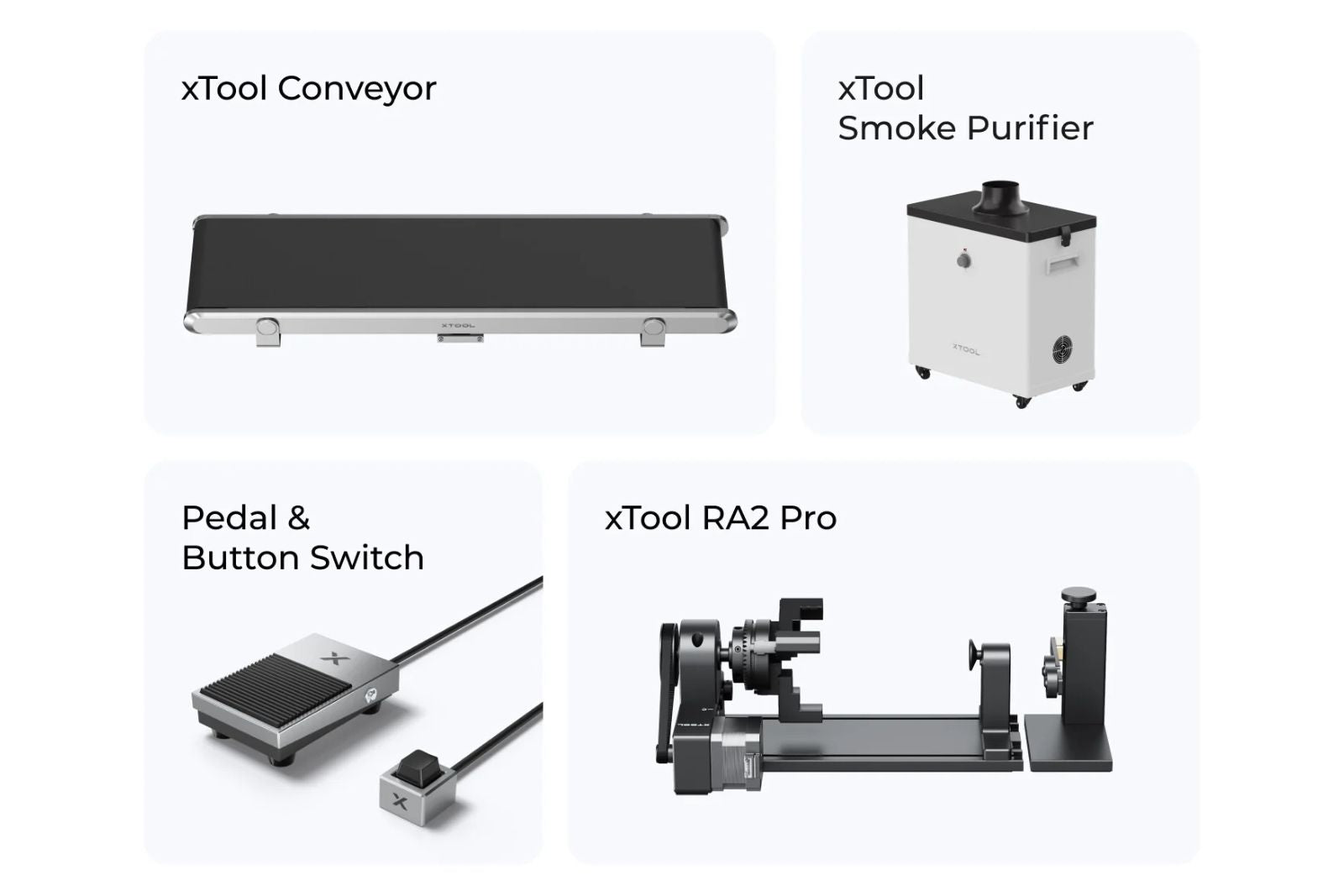

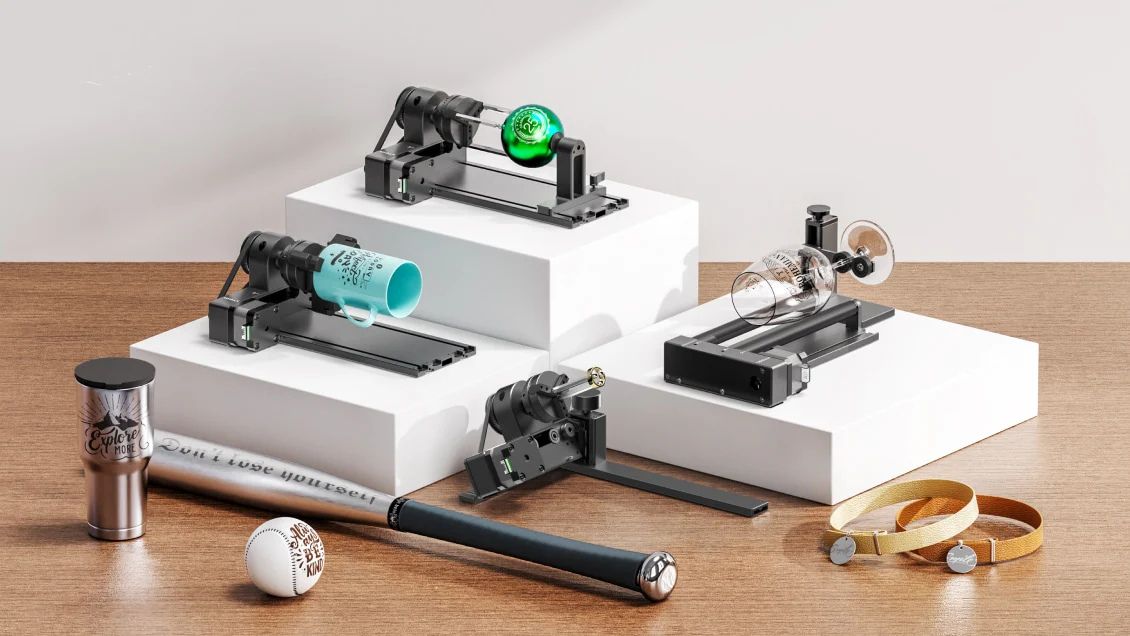

  • Expand with accessories: Engrave on cylindrical objects with the RA2 Pro Rotary attachment, and complete batch productions with the Conveyor attachment.
  • F1 Ultra Laser Engraver
  • Touchscreen controller
  • Pipe
  • Power adapter
  • Power cable
  • USB cable
  • Slatted panel
  • Screwdriver
  • L-shaped positioning piece
  • Key
  • Lint-free cloth
  • Material pack
  • Quick Start Guide
  • Safety Instructions
Supported Materials

Engraving Cutting
Diode Laser Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic
Fiber Laser Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold Brass, Stainless Steel, Aluminum



Machine Specifications

  • Product Size: 10.75”x14.69”x19.37” (273 mm × 373 mm × 492 mm)
  • Product Weight: 32.4 lb (14.7kg)
  • Max. Machine Input Power: 250W-275W
  • Power Adapter Input Voltage: 100V-240V, AC 50/60 Hz
  • Safety Certification: Class 4 Laser Safety

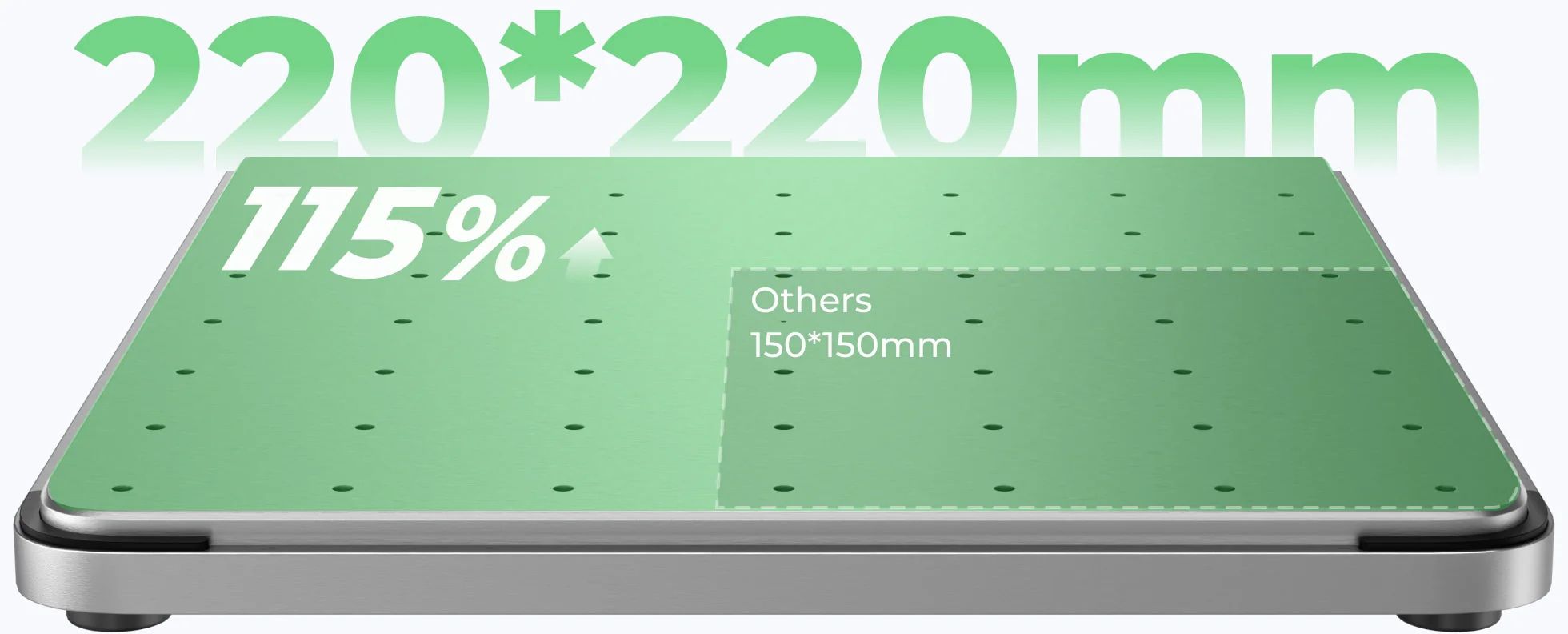

  • Working Area: 8.6" × 8.6" (220 mm × 220 mm), 8.6" × 19.6" (with conveyor) (220 mm × 500 mm)
  • Max. Working Speed: 10000mm/s
  • Max. Laser Cutting Capacity (Basswood): 15 mm in Multiple Passes
  • Max. Laser Cutting Capacity (Acrylic): 12 mm in Multiple Passes
  • Max. Processing Height: 145 mm
  • Camera: 16MP Smart Camera built-in
  • Positioning method: Camera positioning
  • Laser Spot Size: 0.08*0.1mm (20W Diode Laser), 0.03*0.03mm (20W Fiber Laser)
  • Ranging Precision: 0.5mm, Camera
  • Motion Accuracy: 0.00482mm
  • Max. Rotary Engraving Diameter: 145 mm

Software Specifications

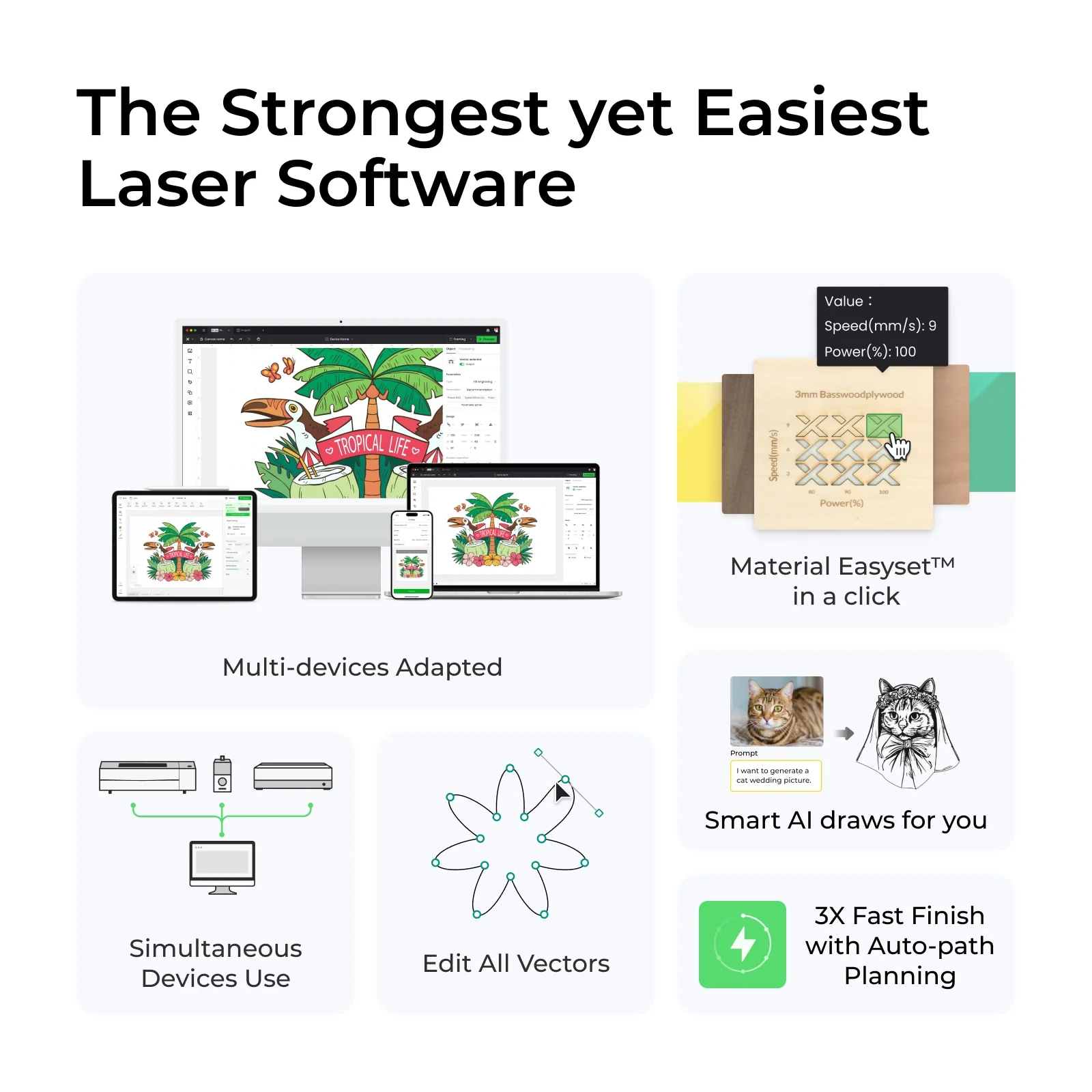

  • Supported Software: xTool Creative Space/Lightburn
  • Operating System: Android/iOS/iPad/Windows/macOS
  • Connection Method: USB/Wi-Fi/IP/Hotspot
  • Supported Files: SVG/DXF/JPG/JPEG/PNG/BMP/TIF

SKU:

DTFS-XT-P5010341

SKU:

DTFS-XT-P5010341

Price:

$3,799.00$3,999.00
Earn 3799 AA points. Join Now

Quantity:

Price:

$3,799.00$3,999.00
Earn 3799 AA points. Join Now

Quantity:

Special Financing for 12^ or 36++ months on qualifying purchases with Synchrony.... No interest if Paid in Full within 12 Months^
On qualifying purchases made with your Sewing & More credit card. Interest will be charged to your account from the purchase date if the promotional balance is not paid in full within 12 months. Minimum monthly payments required.
^Offer applies only to single-receipt qualifying purchases. No interest will be charged on the promo balance if you pay it off, in full, within the promo period. If you do not, interest will be charged on the promo balance from the purchase date. The required minimum monthly payments may or may not pay off the promo balance before the end of the promo period, depending on purchase amount, promo length and payment allocation. Regular account terms apply to non-promo purchases and, after promo period ends, to the promo balance. As of 07/16/24: Purchase APR 34.99%.Penalty APR 39.99%. Min Interest Charge $2. A promo fee will be charged equal to 2% of the amount financed on an equal payment no interest promotion of months or more. Existing cardholders: See your credit card agreement terms. Subject to credit approval. We reserve the right to discontinue or alter the terms of this offer at any time.

5.99% APR with fixed monthly payments for 36 months++
On qualifying purchases made with your Sewing and More credit card. Fixed monthly payments required for 36 months.
++Qualifying purchase amount must be on one receipt. A promo fee does not apply to this offer. Interest will be charged on the promo purchase, including related optional debt cancellations fees, from the purchase date at a reduced 5.99% APR, and fixed monthly payments are requirement until paid in full. These payments are equal to 3.0417% of initial total promo purchase amount, rounded up to the next whole cent. These payments may be higher than the payments that would be required if this purchase was a non-promo purchase. During the last month(s) of the promo period the required monthly payment may be reduced due to the prior months' rounding. Regular account terms apply to non-promo purchases. New Accounts as of 7/16/24: Purchase APR 34.99%. Penalty APR 39.99%. Min Interest Charge $2. fee will be charged equal to 2% of the amount financed on an equal payment no interest promotion of months or more. Existing cardholders: See your credit card agreement terms. Subject to credit approval. We reserve the right to discontinue or alter the terms of this offer at any time.

High-Powered Laser Engraving: Inquire Today

  • Description
  • Features
  • Benefits
  • What's Included
  • Specifications

The F1 Ultra is a game-changer for small businesses, with a 20W fiber and 20W diode laser combo that works on almost all materials. The diode laser engraves wood, acrylic, while the fiber laser handles metals and plastics, perfect for deep engraving and embossing for jewelry. It boosts productivity with speeds up to 10000mm/s. It can Auto Streamline™ large-scale production with the built-in smart camera and conveyor.

  • 20W Fiber and 20W Diode Dual Laser: fiber laser for metal engraving and a blue diode laser for engraving the most common materials. 20W high power for deep engraving, embossing, and cutting.
  • 10000mm/s Speed: preview your design in real-time and spot tiny details, ensuring error-free results.
  • Auto Streamline™: finish batch engraving in minutes
  • 3D Curve™ Engraving: automatically creates 3D models for engraving any pattern on curved surfaces flawlessly.
  • 16MP Smart Camera: for auto focus and smart fill pattern capability
  • Multiple applications: with both the fiber and diode lasers, you can engrave on most materials (see full list below).
  • Large working area (up to 8.6” x 19.6” with conveyor) without any sacrifice in detail or precision in every corner of the working area.
  • Expand with accessories: Engrave on cylindrical objects with the RA2 Pro Rotary attachment, and complete batch productions with the Conveyor attachment.
  • F1 Ultra Laser Engraver
  • Touchscreen controller
  • Pipe
  • Power adapter
  • Power cable
  • USB cable
  • Slatted panel
  • Screwdriver
  • L-shaped positioning piece
  • Key
  • Lint-free cloth
  • Material pack
  • Quick Start Guide
  • Safety Instructions
Supported Materials

Engraving Cutting
Diode Laser Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic
Fiber Laser Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold Brass, Stainless Steel, Aluminum



Machine Specifications

  • Product Size: 10.75”x14.69”x19.37” (273 mm × 373 mm × 492 mm)
  • Product Weight: 32.4 lb (14.7kg)
  • Max. Machine Input Power: 250W-275W
  • Power Adapter Input Voltage: 100V-240V, AC 50/60 Hz
  • Safety Certification: Class 4 Laser Safety
  • Working Area: 8.6" × 8.6" (220 mm × 220 mm), 8.6" × 19.6" (with conveyor) (220 mm × 500 mm)
  • Max. Working Speed: 10000mm/s
  • Max. Laser Cutting Capacity (Basswood): 15 mm in Multiple Passes
  • Max. Laser Cutting Capacity (Acrylic): 12 mm in Multiple Passes
  • Max. Processing Height: 145 mm
  • Camera: 16MP Smart Camera built-in
  • Positioning method: Camera positioning
  • Laser Spot Size: 0.08*0.1mm (20W Diode Laser), 0.03*0.03mm (20W Fiber Laser)
  • Ranging Precision: 0.5mm, Camera
  • Motion Accuracy: 0.00482mm
  • Max. Rotary Engraving Diameter: 145 mm

Software Specifications

  • Supported Software: xTool Creative Space/Lightburn
  • Operating System: Android/iOS/iPad/Windows/macOS
  • Connection Method: USB/Wi-Fi/IP/Hotspot
  • Supported Files: SVG/DXF/JPG/JPEG/PNG/BMP/TIF

FAQs – Got Questions? We’ve Got Answers!

What type of laser does the F1 Ultra use? Is it True Fiber?

The F1 Ultra is a dual laser machine. It has a 20W fiber and a 20W galvo blue diode laser, allowing it to engrave on almost all common materials. The diode laser performs best on wood, acrylic, leather, slate, glass, ceramic, etc., while the fiber laser can engrave on metals (stainless steel, aluminum, gold, silver, iron, platinum) and plastic.

And yes, the F1 Ultra is a true fiber laser. The F1 Ultra uses an IR (infrared laser) as its laser source, while the fiber (diode-pumped fiber laser) serves as the gain medium. Both are essential components for generating laser light.

Each laser light is produced when the laser source strikes the gain medium, which then amplifies the intensity of the laser beam. Unlike the S1 & F1 models and other common IR lasers on the market that use DPSS (diode-pumped solid-state laser) as the gain medium, the F1 Ultra leverages a fiber gain medium to maximize laser power. This results in deeper engraving and cutting at the same power level.

How does the F1 Ultra perform on metal?

The F1 Ultra can deeply engrave, emboss and even cut metal. F1 Ultra can cut 0.4mm brass, 0.3mm stainless steel and 0.2mm aluminum sheet.

What is the engraving resolution of the F1 Ultra?

xTool F1 Ultra has ultra HD resolution, same as xTool F1. Its Fiber has 0.03*0.03mm compression spot on fiber, and its diode galvo laser has 0.08*0.1mm compression spot.

Is the field lens on the F1 Ultra interchangeable?

There is no need to change the field lens of F1 Ultra for several reasons: First, F1 Ultra has the largest working area in desktop fiber. Second, F1 Ultra uses microbeam technology to restore the details of every image, even in the corner of the working area. Third, the field lens is well protected inside F1 Ultra, as we planned an airflow path that (with a built-in fan) blows away all dust generated through engraving outside the machine.

Can the F1 Ultra adjust frequency?

Yes, F1 Ultra can adjust from 30 to 60kHz.

What is the difference between the F1 and the F1 Ultra?

F1 Ultra：

Most Efficient Batch Engraving on almost all materials: F1 Ultra has both 20W Fiber and 20W Diode Laser with its super speed 10000mm/s, 220*220mm engraving area and auto streamline™ production

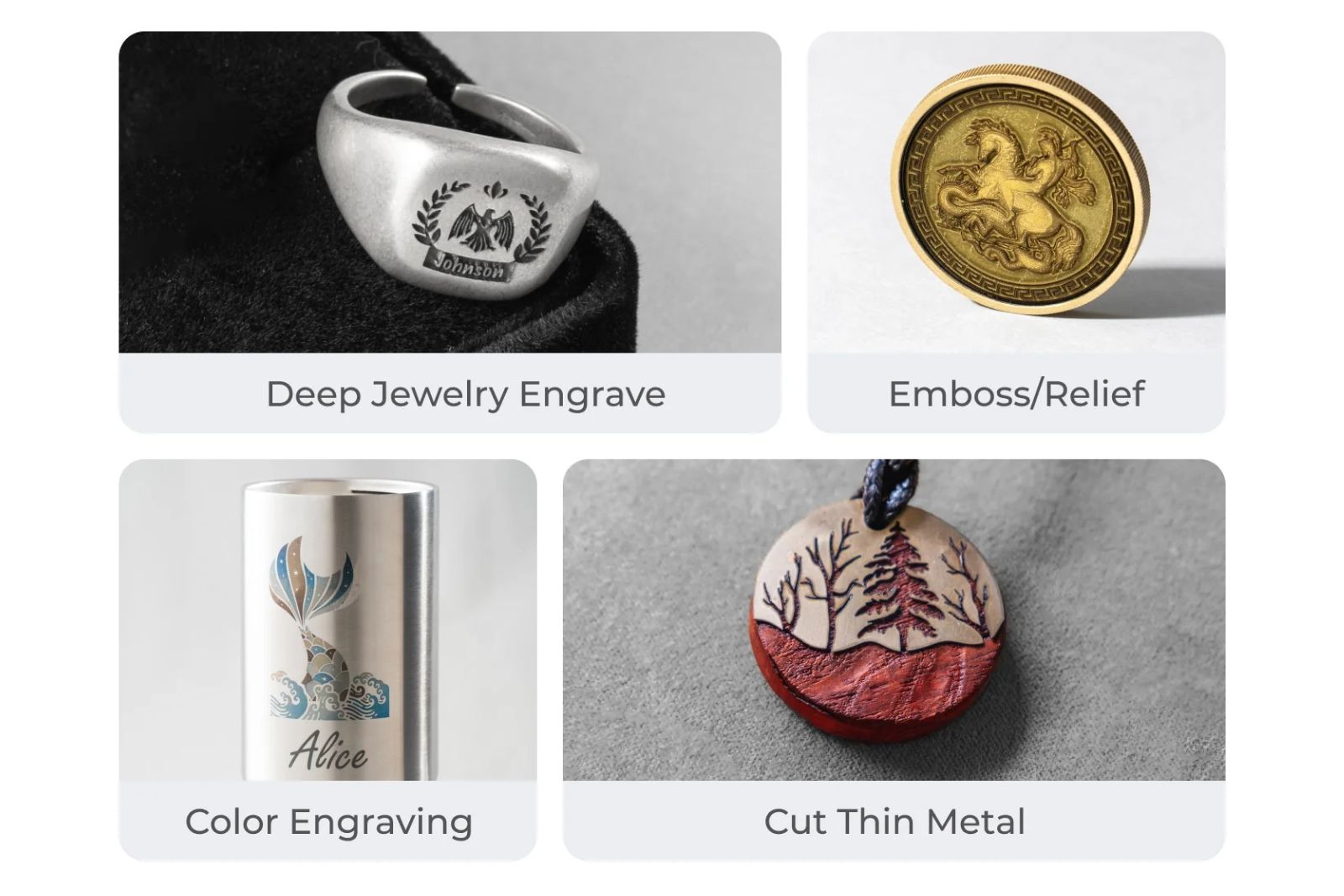

Versatile Jewelry Making: F1 Ultra has 20W fiber, which can do deep metal engraving, embossing, thin metal cutting

F1:

Craft Fair Must-Have: F1 is the mini size of F1 Ultra, Its compact size makes it portable to bring it to craft fair. With its 2W Infrared laser with 10W diode laser and 4000mm/s, F1 can do customize engraving on almost anything quickly onsite.
DIY Starter: F1 is fun to play and has minimal learning curve, it also has relatively lower price to purchase

Is the F1 Ultra compatible with F1 accessories?

The F1 Ultra is compatible with the RA2 Pro. However, the smoke purifier is different. For the F1 Ultra, we recommend using the SafetyPro™ AP2 Air Purifier for its larger filters and longer purification lifespan.

What is the difference between the F1 Ultra and the xTool P Series Laser Cutters?

P2S: Cutting powerhouse with large working area, better-suited for larger projects. Perfect for acrylic (all colors).
F1 Ultra: King of desktop laser engraving, and can engrave almost all materials at the fastest speed, most detailed resolution and versatile engraving result.
