Expand the finishing and long-format capabilities of the xTool O1 Omni Printer with the xTool LM1 Laminator and RF1 Roll Feeder. The LM1 supports UV DTF lamination, waste-removal finishing, and foil finishing, while the RF1 enables roll-to-roll production for UV DTF crystal decals and other compatible roll media.
Features
-
UV DTF Decal Finishing: Laminate UV DTF crystal decals to create ready-to-apply transfers.
-

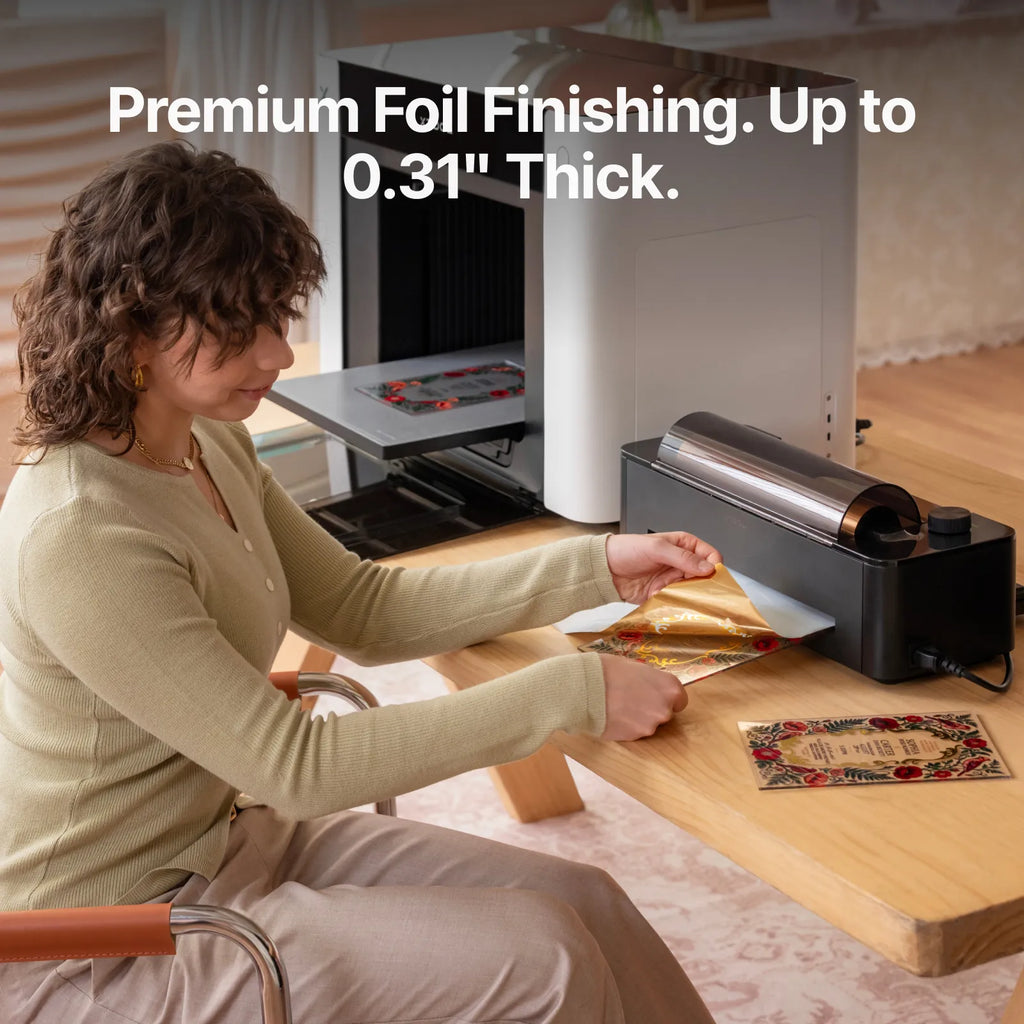

Foil Finishing: Add gold, silver, and holographic effects to press-flat materials up to 0.31" thick.
-

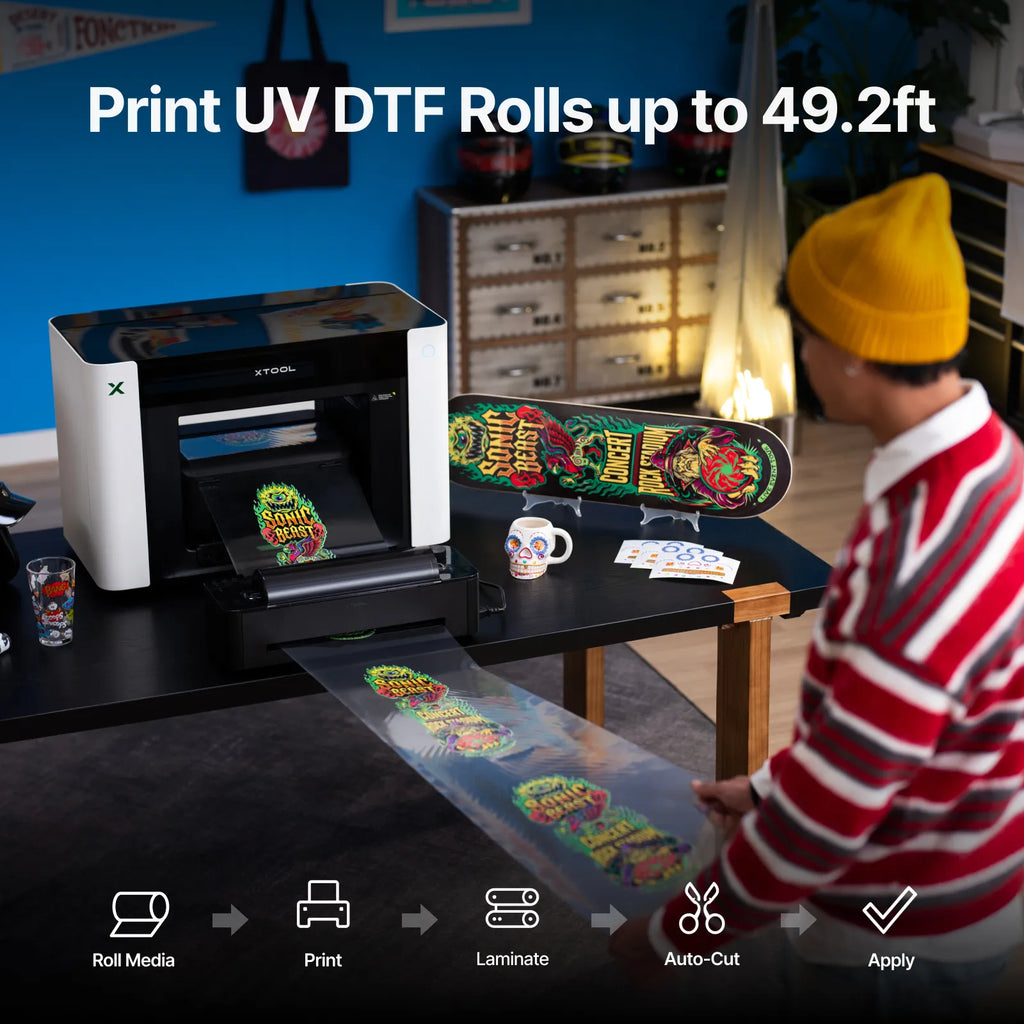

Roll-to-Roll Production: Pair the LM1 with the RF1 Roll Feeder to produce UV DTF crystal decal rolls up to 49.2 ft long.
-
Automatic Layout & Cutting: Set the design quantity and spacing while the software handles layout, cut lines, and final cutting automatically.
-
Long-Format Printing: Support roll media for banners, window graphics, automotive decals, vinyl, and other applications.
-
Multiple Finishing Types: The LM1 supports UV DTF lamination, waste-removal finishing, and foil finishing.
-
Wide Material Support: RF1 supports A Film, canvas, static cling vinyl, ultra-clear UV vinyl, and polymeric vinyl.
Benefits
- Create ready-to-apply UV DTF decals with an efficient finishing workflow.
- Add premium foil effects to compatible products.
- Reduce repeated setup when producing small batches of UV DTF decals.
- Streamline longer roll jobs with automatic layout and cutting.
- Expand into banners, window graphics, car decals, signage, labels, and other long-format products.
Specifications

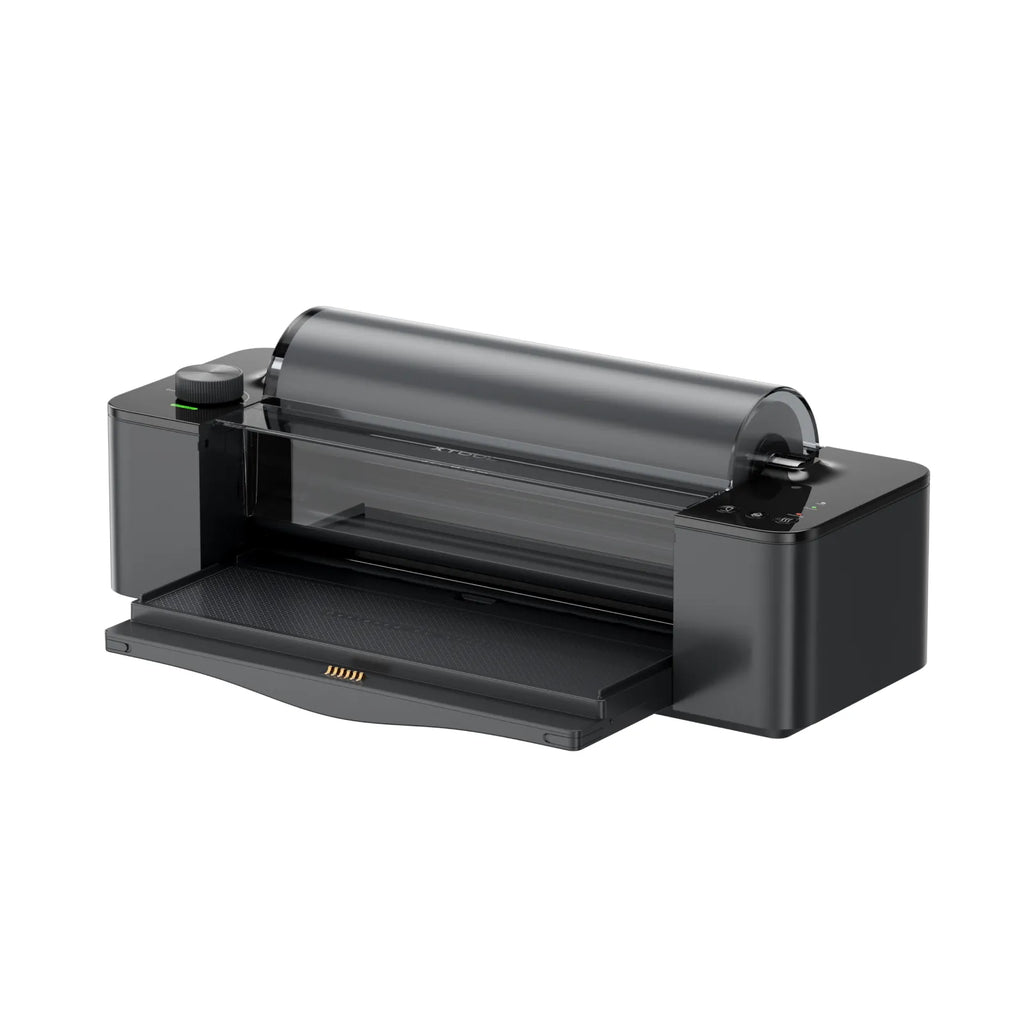

LM1 Laminator
-
Lamination Width: 12.2"
-
Supported Material Thickness: 0"–0.31"
-
Supported Films: B Film, Waste-Removal Film, Foil Film
-
Supported Finishing Types: UV DTF lamination, waste-removal finishing, foil finishing
-
Lamination Speed: 0.39"/s
-
Preheating Time: 90 seconds at 77°F
-
Power Supply: AC 110V / 220V
-
Dimensions: 18.9" × 6.4" × 6.8"
-
Net Weight: 17.9 lb
RF1 Roll Feeder
-
Supported Media Width: 3.9"–12.2"
-
Supported Media Thickness: 0.004"–0.024"
-
Supported Core Diameter: 3"
-
Supported Roll Outer Diameter: Up to 3.5"
-
Max Printable Length: Up to 49.2 ft for UV DTF crystal decals; up to 38.7 ft actual printable length for canvas, vinyl, and selected roll media
-
Max Roll Material Length: Up to 49.2 ft for UV DTF crystal decal film; up to 42.7 ft for canvas, vinyl, and selected roll media
-
Max Roll Load: 9.1 lb
-
Dimensions: 14.3" × 10.6" × 5.7"
-
Supported Materials: A Film, Canvas, Static Cling Vinyl, Ultra-Clear UV Vinyl, Polymeric Vinyl
-
Third-Party Material Support: 3" core, 3.9"–12.2" width, 0.004"–0.024" thickness, up to 3.5" outer diameter
What's Included
LM1 Laminator

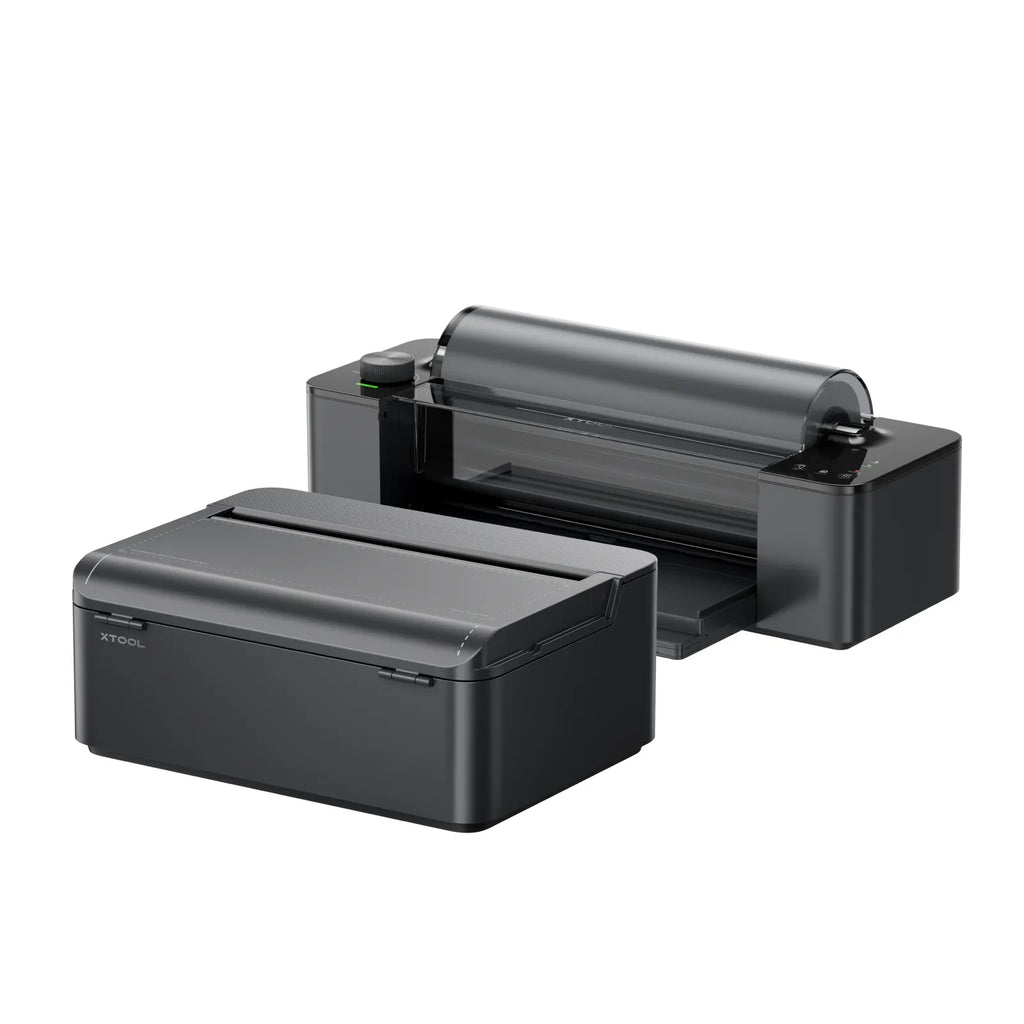

LM1 Laminator + RF1 Roll Feeder
- xTool LM1 Laminator
- xTool RF1 Roll Feeder
Compatible With
