Precision Infrared Metal Engraving

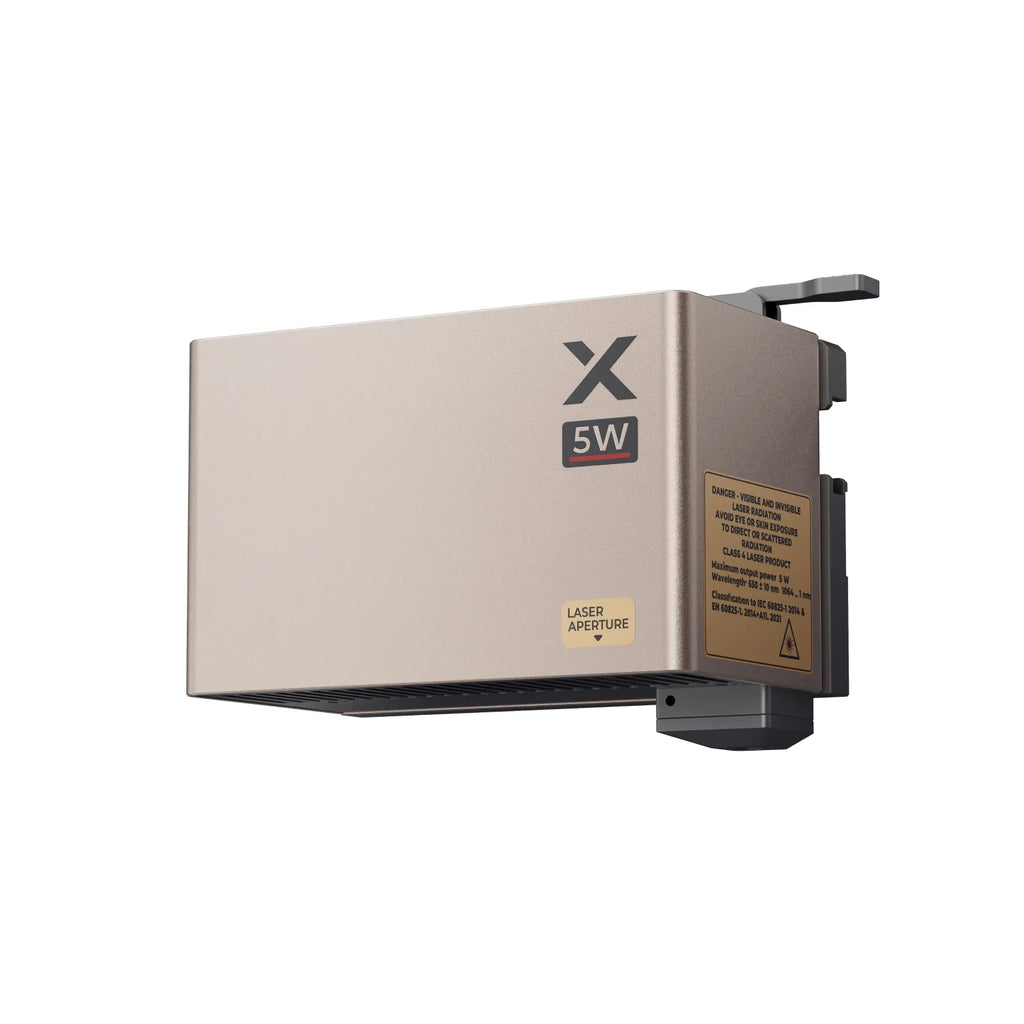

The xTool P3 5W IR Laser Module expands the capabilities of the xTool P3 with precision infrared laser engraving for metals and plastics. Featuring a 1064 nm infrared laser, fast processing speeds, and air cooling, it delivers detailed marking and engraving performance across a large working area. Designed exclusively for the xTool P3, it installs quickly and operates directly from the main unit power supply.
Features
-
1064nm Infrared Laser: Precise engraving on metals and plastics
-
5W Laser Power: High-performance infrared laser processing
-
Large Working Area: Supports up to 25.6 x 16.8 inches
-
Air Cooling System: Stable operation without external cooling
-
Quick Installation Design: Fast attachment and removal process
Benefits
-
Expanded Material Capability: Engraves metals, plastics, leather, and rubber
-
Detailed Marking Results: Fine engraving with precision laser output
-
Efficient Workflow Integration: Powered directly by xTool P3
-
Large Project Support: Handles oversized engraving applications
-
Reliable Long-Term Performance: Rated lifespan up to 8,000 hours
What's Included
Specifications
-
Wavelength: 1064 nm ±1 nm
-
Laser power: 5W
-
Pulse width: 4 ns
-
Repetition rate: 25–30 KHz
-
Peak power: 49–65 KW
-
Single pulse energy: Greater than 0.14 mJ
-
Focal length: 1.93 in
-
Beam waist: 0.12 in minimum
-
Lifetime requirement: 8,000 hours
-
Working area: 25.6 x 16.8 in
-
Laser head dimensions: 5.37 x 3.72 x 3.64 in
-
Laser head weight: 1.87 lb
-
Operating temperature: 32–95 °F
-
Storage temperature: 14–140 °F
-
Cooling method: Air cooling
-
Power supply: Host power supply from main unit
-
Packaging dimensions: 9.29 x 7.24 x 6.14 in
-
Packaging weight: 3.31 lb
Compatible With
-
xTool P3
-
Gold
-
Brass
-
Leather
-
Fabric
-
Rubber
-
Cement
-
Stone
-
Anodized Metal
-
Stainless Steel
