xTool WonderPress 3D Auto Heat Press [PRE ORDER]

Name: xTool WonderPress 3D Auto Heat Press [PRE ORDER]
Brand: xTool
SKU: XT-P0101000651
Price: 399.0 USD
Availability: InStock

SKU: XT-P0101000651

$399.00

Multiple financing options available, including Affirm and Synchrony.

Package

Talk to a Specialist

Compare bundles Watch it work

Room under the 15 x 15 in platen for your thickest hoodies, with automatic pressure up to 220 lb.
Swap in the Craft Oven or 3D Form Module without tools, and without powering down.
Cure your own DTF transfers and sublimate mugs in the Craft Oven, with a built-in filter so you don't need an exhaust pipe indoors.
Wrap designs around phone cases and badges, or copy an object into a mold, with the 3D Form Module.

See full specs and details

Need a hand?

Price matchCheck stockAsk an expert

xTool WonderPress 3D Auto Heat Press [PRE ORDER]

$399.00Heat Press Standalone

Talk to a Specialist

Work from one WonderPress: a heat-pressed tee, cured DTF transfer film, 3D sublimated phone cases, candles cast in vacuum-formed molds and sublimated mugs

From hoodies to phone cases on one base.

Every WonderPress starts with the Heat Press Module for your flat work. Add the Craft Oven or 3D Form Module and the same base takes on mugs, DTF curing, curved items and molds.

Flat work (every package)

Tees, hoodies and other apparel with HTV or DTF transfers
Canvas, nylon and drawstring bags with HTV
Sublimation-coated metal blanks, keychains, slate and fridge magnets
Acrylic sheet you want to heat-bend

3D and specialty work (with the modules)

Mugs and tumblers with sublimation shrink wrapCraft Oven Module
Your own DTF transfers, cured up to 17 x 17 inCraft Oven Module
Polymer clay, shrink plastic and dried flowersCraft Oven Module
Phone cases, badges and keycaps with a full-wrap design3D Form Module
Molds and product packaging formed from TPU, HIPS or PETG sheet3D Form Module

Please skip PVC and other vinyl-chloride materials, food, anything flammable, explosive or pressurized, and any item when you don't know what it's made of.

WonderPress Heat Press Module closed on a blue garment, its dial set to 100 kg

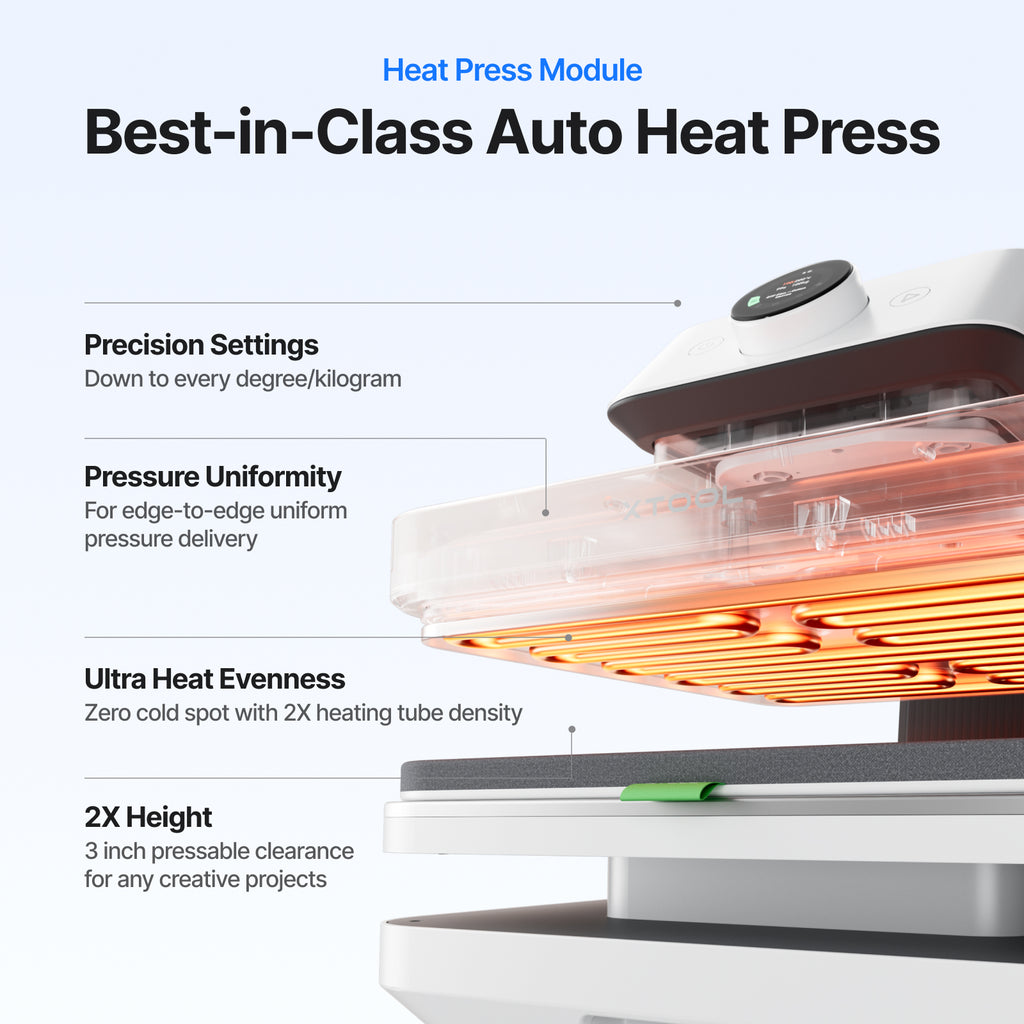

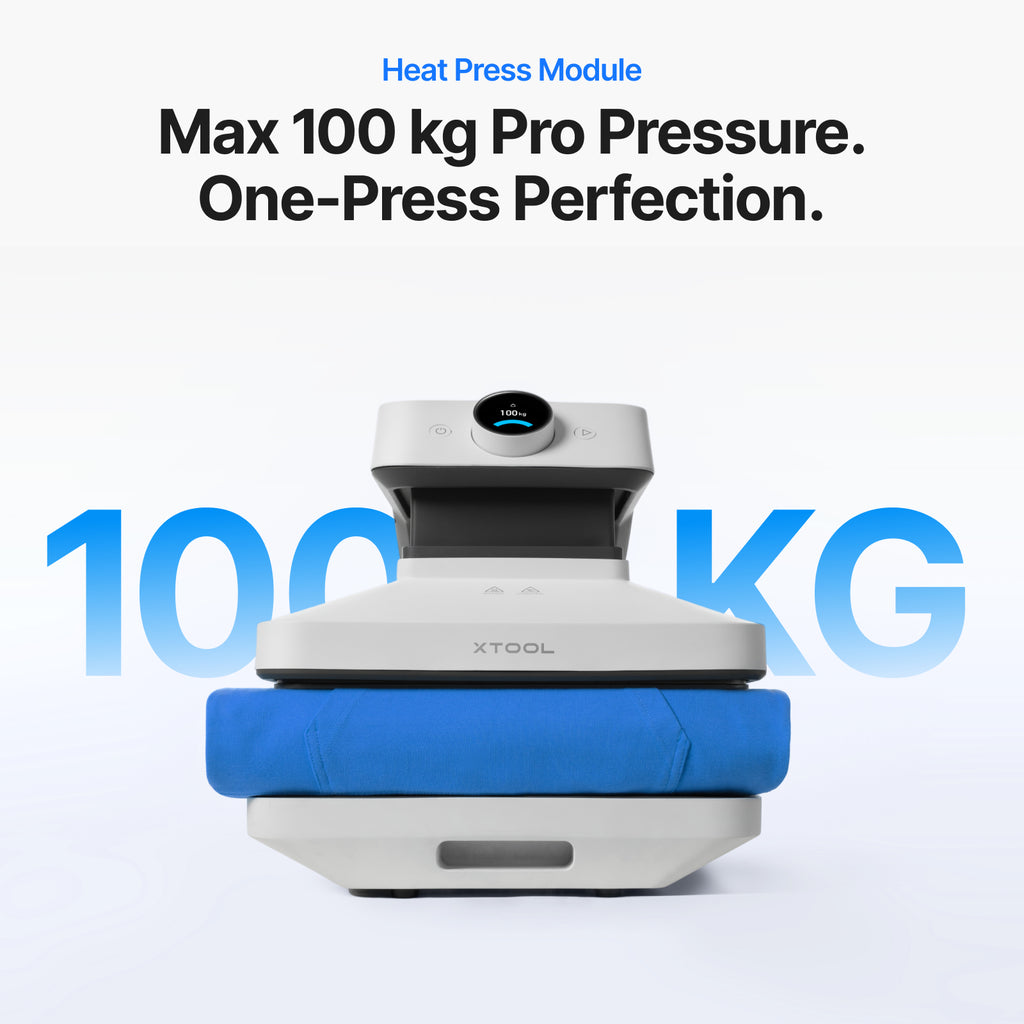

Heat Press Module · in every package

Set the pressure and let the press apply it.

Pick anywhere from 44 to 220 lb and the Heat Press Module applies it automatically on a 15 x 15 in platen. It opens up to 3 in, so your thickest hoodies fit under it. This is the module for your tees, bags and flat sublimation blanks.

44 to 220 lb automatic pressure
176 to 410 °F
1 to 999 seconds
15 x 15 in platen
Up to 3 in opening

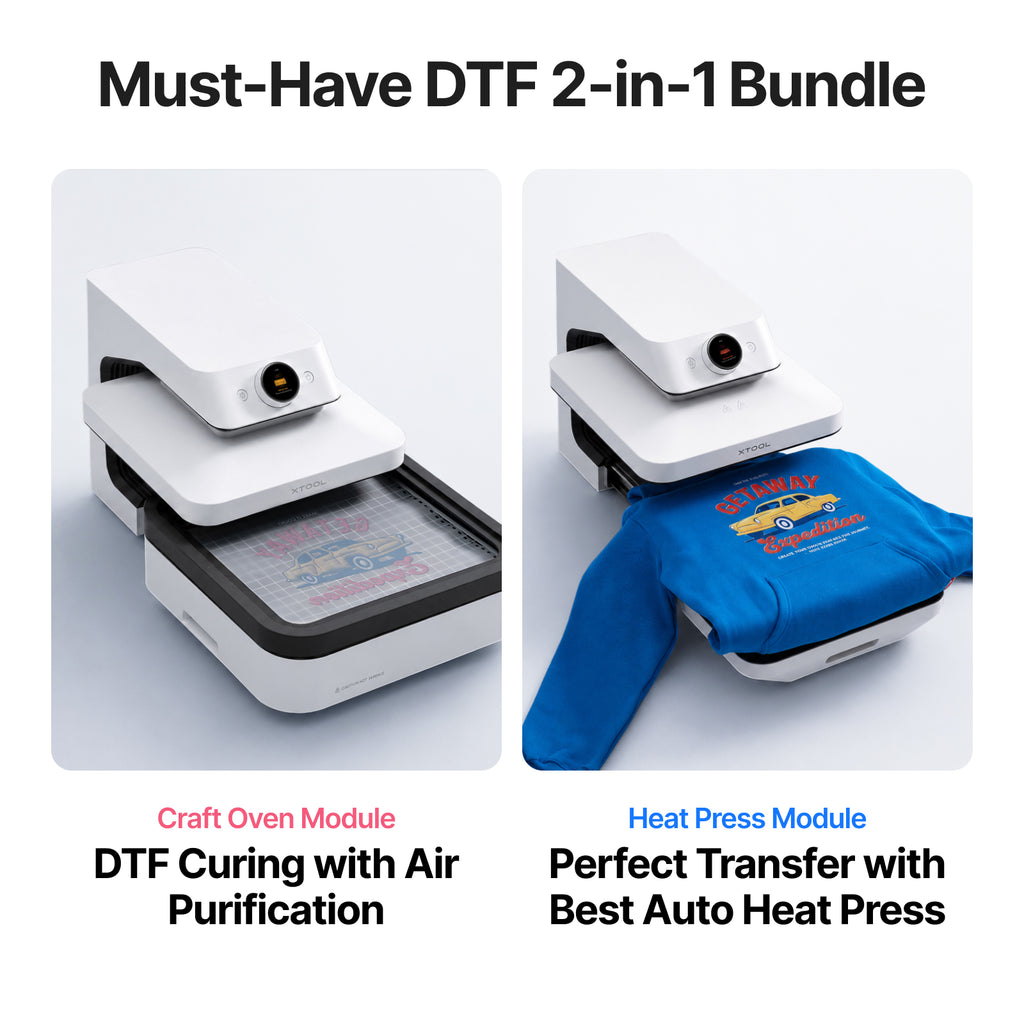

Craft Oven Module curing a DTF transfer, beside the Heat Press Module pressing that transfer onto a blue hoodie

Craft Oven Module · Heat Press + Craft Oven, All-In-One, Deluxe

Cure your own DTF transfers, then run mugs.

The Craft Oven Module is an enclosed oven that sits on the same base. Cure powdered DTF film up to 17 x 17 in and press it on the Heat Press Module, so your transfers come from your own shop. It also sublimates mugs and tumblers with shrink wrap (keep your design about 1 in, 25 mm, from the handle), handles blanks like wind spinners, and bakes polymer clay, shrink plastic and dried flowers.

DTF curing up to 17 x 17 in
Chamber 15.6 x 6.2 x 3.1 in
Three-layer replaceable filter

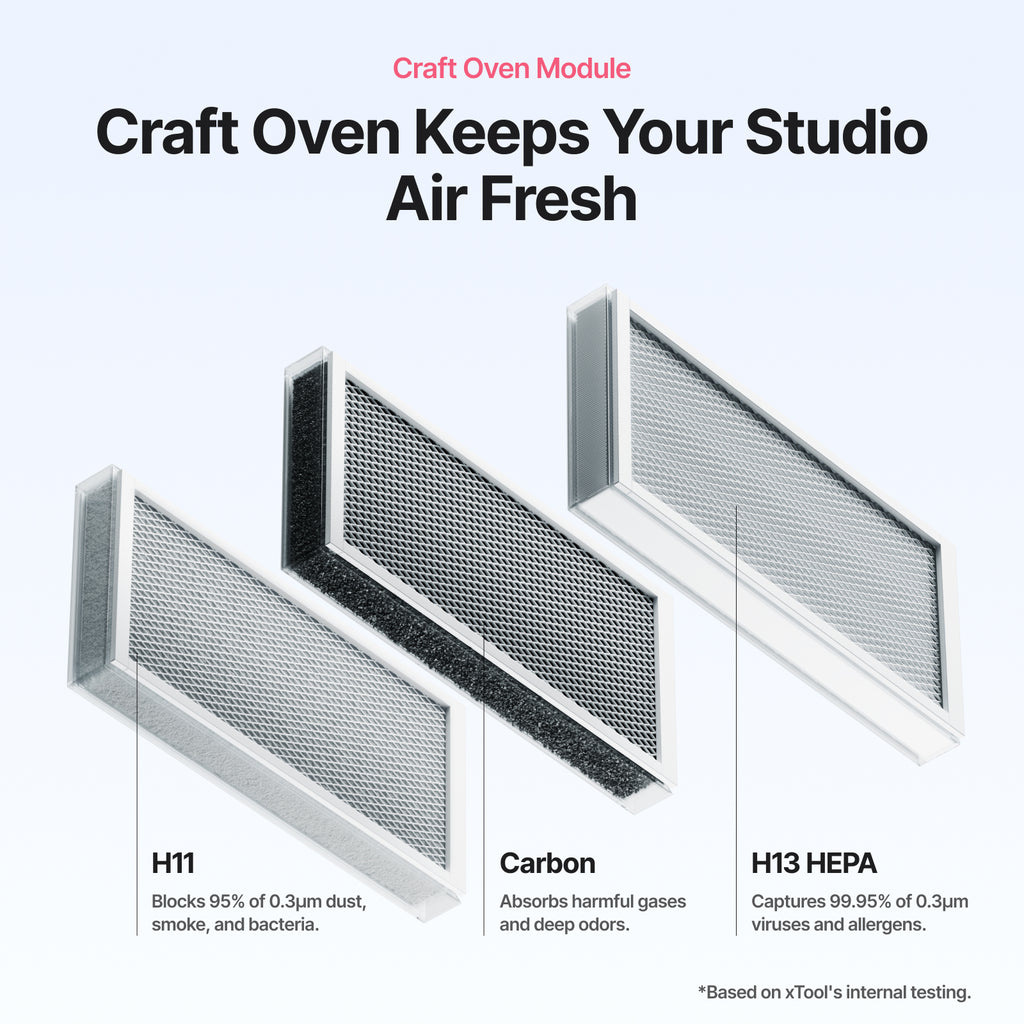

The Craft Oven's three filter layers: H11, carbon and H13 HEPA

A built-in three-layer filter (H11, carbon and H13 HEPA) means you don't need an exhaust pipe or an air purifier to use it indoors. The filter is replaceable.

3D Form Module · Heat Press + 3D Form, All-In-One, Deluxe

Phone cases, badges and molds of your own.

The 3D Form Module gives you two jobs on one module.

Phone cases and round badges sublimated with full-wrap designs — **3D sublimation**You wrap a full-color design around phone cases, badges, keycaps and other curved items.

A bear figure vacuum formed into a clear mold, demolded, then recast as an ice cube, a candle and a resin keychain — **Vacuum forming**You pull TPU, HIPS or PETG sheet over an object to copy it into a mold or make packaging for your products, then cast candles or resin pieces in that mold.

Before you buy: for 3D work, your item needs a sublimation coating or a compatible polymer, plus the matching mold or fixture. Anything you form over has to handle 100 °C (212 °F), or you preheat the sheet first. Shapes with undercuts won't release well, so avoid them.

Forming area up to 8 x 10 in
Forming height up to 3.5 in
3D sublimation area up to 4.8 x 9 in
-90 kPa suction

Dual Station · Efficiency Boost Deluxe Bundle only

Load the next shirt while one presses.

The Efficiency Boost Deluxe Bundle adds the Dual Station, which holds two Heat Press Modules. While one is pressing, you're already laying out the next garment on the other.

Pick the package that matches your work.

Every package is the same WonderPress with the Heat Press Module. The difference is which modules come with it, and each card shows the price of that whole package.

Heat Press Standalone
Fits you if
You press apparel, bags and flat sublimation blanks.
You get
The WonderPress with the Heat Press Module.
Heat Press + Craft Oven Module
Fits you if
You print DTF and want to cure your own transfers, or you're adding mugs and tumblers.
You get
The Heat Press Module plus the Craft Oven Module.
Heat Press + 3D Form Module
Fits you if
You want to add phone cases, badges, keycaps or your own molds.
You get
The Heat Press Module plus the 3D Form Module.
All-In-One Bundle
Fits you if
You want every module's work on one base: apparel, curved items, molds, DTF curing and mugs.
You get
The Heat Press, Craft Oven and 3D Form Modules.
Efficiency Boost Deluxe Bundle
Fits you if
You want everything in the All-In-One, plus a second press so you can load one garment while the other presses.
You get
All three modules, the Dual Station and a second Heat Press Module.

Which package covers each kind of work
Work	Standalone	+ Craft Oven	+ 3D Form	All-In-One
Tees, hoodies, bags and flat sublimation blanks
Cure your own DTF transfers	No		No
Mugs and tumblers	No		No
Phone cases, badges and keycaps	No	No
Molds and product packaging	No	No
Load one garment while another presses	No	No	No	No

Not sure which one covers what you make? Tell us below and a specialist will point you to the right package.

What customers say.

Everything in each package, piece by piece.

Pick a package to see what comes in it. The bundles combine the boxes for each module they include.

Heat Press Standalone Heat Press + Craft Oven Module Heat Press + 3D Form Module All-in-One Bundle Efficiency Boost Deluxe Bundle

Heat Press Standalone

The WonderPress and the Heat Press Module, ready for your flat work.

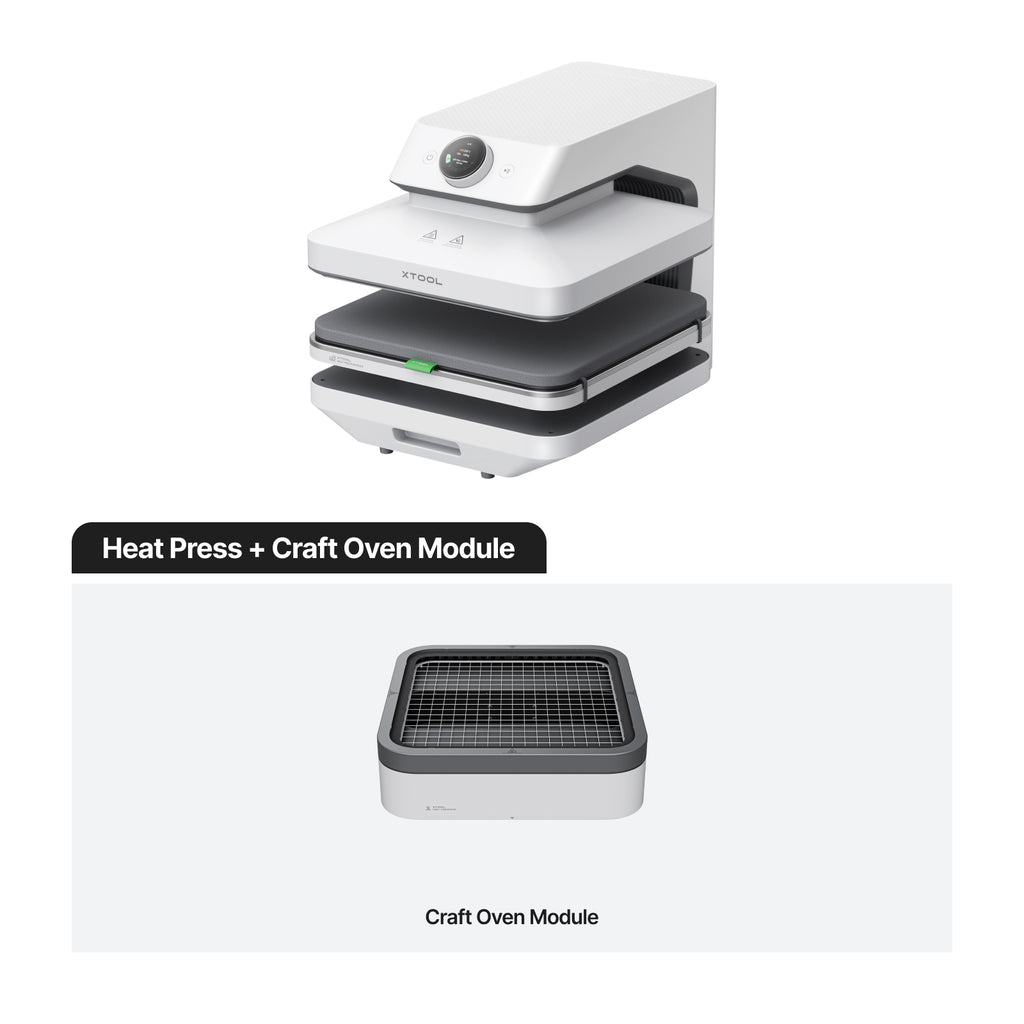

Heat Press + Craft Oven Module

Everything in the Standalone, plus the Craft Oven Module's box.

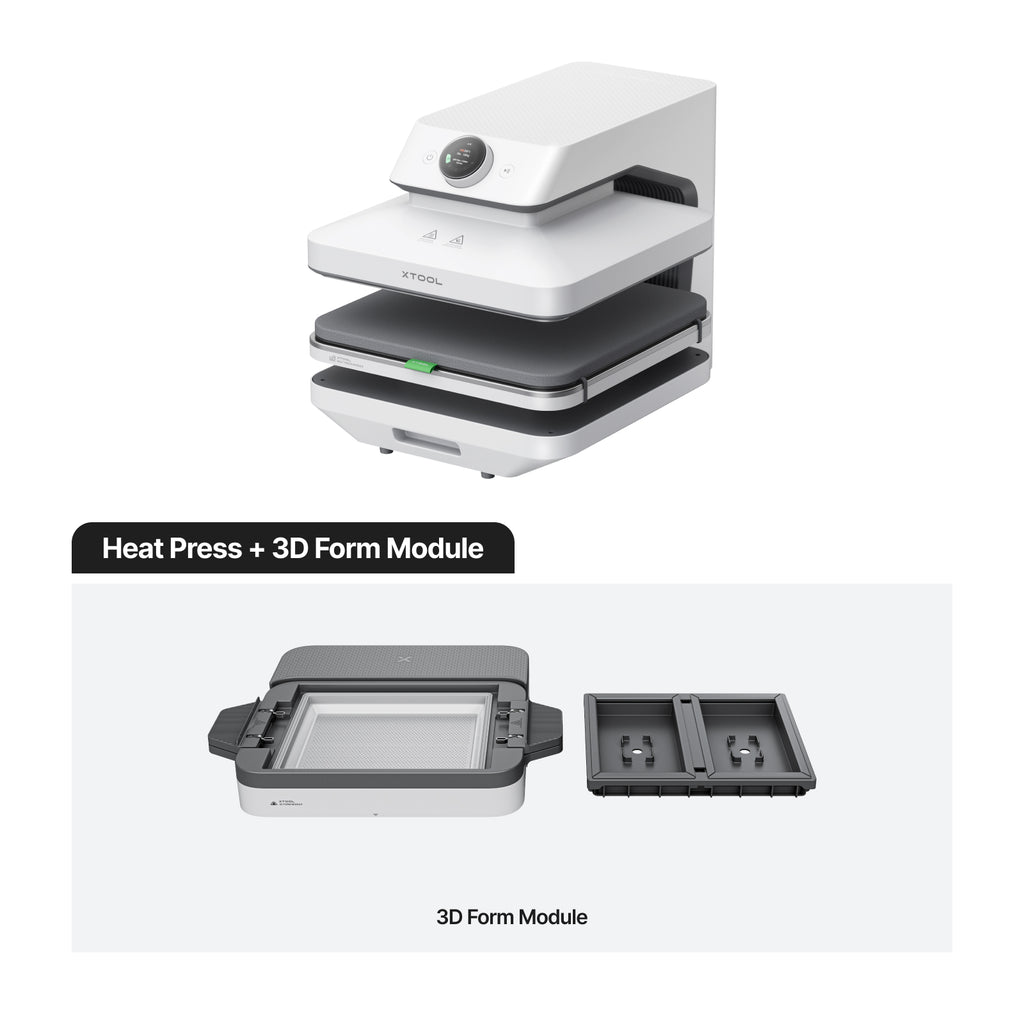

Heat Press + 3D Form Module

Everything in the Standalone, plus the 3D Form Module and a starter pack of material.

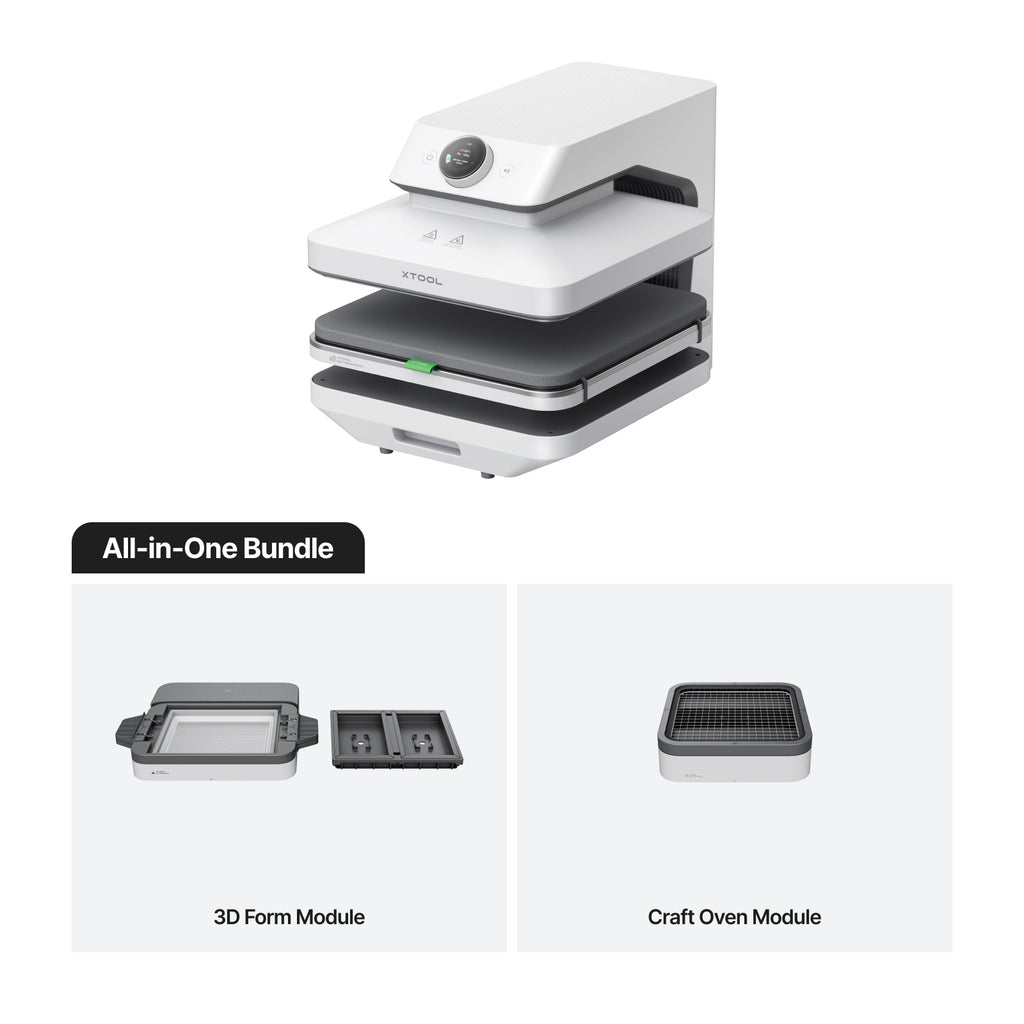

All-In-One Bundle

The Standalone with both module boxes, Craft Oven and 3D Form.

Efficiency Boost Deluxe Bundle

Everything in the All-In-One, plus the Dual Station and a second Heat Press Module.

Watch the WonderPress at work.

Our look at the WonderPress and its modules

Shirts, mugs and 3D pieces from the same machine, filmed by our team.

Full specs

Product details

What's in the box, the full specs and what it works with.

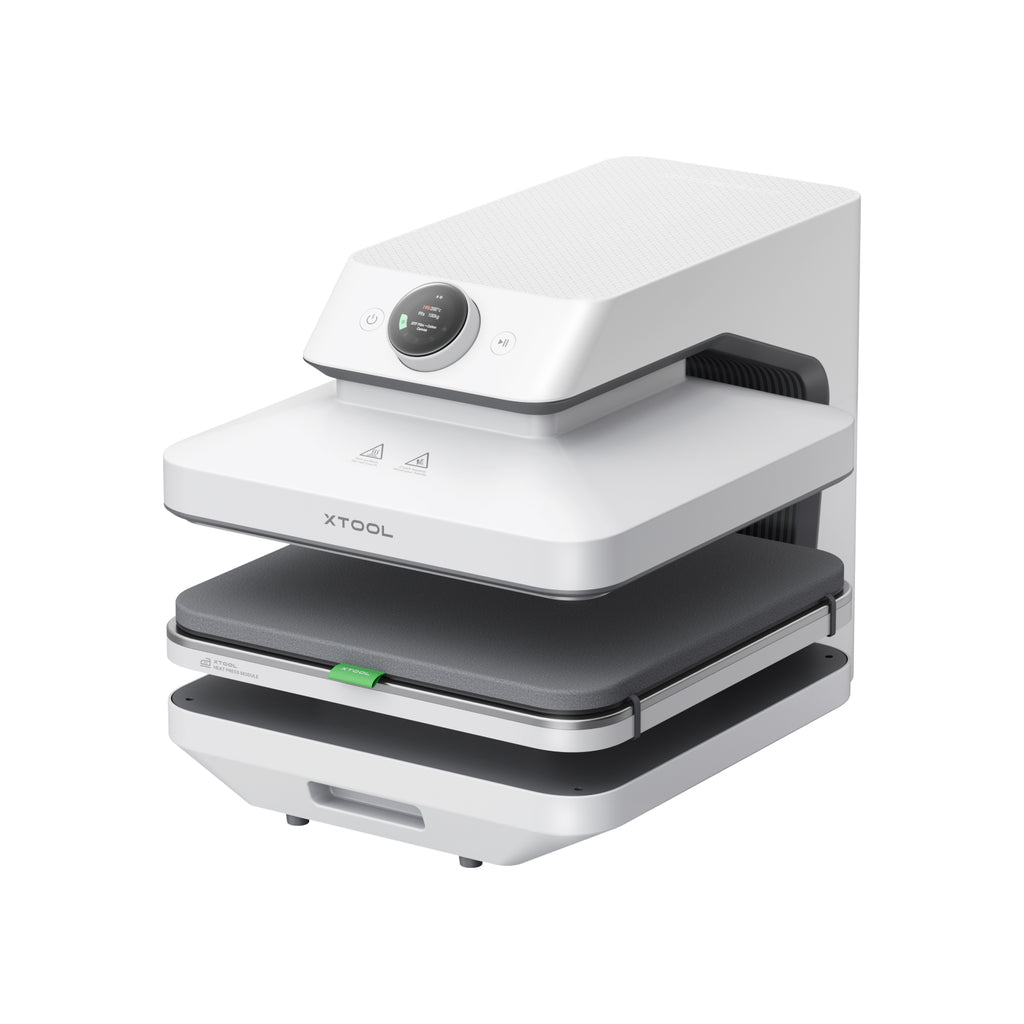

Press shirts, hoodies and bags on a heat press that sets the pressure for you. Choose a package with the 3D Form or Craft Oven Module and the same xTool WonderPress also turns out phone cases, keycaps, mugs, your own cured DTF transfers and vacuum-formed molds, without a second machine for each.

Every package comes with the Heat Press Module, which applies the pressure for you and opens wide enough for the thickest hoodies. The 3D Form Module puts full-color designs on curved items and copies physical objects into molds. The Craft Oven Module cures DTF transfers and sublimates mugs indoors, with a built-in filter so you don't need an exhaust line. Pick the package that matches the work you want to take on.

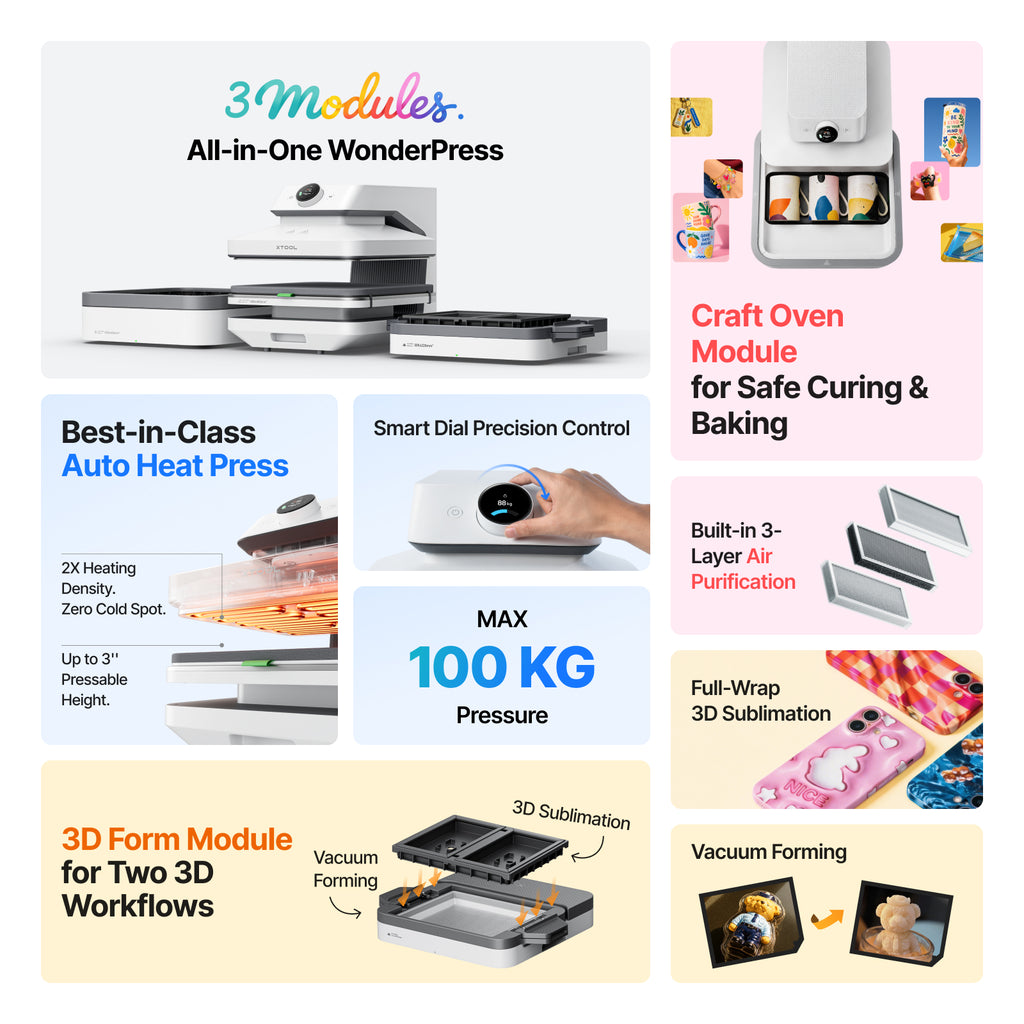

Key Features

Pressure the press applies for you: set the pressure for the job and WonderPress applies it automatically, up to 220 lb.
Room for thick garments: the tall opening has room for the thickest hoodies.
A starting point for every job: built-in presets for each module, plus the cloud preset library in the xTool Studio app, so you start from a tested setting instead of guessing.
Swap modules in seconds: modules plug into the same base with no tools, and you can change them without powering down.
3D Form Module adds curved products and molds: sublimate phone cases, badges and keycaps, or vacuum-form plastic sheet over an object to make your own molds and product packaging.
Craft Oven Module adds DTF curing and mugs: cure powdered DTF film in-house, sublimate mugs and tumblers, and bake polymer clay or shrink plastic. Its three-layer filter means no exhaust pipe or air purifier.
Dual Station keeps the next order ready: in the Efficiency Boost Deluxe Bundle, two Heat Press Modules sit on one station, so you load the next garment while the other presses.
Built-in safety: auto standby after 15 minutes, overheat protection and a slide-out design.

Applications

T-shirts, hoodies and apparel: press HTV and DTF transfers with the Heat Press Module.
Canvas, nylon and drawstring bags: add HTV designs with the Heat Press Module.
Sublimation flats: metal blanks, keychains, slate and fridge magnets with a sublimation coating.
Acrylic bending: heat and bend acrylic sheet on the press.
Phone cases, badges and keycaps: wrap a design around curved items with the 3D Form Module.
Custom molds and packaging: vacuum-form TPU, HIPS or PETG sheet over an object with the 3D Form Module.
DTF transfers: cure your own powdered DTF film in the Craft Oven Module before pressing.
Mugs and tumblers: sublimate drinkware in the Craft Oven Module with sublimation shrink wrap.
Oven crafts: bake polymer clay, shrink plastic and dried flowers in the Craft Oven Module.

Compatibility & Requirements

Modules for this base
- xTool 3D Form Module (included in the Heat Press + 3D Form, All-In-One and Deluxe packages)
- xTool Craft Oven Module (included in the Heat Press + Craft Oven, All-In-One and Deluxe packages)
- xTool Dual Station (included in the Efficiency Boost Deluxe Bundle)
Materials it takes
- Standard sublimation paper and film
- Heat transfer vinyl (HTV)
- TPU, PETG and HIPS forming sheets
For 3D sublimation
- Items need a sublimation coating or a compatible polymer
- Use the mold or fixture that matches the item
- Anything placed in the former with the sheet must handle 100 °C, or preheat the sheet first
- Avoid shapes with undercuts
For mugs in the Craft Oven
- Keep the design 25 mm away from the handle
Not supported
- PVC and other vinyl-chloride materials
- Items of unknown composition
- Food, and flammable, explosive or pressurized items

Specifications

Heat Press Module and main unit

Heat platen	15 x 15 in (380 x 380 mm)
Temperature range	176 to 410 °F (80 to 210 °C)
Pressure range	44 to 220 lb (20 to 100 kg), automatic
Time range	1 to 999 seconds
Opening clearance	Up to 3 in (75 mm)
Input voltage and rated power	AC 100 to 120V, 1150 to 1650W, 50/60 Hz
Main unit dimensions	16.5 x 21.6 x 16.5 in (418 x 549 x 410 mm)
Main unit weight	48.5 lb (22 kg)

3D Form Module

Maximum suction	-90 kPa
Vacuum forming area (film sheets)	Up to 8 x 10 in (203 x 254 mm)
Maximum forming height	Up to 3.5 in (90 mm)
Maximum sublimation area (objects)	Up to 4.8 x 9 in (122 x 229 mm)
xTool pre-cut sheet sizes	Forming sheets 310 x 255 mm / 3D sublimation film 148 x 254 mm
Dimensions	20.5 x 16.1 x 4.2 in (522 x 410 x 108 mm)
Weight	15.9 lb (7.2 kg)

Craft Oven Module

DTF curing area	Up to 17 x 17 in (432 x 432 mm)
Chamber size	15.6 x 6.2 x 3.1 in (398 x 158 x 80 mm)
Air filtration	Built-in 3-layer filter: H11 / carbon / H13 HEPA
Dimensions	18.3 x 18.3 x 5.5 in (465 x 465 x 140.7 mm)
Weight	9.7 lb (4.4 kg)

Controls and general

Display and controls	1.8 in screen / rotary knob
Software	xTool Studio app with cloud preset library
Built-in presets	35: Heat Press 10 / Vacuum Forming 10 / Vacuum Sublimation 5 / Oven Baking 5 / Oven Curing 5 (shown for the installed module)
Safety	Auto standby after 15 minutes / overheat protection / slide-out design
Body material	PC/PBT
Color	White
Storage temperature	-4 to 140 °F (-20 to 60 °C)
Warranty	12 months (xTool standard warranty)

What's Included

Heat Press Standalone

For apparel, bags and flat sublimation blanks.

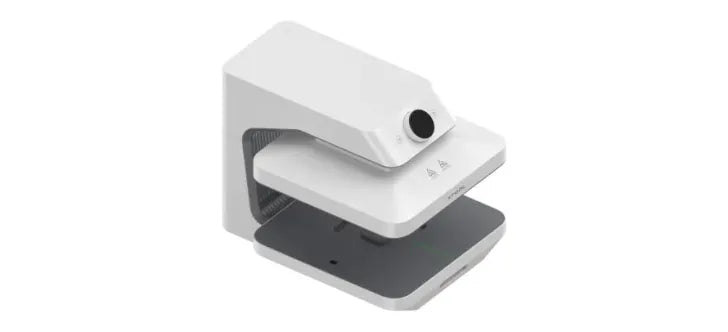

WonderPress main unit

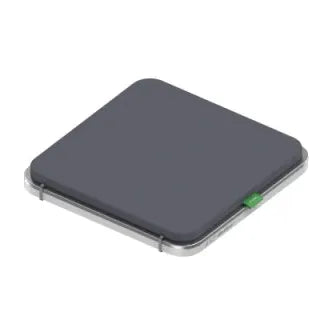

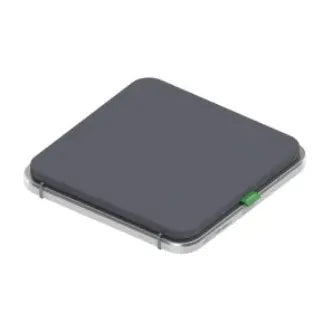

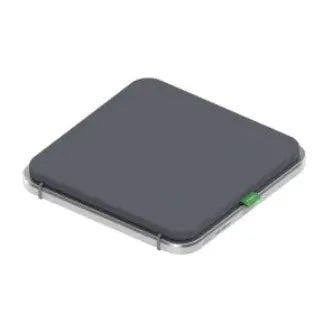

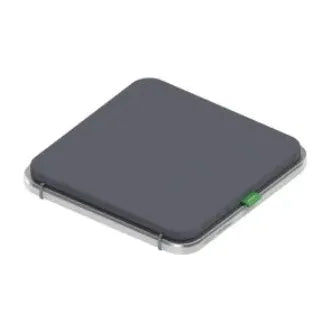

Heat Press Module with replaceable heat insulation pad

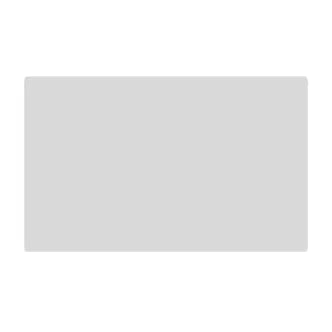

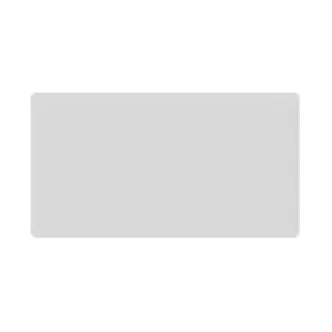

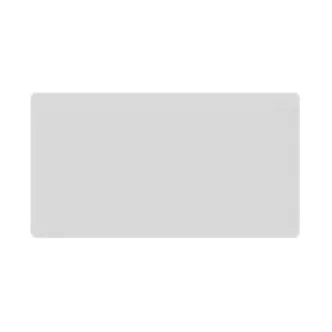

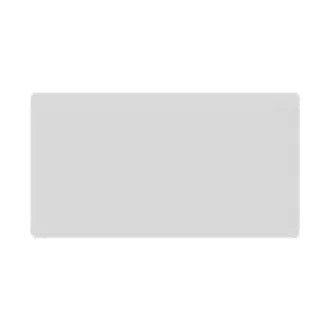

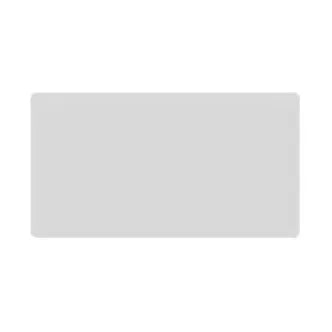

Heat-resistant sheet
Quick Start Guide
Safety Instructions

Heat Press + Craft Oven Module

For shops that print DTF and want to cure their own transfers, or add mugs and tumblers.

Everything in the Heat Press Standalone

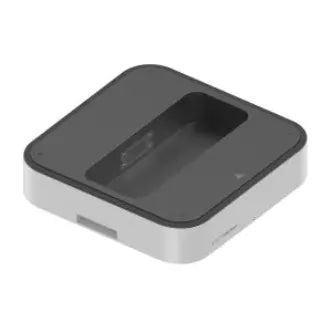

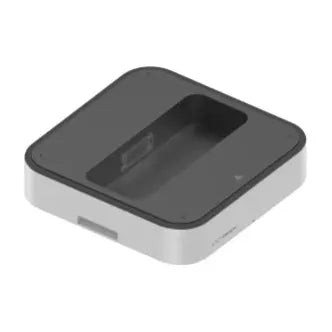

Craft Oven base

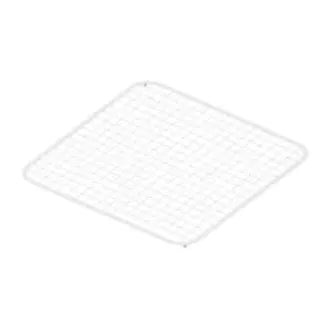

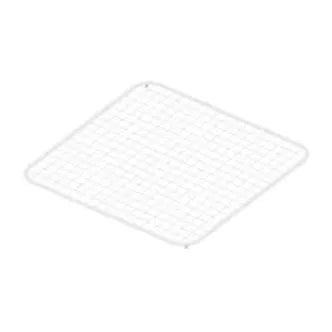

Mesh tray

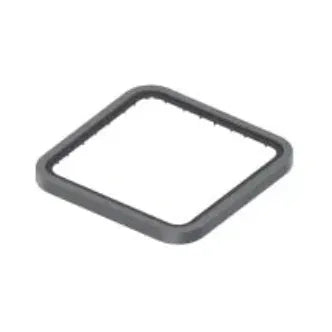

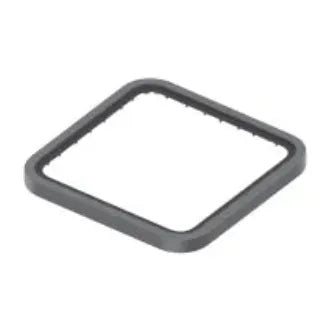

Sealing frame

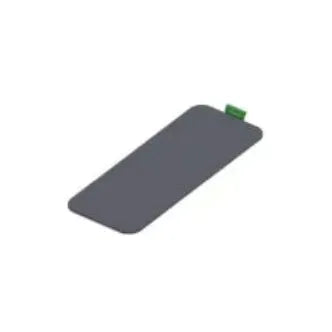

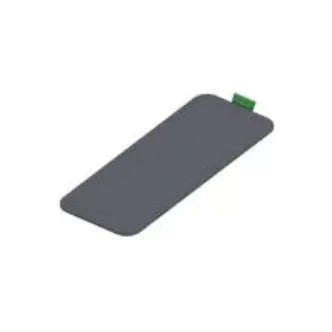

Heat insulation pad

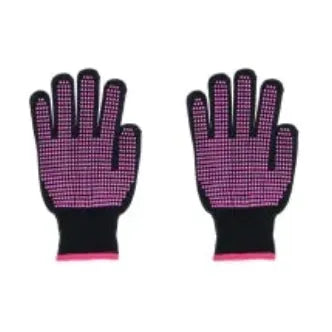

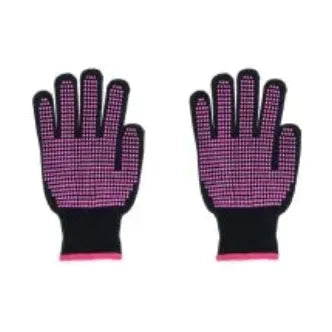

Heat-resistant gloves

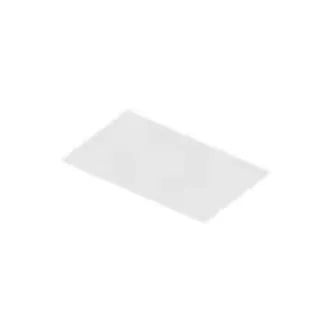

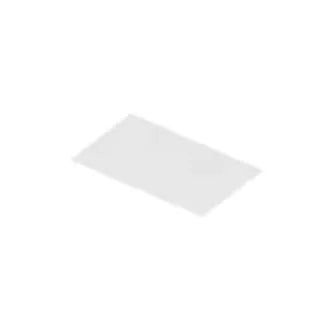

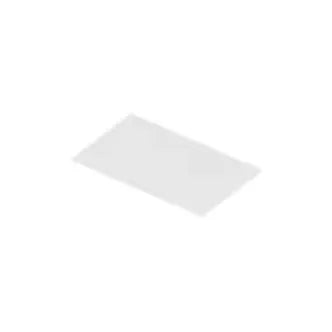

Sublimation shrink wrap

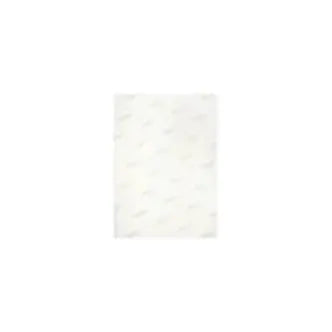

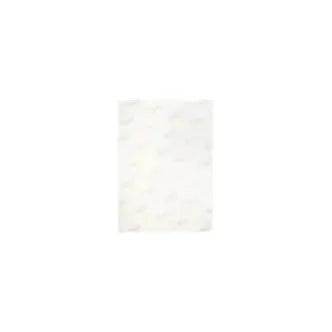

Sublimation paper

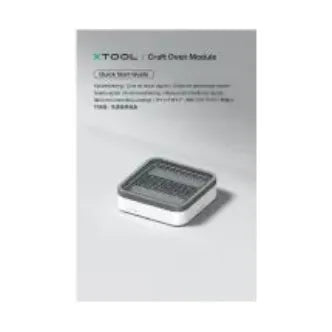

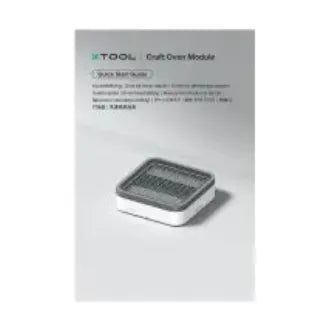

Craft Oven Quick Start Guide

Heat Press + 3D Form Module

For phone cases, badges, keycaps and custom molds.

Everything in the Heat Press Standalone

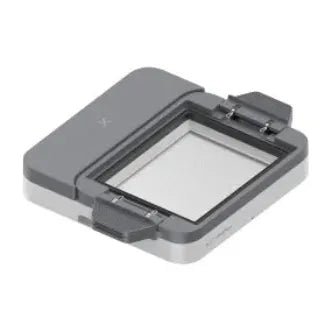

3D Form base

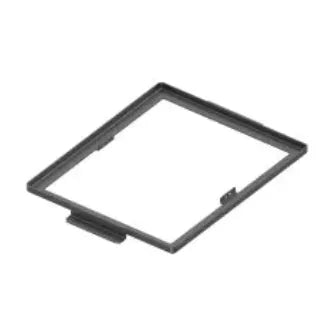

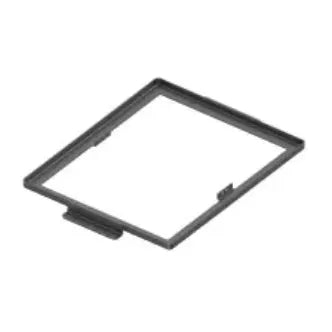

Vacuum forming pressing frame

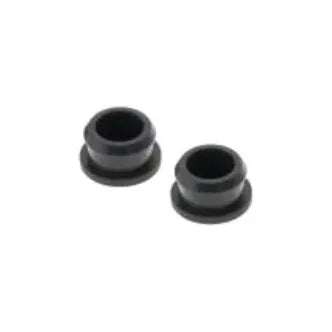

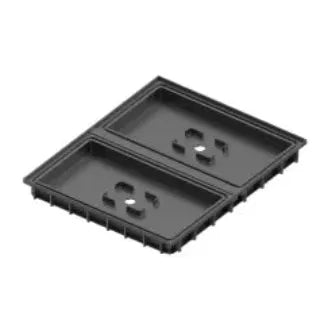

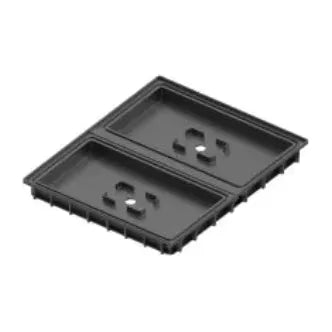

Vacuum sublimation lower frame with pre-installed silicone plugs

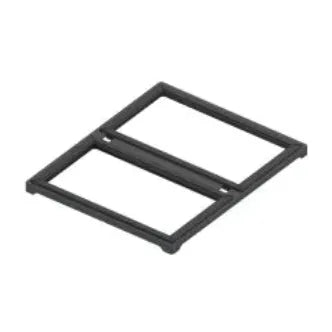

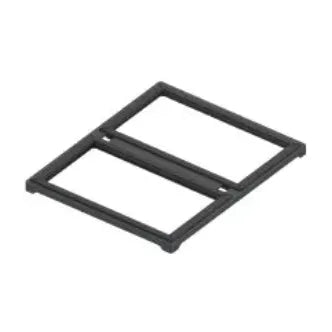

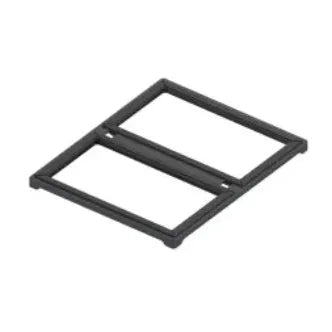

Vacuum sublimation upper frame

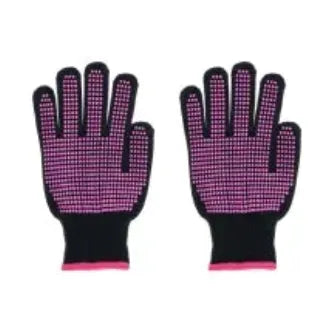

Heat-resistant gloves

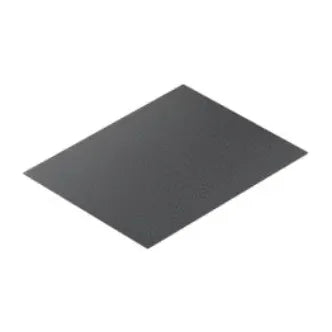

Metal mesh plate

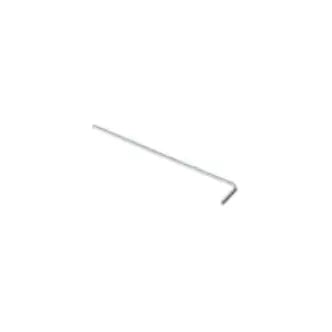

Hex key

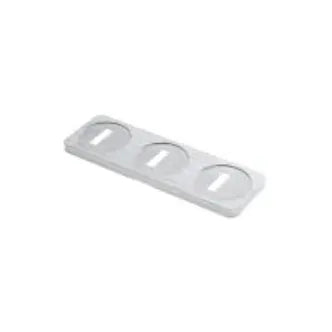

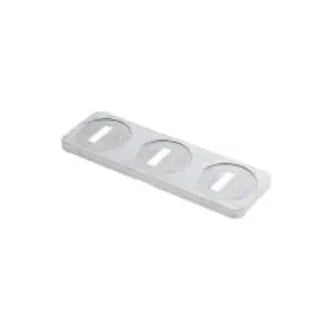

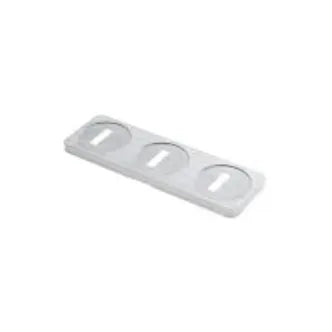

Badge jig
3D Form Quick Start Guide

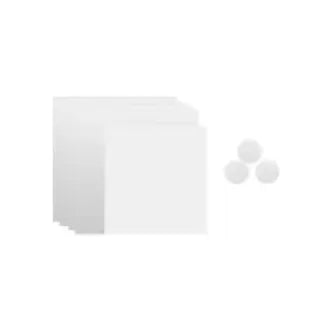

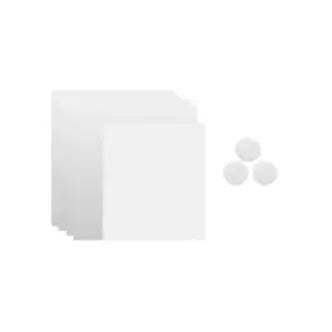

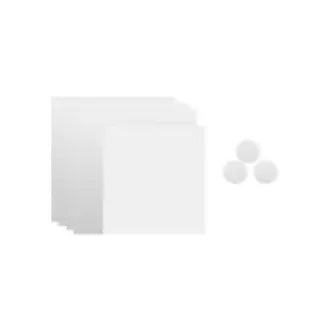

Starter material pack: PETG forming film 255 x 310 mm, TPU forming film 255 x 310 mm, vacuum sublimation film 148 x 254 mm, one badge and one heart-shaped mold

All-In-One Bundle

Every module's work on one base: apparel, curved items, molds, DTF curing and mugs.

Everything in the Heat Press Standalone
Everything in the Craft Oven Module box listed above
Everything in the 3D Form Module box listed above, including the starter material pack

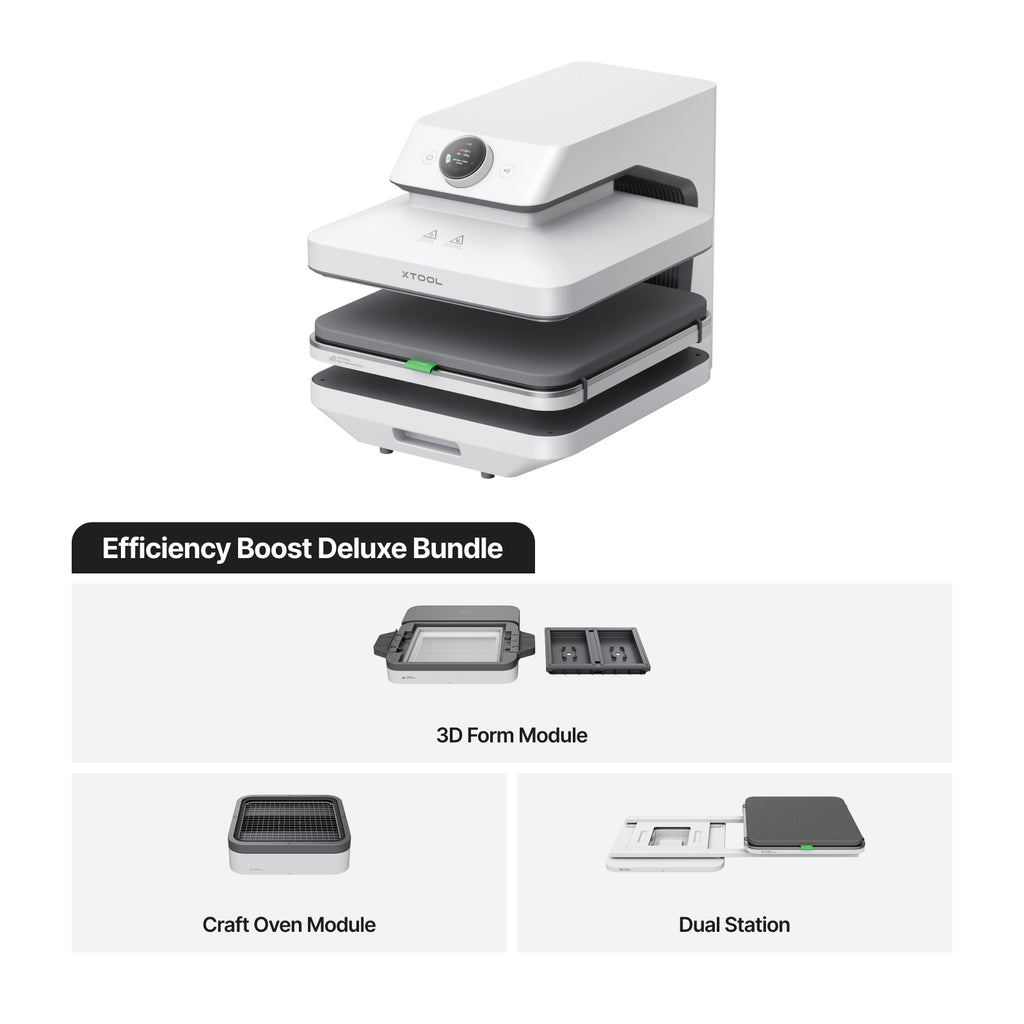

Efficiency Boost Deluxe Bundle

The All-In-One Bundle plus a Dual Station and a second Heat Press Module, so you load the next garment while one presses.

Everything in the All-In-One Bundle

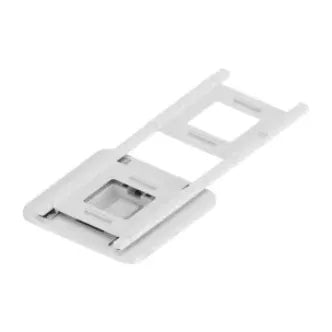

Dual Station base

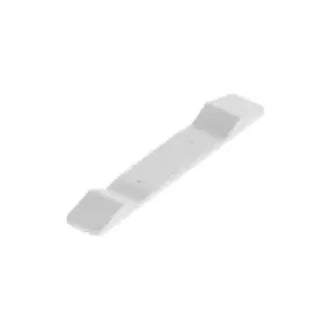

Stabilizing stand

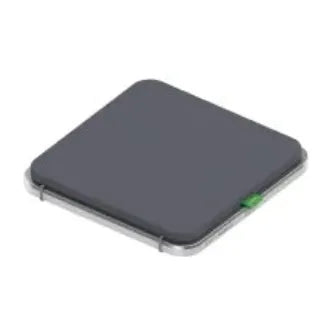

Second Heat Press Module

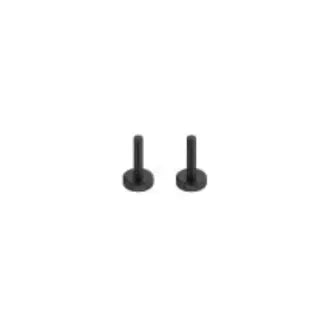

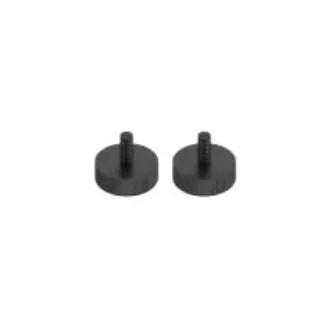

Hex screws and thumb screws

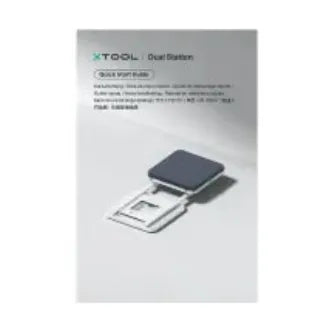

Dual Station Quick Start Guide

Warranty & Support

WonderPress is covered by xTool's standard 12-month warranty.
