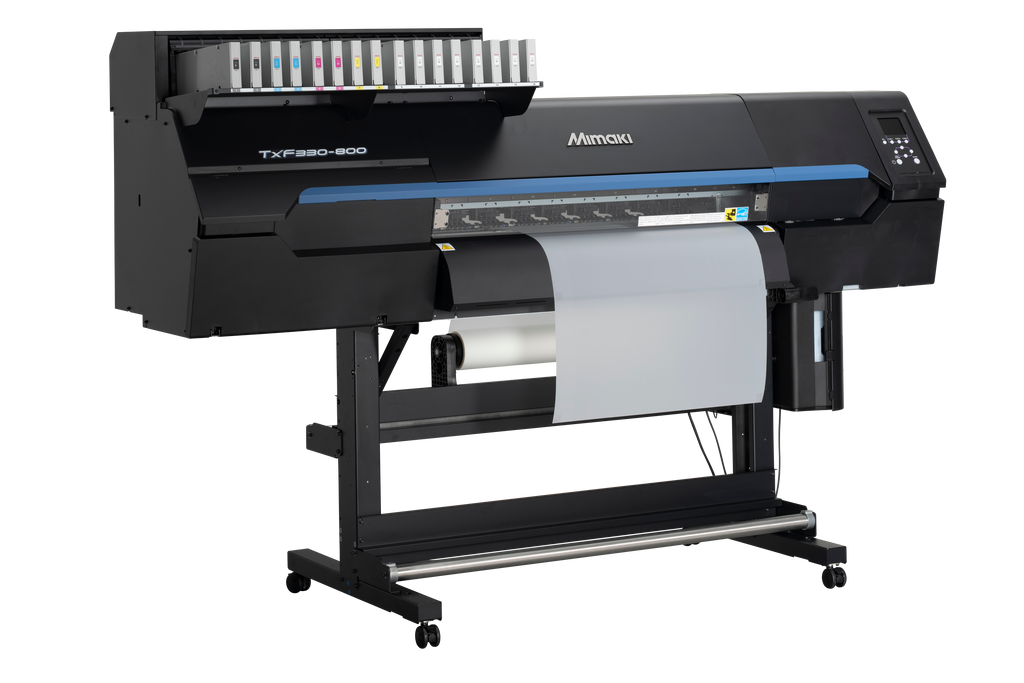

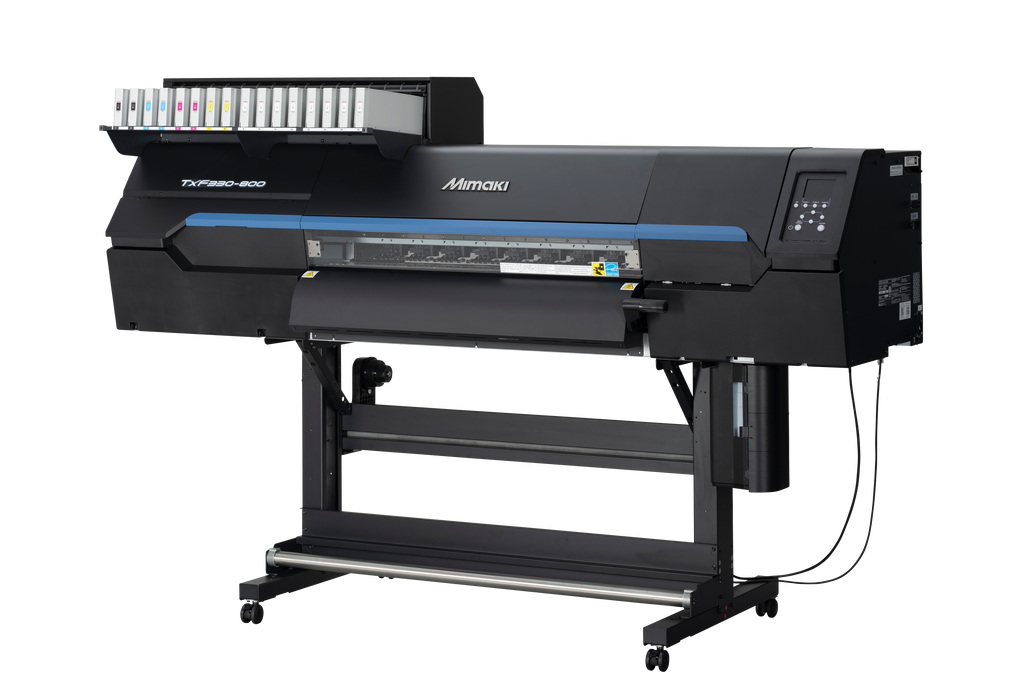

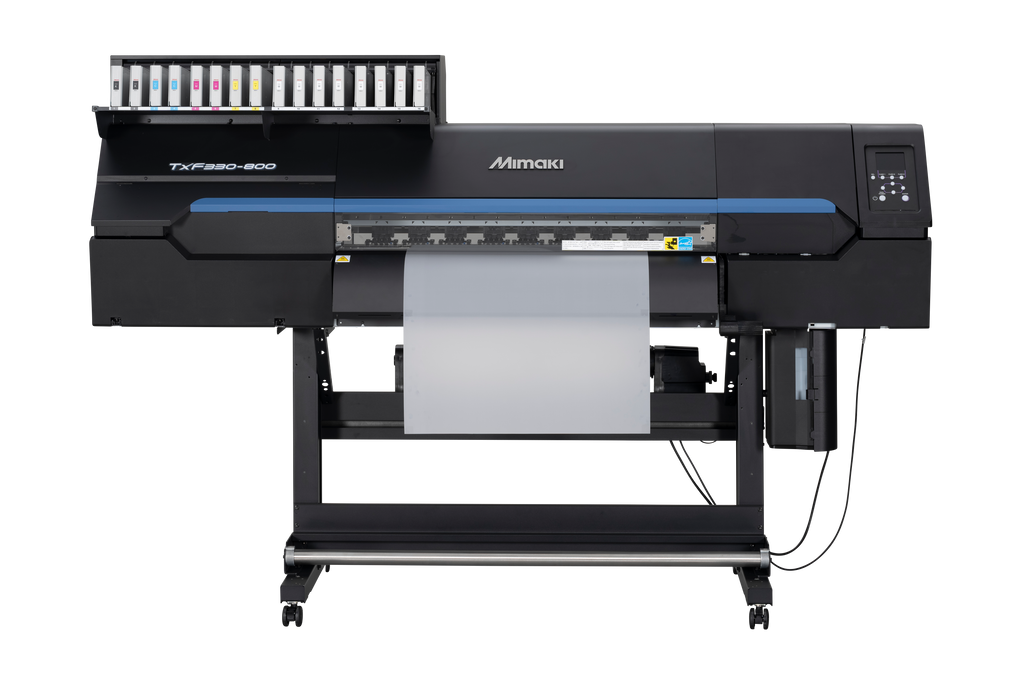

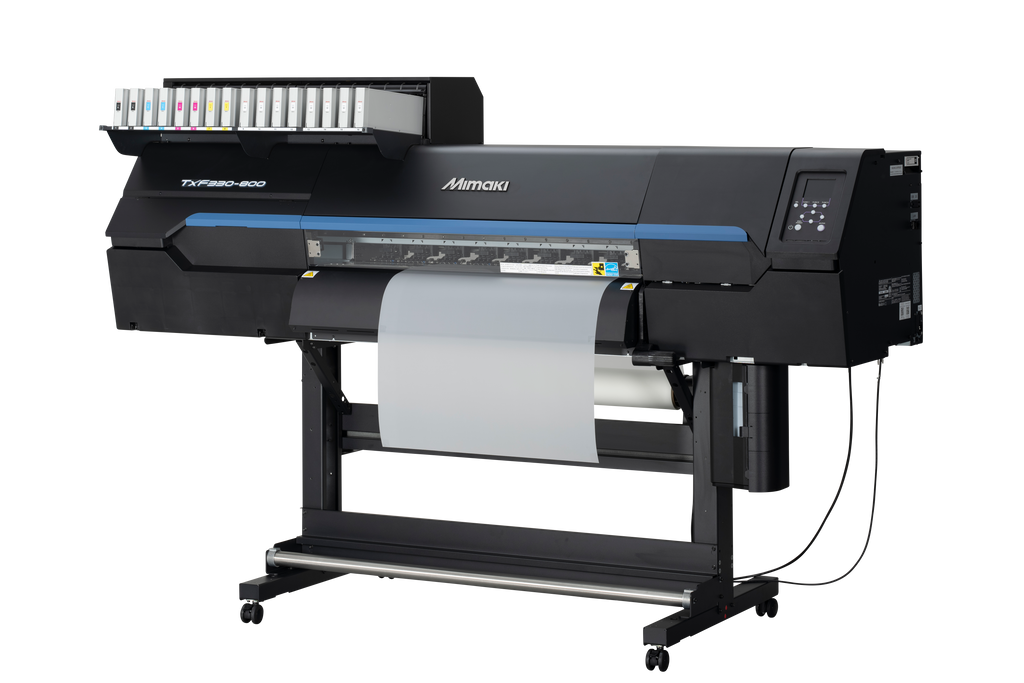

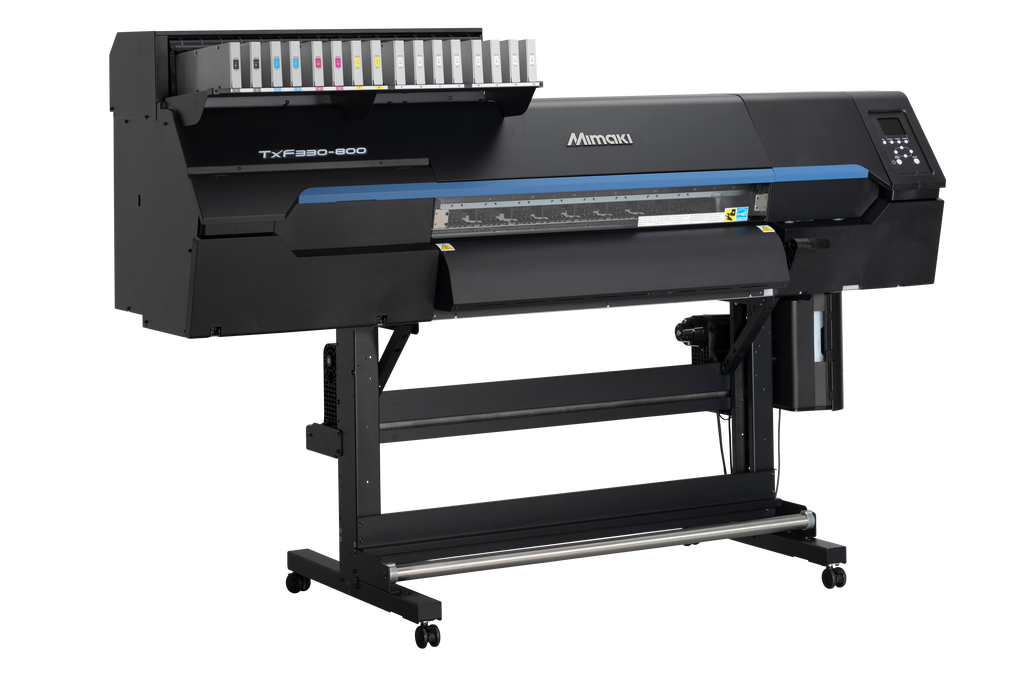

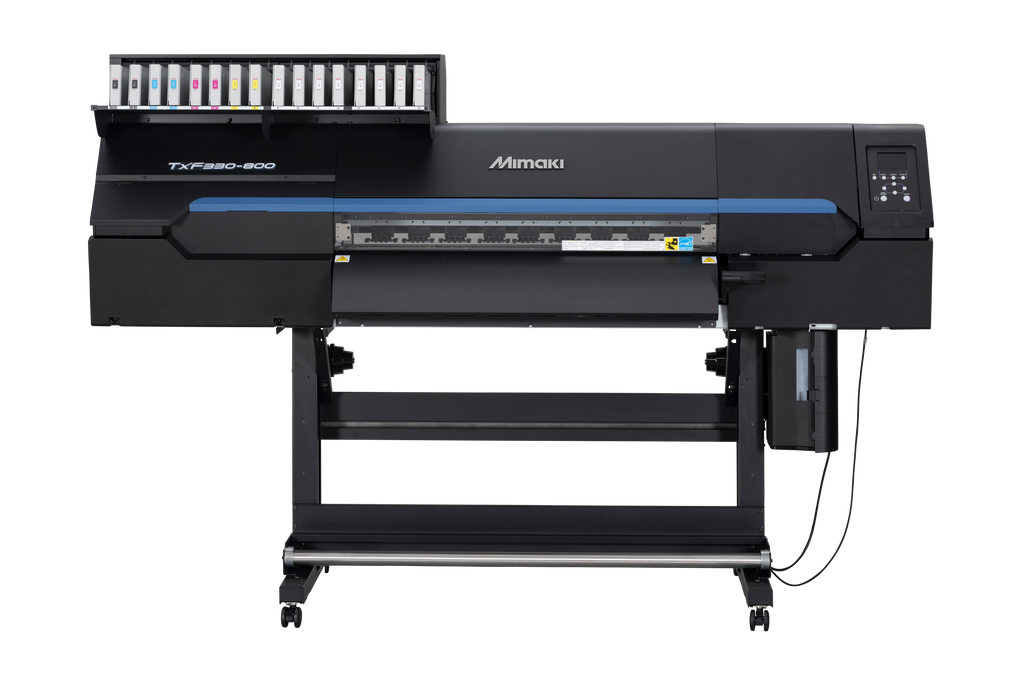

Mimaki TxF330-800 DTF Printer
The Mimaki TxF330-800 is a DTF printer equipped with Mimaki's flagship 330 Print Engine, designed for high-quality, high-speed DTF production. It offers two ink configuration options: CMYK + White for productivity-focused operation and CMYK + Sky Blue + Pale Pink + White for expanded color reproduction. DB30363-01_TxF330-800_EN
Key Features
- 800mm / 31.5" maximum print width
- Mimaki 330 Print Engine
- Up to 1.5× the productivity of the previous model
- Production speed up to 11.5 m²/h with the 4-color + white configuration
- Supports continuous output using 100m DTF film rolls
-
CMYK + White configuration for productivity-focused operation
-
CMYK + Sky Blue + Pale Pink + White configuration for expanded color reproduction

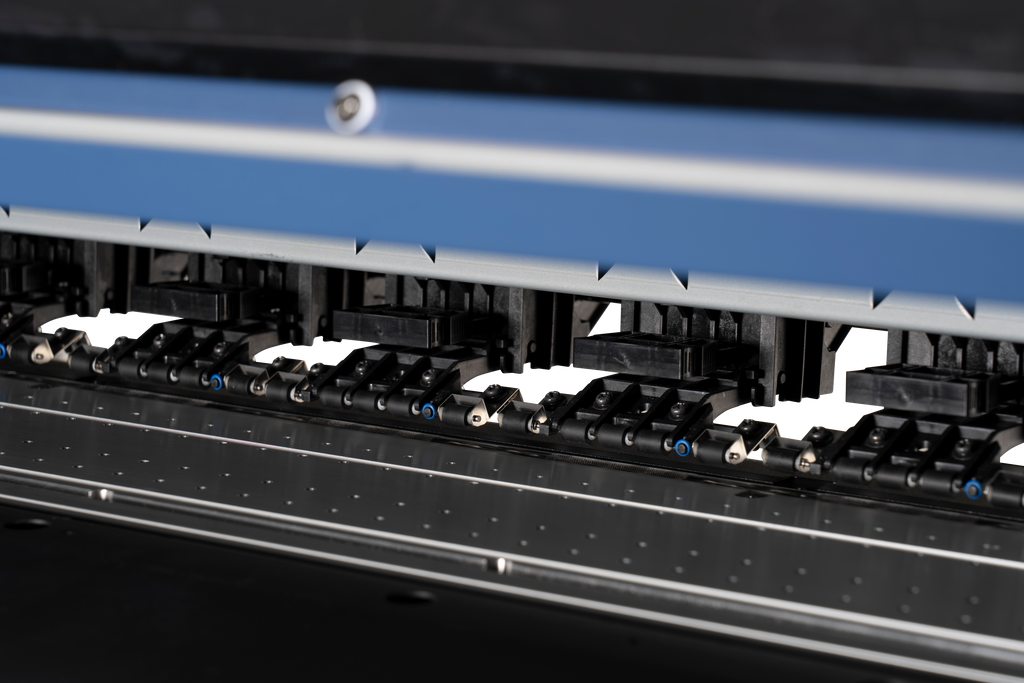

- High-density printheads with droplet control as small as 4 pl
- Smooth gradations and dense solid fills
- NCU (Nozzle Check Unit) detects missing nozzles and automatically performs cleaning
- NRS (Nozzle Recovery System) enables printing to continue using substitute nozzles when a nozzle cannot be recovered
- MCT Version 2 full ink circulation system stabilizes white ink discharge and reduces ink waste during nozzle cleaning

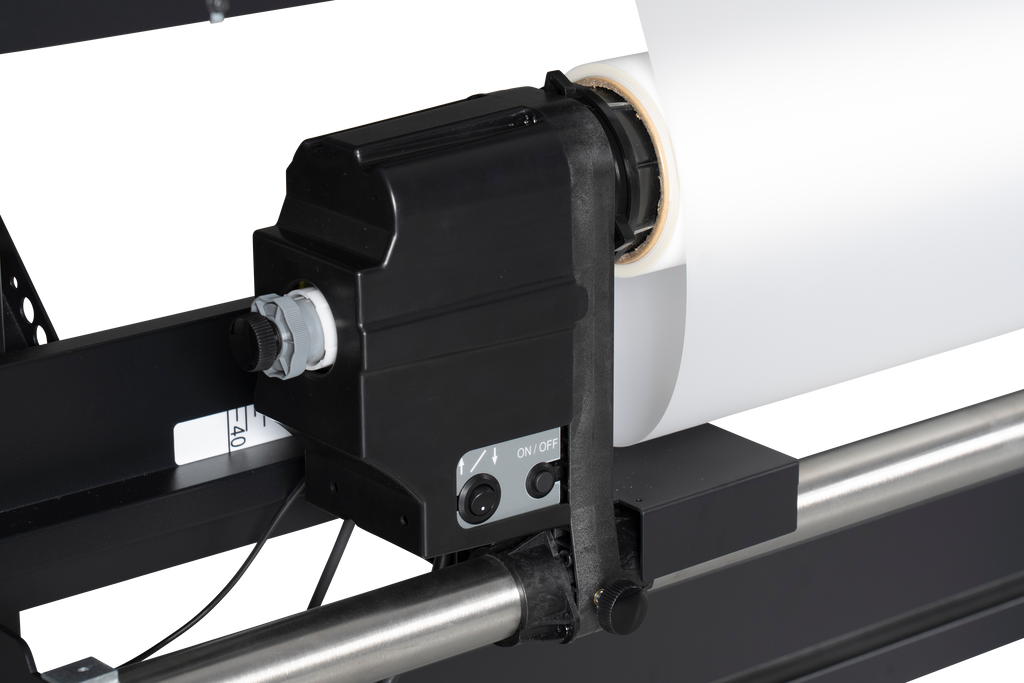

- Mimaki Feed Tension Technology
- Mimaki Genuine Heat-Transfer Pigment Ink PHT50
- RasterLink7 supports variable printing and special color plate generation
-
Mimaki Remote Access for remote monitoring and operation DB30363-01_TxF330-800_EN DB30363-01_TxF330-800_EN
Compatibility & Requirements
-
Printing Method: DTF (Direct To Film)
-
Maximum Print Width: 800mm / 31.5"
-
Maximum Media Width: 810mm / 31.9"
-
Media Roll Diameter: Up to 250mm / 9.8"
-
Media Roll Weight: Up to 45kg / 99.2lb
-
Media Core: 2" / 3"
-
Ink: Mimaki Genuine Heat-Transfer Pigment Ink PHT50
-
RIP: RasterLink7
-
DTF production also requires DTF film, hot-melt powder, powder application equipment, post-processing equipment, and a heat press transfer machine. Mimaki recommends evaluating these components before use. DB30363-01_TxF330-800_EN
Specifications
-
Model: TxF330-800
-
Item Code: DB30363-01
-
Printhead: On-demand piezo head, 2 staggered layout
-
Printing Resolution: X: 600 / 1200 dpi; Y: 600 / 900 / 1200 dpi
-
Ink Configuration: 4-Color + White or 6-Color + White
-
Ink Colors: CMYK + White; Sky Blue + Pale Pink available with the 6-color configuration
-
Ink Capacity: Color 600mL; White 500mL
-
Maximum Print Width: 800mm / 31.5"
-
Maximum Media Width: 810mm / 31.9"
-
Media Roll Diameter: Ø250mm / 9.8" or less
-
Media Roll Weight: 45kg / 99.2lb or less
-
Media Core: 2" / 3"
-
Connectivity: Ethernet 1000 BASE-T, USB 2.0 Hi-Speed
-
Power Supply: Single-phase AC 100–120V / 200–240V ±10%, 50/60Hz ±1Hz
-
Power Consumption: 800W or less at 100–120V; 1.1kW or less at 200–240V
-
Dimensions (W × D × H): 2,084 × 700 × 1,389mm / 82.0 × 27.6 × 54.7"
-
Weight: 161kg / 354.9lb
-
Certifications: VCCI Class A, FCC Class A, ETL IEC 62368-1, CE, CB, REACH, Energy Star, RCM, KC DB30363-01_TxF330-800_EN DB30363-01_TxF330-800_EN DB30363-01_TxF330-800_EN
Setup & Use
The TxF330-800 is a DTF printer that prints onto DTF film using Mimaki PHT50 heat-transfer pigment ink. The DTF process then requires hot-melt powder, heating/drying, and heat pressing to transfer the printed ink layer onto fabric. DB30363-01_TxF330-800_EN
RasterLink7 supports variable printing for personalized items and special color plate generation. Its Fill in Contour function can convert vector objects and CMYK 0% areas into a special color plate for DTF printing, with EPS, PS, and PDF formats supported. DB30363-01_TxF330-800_EN
Care & Maintenance
The TxF330-800 incorporates systems designed to support stable operation during long print runs. The NCU detects missing nozzles and automatically performs cleaning, while the NRS allows printing to continue using substitute nozzles when a nozzle cannot be recovered. MCT Version 2 circulates ink to stabilize white ink discharge and reduce ink waste during nozzle cleaning. DB30363-01_TxF330-800_EN
Warranty & Support
The provided Mimaki catalog does not specify warranty coverage or support terms for the TxF330-800, so these details should be confirmed with the seller or Mimaki.
