When a customer asks for a personalized award, mug or mousepad, the Epson SureColor F170 lets you print the sublimation transfer yourself, in your own shop. It's set up for easy printing right out of the box, and its compact, space-saving design helps you make the most of your workshop space.
The auto-feed tray holds up to 150 sheets, and the high-capacity ink bottles mean you replace ink less often. Genuine Epson dye-sublimation ink gives your transfers strong, saturated color with high contrast, and Epson backs the printer with its own service and support.
Key Features
-
Sharp detail on every transfer: the PrecisionCore printhead controls each droplet for outstanding clarity.
-
Color that stands out: Genuine Epson dye-sublimation ink delivers deep color saturation and high contrast.
-
Less time feeding paper: load a stack into the auto-feed tray and it feeds the sheets for you, so you aren't loading them one at a time.
-
Replace ink less often: high-capacity ink bottles with auto-stop make filling easy and mess-free.
-
Ready to print out of the box: streamlined print software made for dye-sublimation comes with the printer, for Mac and Windows.
-
Soft and rigid products: on Epson DS Multi-Use transfer paper, it produces great images on both soft and rigid materials.
-
Wired or wireless: connect over Wi-Fi, Wi-Fi Direct, Ethernet or USB, and check the color display on the printer itself.
-
Saves workshop space: the compact design leaves you more room for the rest of your setup.
-
Backed by Epson: Epson's own service and support stand behind the printer.
Applications
-
Awards: personalize each one with a name, date or logo.
-

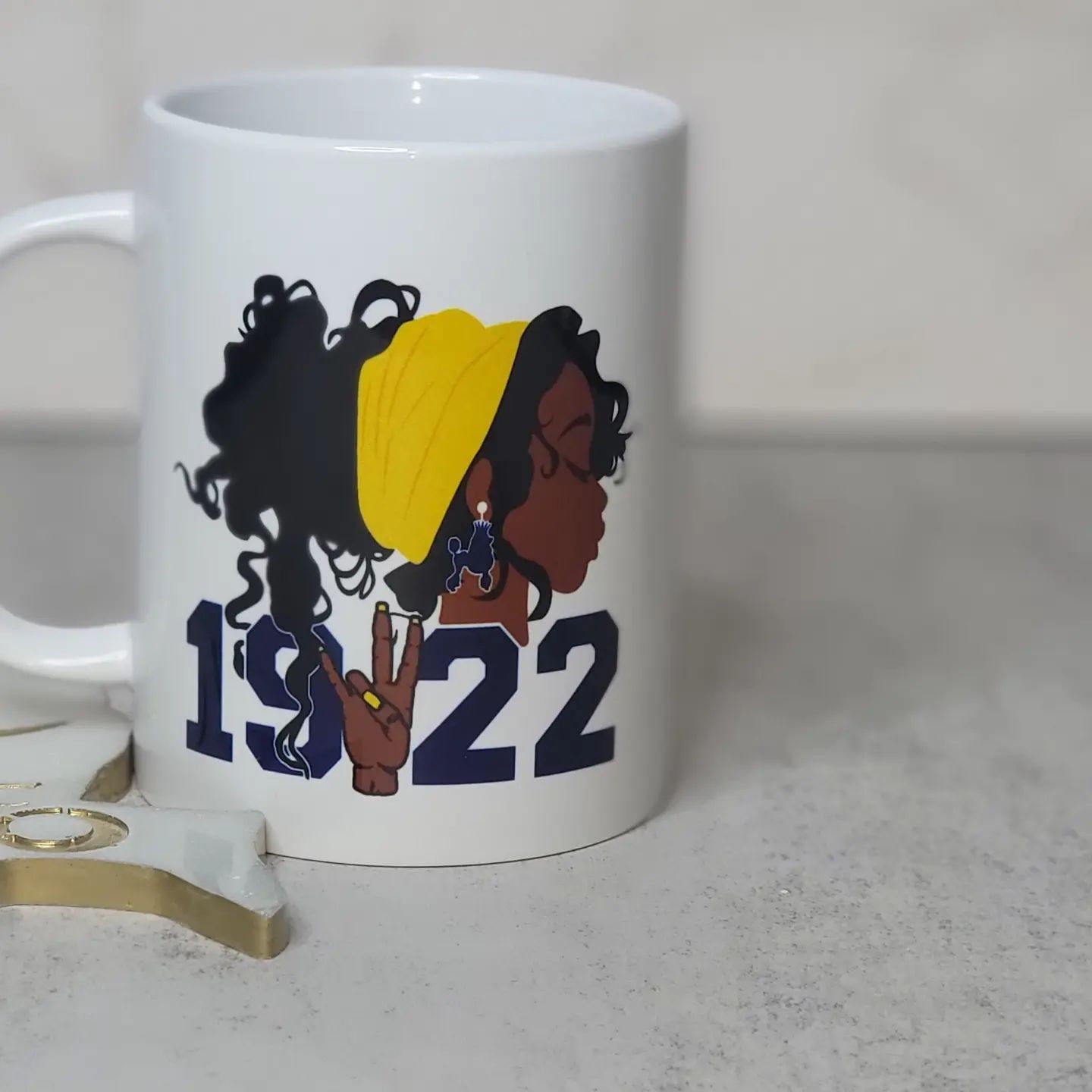

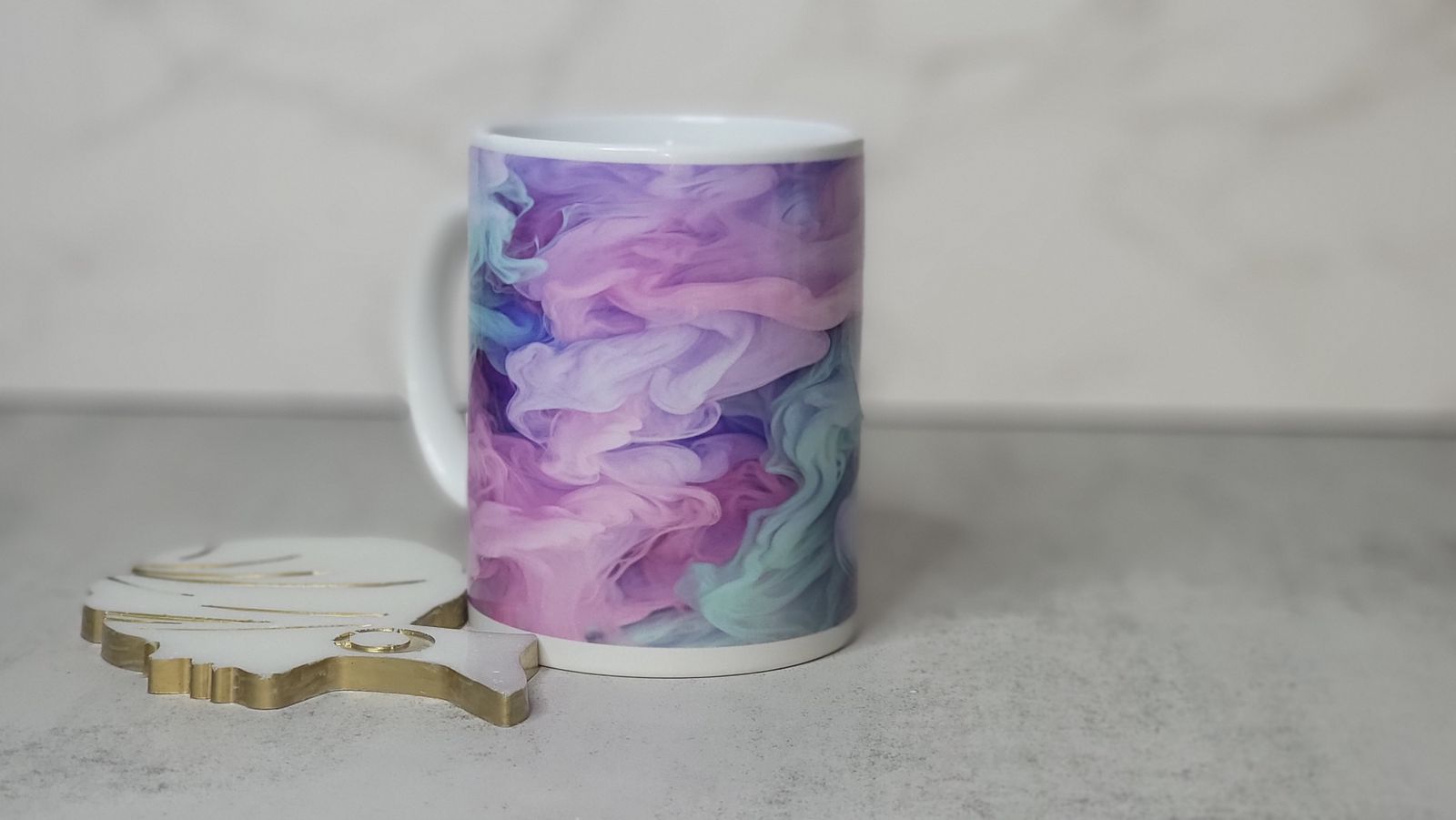

Mugs: print a customer's photo or design for a one-of-a-kind gift.
-
Mousepads: custom designs for businesses, teams and gifts.
-

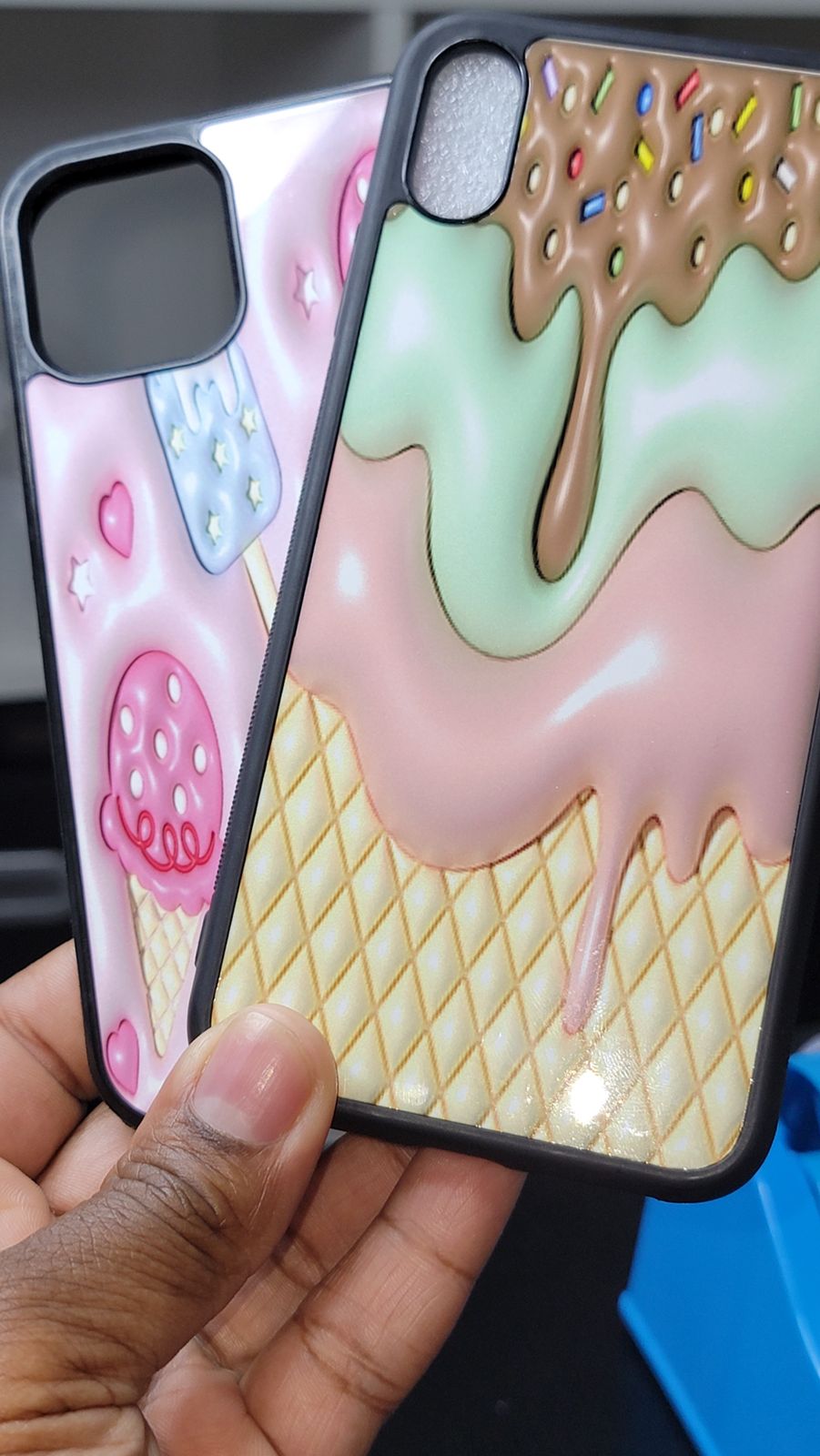

More soft and rigid items: the same transfer paper works on both, so you can keep adding products.
Compatibility & Requirements
-
Ink
- Genuine Epson T49M ink bottles: T49M120 Black
- T49M220 Cyan
- T49M320 Magenta
- T49M420 Yellow
- The printer is designed for Epson ink bottles only, not third-party ink. Non-genuine ink can cause damage that Epson's warranty does not cover.
-
Transfer paper
- Epson DS Transfer Multi-Use Paper, 8.5" x 11", 100 sheets (S450361)
- Epson DS Transfer Multi-Use Paper, 8.5" x 14", 100 sheets (S450362)
-
Computer
- Mac or Windows; Epson includes print software for both (supported versions are in the Specifications table)
-
Compatible software
-
Maintenance
- Replacement maintenance tank: 13S210125
Does the F170 work on a Mac?
Yes. Epson includes print software for both Mac and Windows, and the supported versions are listed in the Specifications table below.
Specifications
| Model / part number |
Epson SureColor F170 / C11CJ80201 |
| Print technology |
4-color CMYK dye-sublimation / PrecisionCore Micro TFP printhead / Variable-Sized Droplet Technology |
| Nozzles |
784: 400 black / 128 each cyan, magenta and yellow |
| Maximum resolution |
1200 x 600 dpi |
| Maximum paper size |
8.5" x 47.2" |
| Maximum paper width |
8.5" |
| Maximum printable length |
Depends on your application, operating system and driver or RIP |
| Paper sizes |
3.5" x 5" / 4" x 6" / 5" x 7" / 8" x 10" / 8.5" x 11" / 8.5" x 14" / A4 / A6 / Half letter / Executive / User-defined lengths from 3.5" to 47.2" |
| Minimum sheet width |
3.5" |
| Margins |
3 mm left / 3 mm right |
| Auto-feed capacity |
Up to 150 sheets |
| Ink |
Epson T49M bottles / CMYK / 140 mL per color |
| Display |
2.4" color LCD with buttons |
| Connectivity |
Hi-Speed USB / Wireless 802.11 b/g/n / Wi-Fi Direct / Ethernet 10/100 |
| Operating systems |
Windows 11 / Windows 10 / macOS 10.7 to 15 |
| Dimensions, printing (W x D x H) |
14.8" x 19.8" x 7.4" |
| Dimensions, storage (W x D x H) |
13.7" x 13.7" x 7.4" |
| Weight |
10.2 lb |
| Power |
AC 100 to 240 V universal (automatic) / 50 to 60 Hz |
| Power use |
About 13 W operating / 4.1 W ready / 0.7 W sleep |
| Operating environment |
50 to 95 °F / 20 to 80% relative humidity |
| Sound |
53 dB(A) sound pressure |
| Certifications |
ENERGY STAR qualified / RoHS compliant / Ink is OEKO-TEX ECO PASSPORT certified (NEP 1902) |
| Warranty |
1-year unit exchange |
| Country of origin |
Philippines |
How big can the Epson F170 print?
It takes sheets up to 8.5" wide and up to 47.2" long. That covers the standard sizes from 3.5" x 5" up to 8.5" x 14", plus custom lengths. The longest length you can actually print depends on your software, operating system and driver.
What's Included
- Epson SureColor F170 printer
- Full set of CMYK ink bottles, 140 mL each color (part of this first set is used to initialize the printer)
- AC power cable
- Start Here poster
- User Guide
Warranty & Support
Epson covers the F170 with its standard 1-year unit exchange and toll-free phone support, Monday through Friday.
